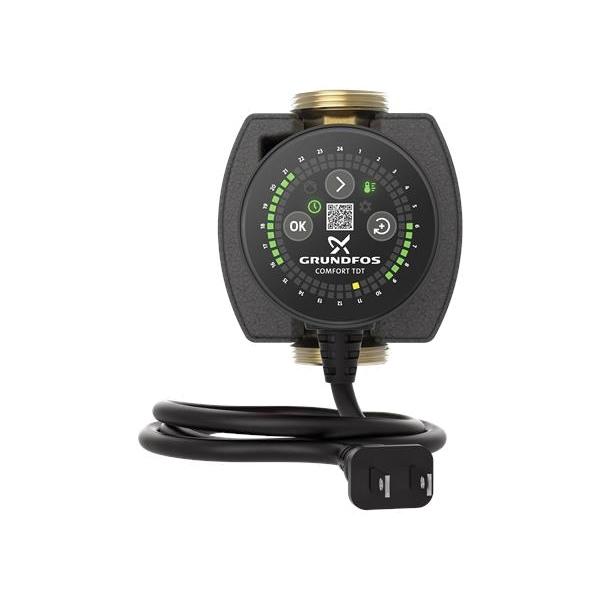

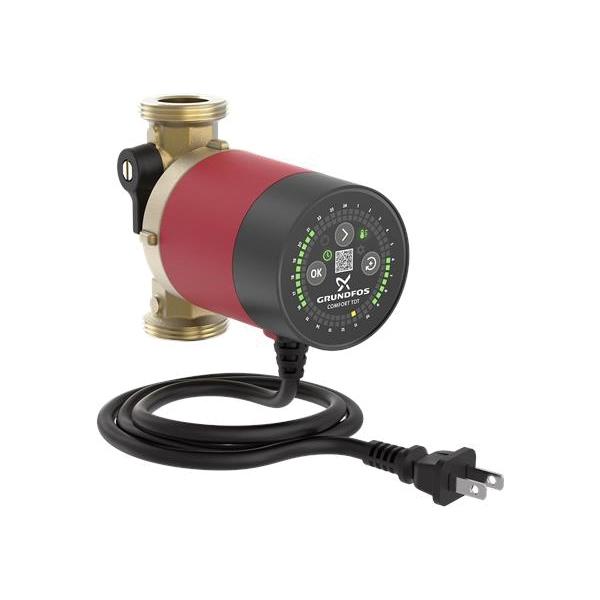

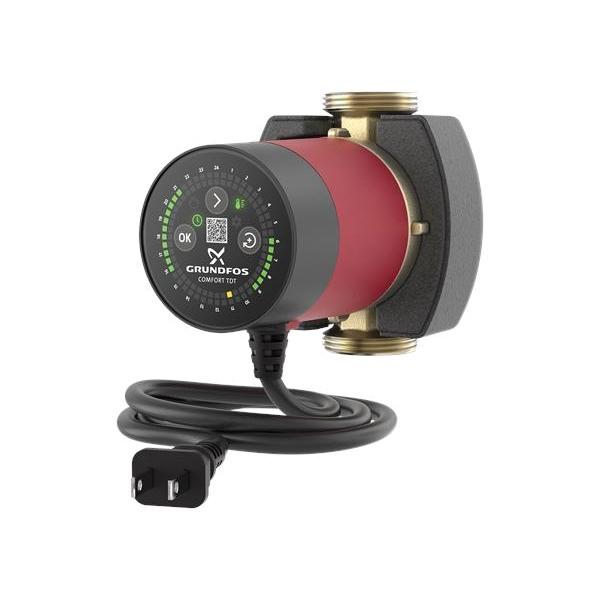

PACO® 10-16 TDT BU/LC 93094713 Circulator Pump, 1.45 gpm, 6 W, 115-230 V, 0.1 A, 60 Hz, 145.05 psi Max Pressure, Brass

COMFORT TDT pumps are efficient circulators designed for hot water recirculation in domestic buildings with a dedicated return line. The pumps are compatible with all types of water heater tanks, tankless systems, solar or heat pumps regardless of whether the system has mixing or tampering valves installed or not. The pump features a compact housing and a permanent magnet with an integrated control unit. The spherical rotor, equipped with an impeller, ensures optimal functionality supported by a robust single-bearing ball system. The drinking water approved brass pump housing guarantees both safety and reliability.

PACO® Circulator Pump, Model: 10-16 TDT BU/LC, 1.45 gpm Flow Rate, 5-1/4 ft Maximum Head, 6 W, 115-230 V, 0.1 A, 60 Hz, 145.05 psi Maximum Pressure, 1-1/4 in Connection, NPSM Connection, 1 ph Phase, 34.9 to 179.6 deg F, IP44 Enclosure, Brass, 3.31 in W, Additional Information: IEC 85 Insulation Class

• QH performance designed for single and multi-family homes, depending on the required-duty point to accommodate for heat losses in specific pipe layout
• Low power consumption and silent operation
• Compliance with pipe manufacturer's flow velocity limit recommendations due to a low operating flow, for 1/2 in and 3/4 in copper or PEX pipes
• Eco brass pump housing and stainless steel rotor that provide safe and reliable operation
• Drinking water approval, enabling the product to meet unlimited water hardness requirement
• A design that makes it easy-to-clean limescale and foreign deposits by removing the pump head
• Dry running protection to prevent failure if system runs out of water
• Multiple installation positions, even with the pump head pointing downwards
• A pump head designed to fit all brass pump housings of the same design from different brands (such as WILO, LOWARA, LAING and VORTEX)
• The design enables easy installation and removes the need to replace the pump housing and drain the system
• Easy installation with included line cord for electrical connection which does not require ground connection in the socket due to the pump having double insulation
• Isolating and check valves for reduced installation cost
• Insulation shell for reduced heat loss
• An optional venting flange, providing a simple way to vent or drain the system without the need for permanently installing an additional venting valve
• Fittings for pipe connections in different sizes and types
