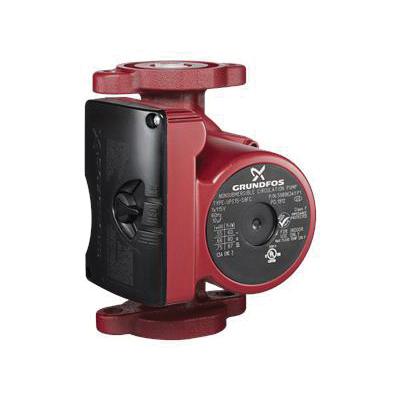

Grundfos Small Stator UP Series UPS 15-58 FRC 59896343 Circulator Pump, 0 to 17 gpm, 87 W, 115 V, 0.55/0.66/0.75 A, Iron
- Manufacturer: Grundfos
- Brand Name: Grundfos
- Part#: GRU59896343
- MPN: 59896343
- UPC: 632514101005
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Grundfos Circulator Pump, Small Stator UP Series, Model: UPS 15-58 FRC, 0 to 17 gpm Flow Rate, 19 ft Maximum Head, 87 W, 115 V, 0.55/0.66/0.75 A, 60 Hz, 145 psi Maximum Pressure, 2450 rpm Motor Speed Rating, 1/25 hp, 1/2 in Connection, Flanged Connection, 1 ph Phase, 2 Poles, 104 deg F Ambient, 230 deg F Liquid, Iron, 6-1/2 in H x 5-1/4 in W, Additional Information: PES Impeller Material
| Additional Information | : | PES Impeller Material |
| Amperage Rating | : | 0.55/0.66/0.75 A |
| Body Material | : | Cast Iron |
| Connection Size | : | 1/2 in |
| Connection Type | : | Flanged |
| Dimensions | : | 6-1/2 in H x 5-1/4 in W |
| Flow Rate | : | 0 to 17 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/25 hp |
| Impeller Material | : | PES |
| Material | : | Iron |
| Maximum Head | : | 19 ft |
| Maximum Pressure | : | 145 psi |
| Model | : | UPS 15-58 FRC |
| Motor Speed Rating | : | 2450 rpm |
| Number of Poles | : | 2 |
| Phase | : | 1 ph |
| Power Rating | : | 87 W |
| Pressure Rating | : | 145 psi Working |
| Series | : | Small Stator UP Series |
| Speed Rating | : | 2450 rpm |
| Temperature Rating | : | 104 deg F Ambient, 230 deg F Liquid |
| Voltage Rating | : | 115 V |
- Built-in motor protection for longer life
- Whisper quiet operation for sound sensitive installations
- Multiple accessories for a variety of applications
- Three speed super brute circulator pump
- Rotated flanged housing
- With integral check valve
Specification Sheet
