Bell & Gossett 104459LF B&G104459LF
  1. pin-int

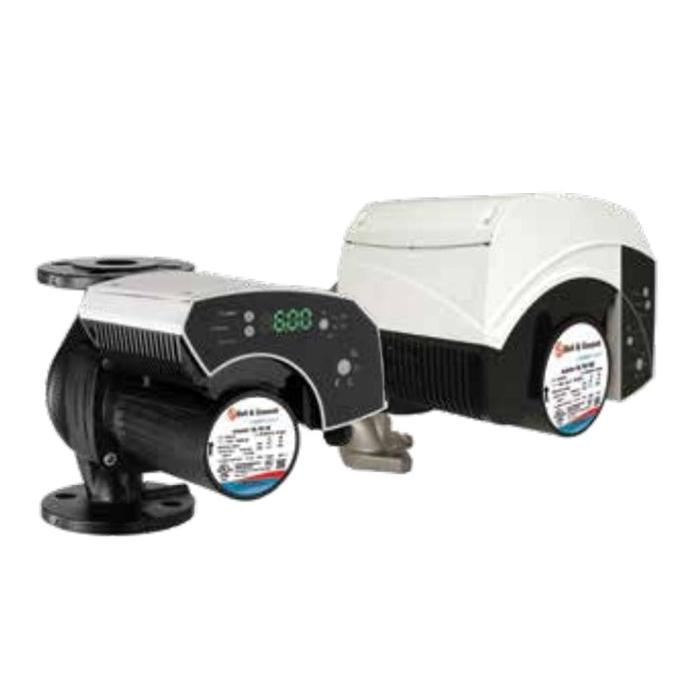

Bell & Gossett ecocirc® XL Ecocirc XL N 65-130 104459LF High Efficiency Large Wet Rotor Circulator With ECM, 45 to 825 W

Bell & Gossett ecocirc® XL Ecocirc XL N 65-130 104459LF High Efficiency Large Wet Rotor Circulator With ECM, 45 to 825 W

  • Manufacturer: Xylem
  • Brand Name: Bell & Gossett
  • Part#: B&G104459LF
  • MPN: 104459LF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The ecocirc XL is a highly efficient circulator that enhances commercial hydronics systems with superior quality and dependability. State-of-the-art hydraulics, advanced motor design, intelligent controls, and smart communication capabilities highlight expert engineering across a broad range of HVAC and plumbing applications.

Bell & Gossett ecocirc® XL High Efficiency Large Wet Rotor Circulator, Model: Ecocirc XL N 65-130, 45 to 825 W, 208 to 230 VAC, 0.5 to 3.5 A, 50/60 Hz, 175 psi Maximum Pressure, 1 HP, 1 in, 1-1/4 in, 1-1/2 in Connection, NPT Connection, 1 ph Phase, 14 to 230 deg F, IP44, NEMA 2 Enclosure, Sleeve Bearing, Stainless Steel, 14.84 in L x 9.53 in W x 11.5 in H

Amperage Rating      :      0.5 to 3.5 A
Bearing Type      :      Sleeve
Connection Size      :      1 in, 1-1/4 in, 1-1/2 in
Connection Type      :      NPT
Dimensions      :      14.84 in L x 9.53 in W x 11.5 in H
Enclosure Type      :      IP44, NEMA 2
Frequency Rating      :      50/60 Hz
HP Rating      :      1 HP
Material      :      Stainless Steel
Maximum Pressure      :      175 psi
Model      :      Ecocirc XL N 65-130
Phase      :      1 ph
Power Rating      :      45 to 825 W
Temperature Rating      :      14 to 230 deg F
Voltage Rating      :      208 to 230 VAC
  • Economical operation - efficient ECM motor, optimized hydraulics, low operational costs
  • Chilled water applications - electronics separated from the pump to prevent condensation, worry-free operation even at 14 deg F
  • User friendly interface - four logically placed buttons, intuitive interface, easy to set and operate
  • Pump protection - built-in dry-run protection, stops pump if no water, prevent damage/repairs
  • High visibility - clear display, large figures and symbols, easy to view pump status
  • More control options - multiple inputs, start-stop temp control, pressure regulation, advanced Modbus or BACnet controls
