ADP® BCRMW6060S001 ASLBCRMW6060S001
  1. pin-int

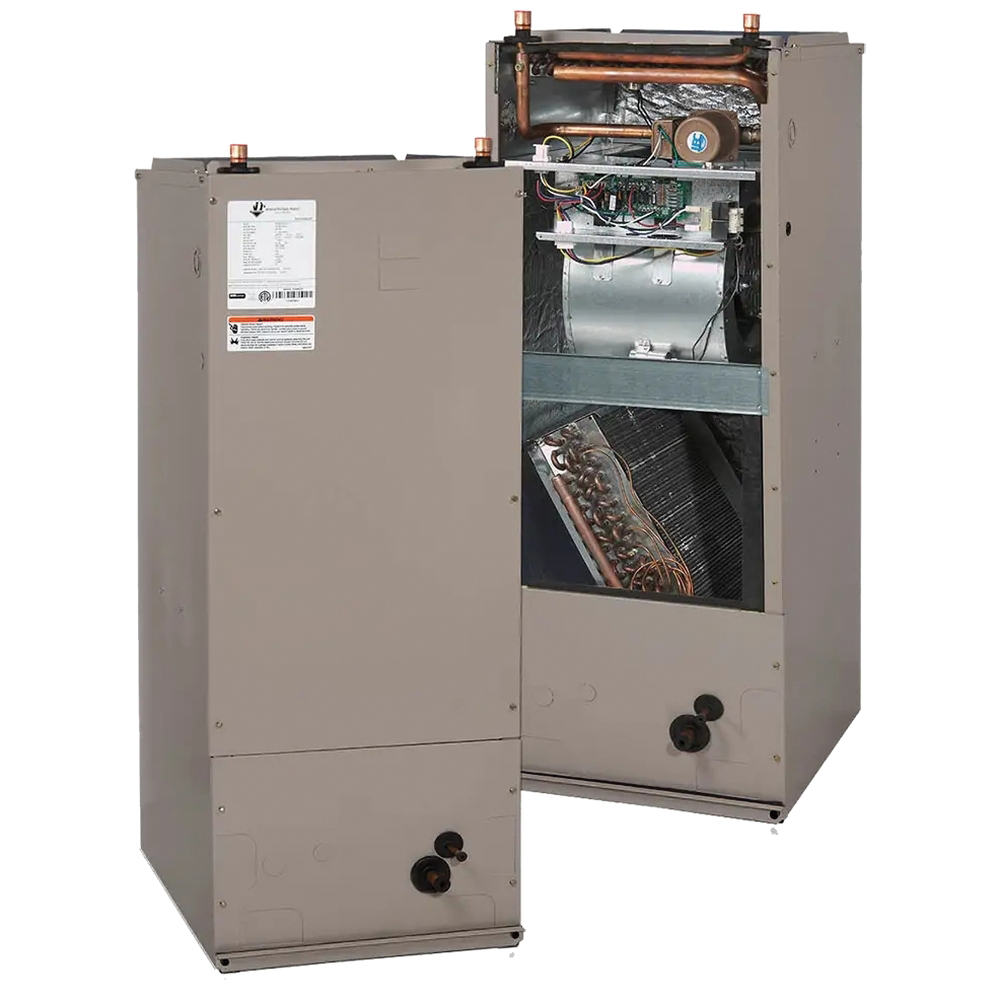

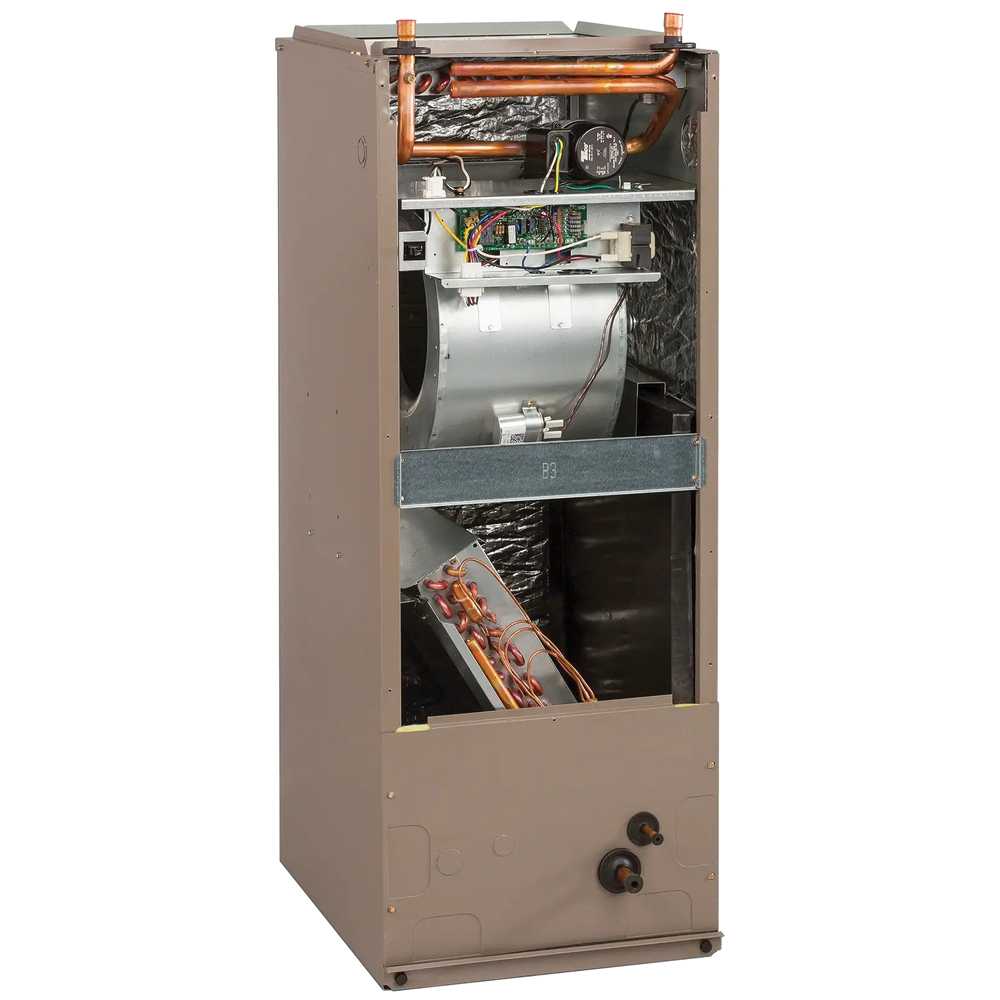

ADP® BCRMW6060S001 Hydronic Air Handler, 208/240 V, 60 Hz, 1 ph, 60000 Btu/hr Output, 2000 cfm Heating

ADP® BCRMW6060S001 Hydronic Air Handler, 208/240 V, 60 Hz, 1 ph, 60000 Btu/hr Output, 2000 cfm Heating

  • Manufacturer: Advanced Distributor Products
  • Brand Name: ADP®
  • Part#: ASLBCRMW6060S001
  • MPN: BCRMW6060S001
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The B Series offers several options for air handler flexibility, including electric or hot water heat, as well as standard or variable-speed motors.

ADP® Hydronic Air Handler, 208/240 V, 3.9 A, 109 A Minimum Circuit, 60 Hz, 1 ph, Output BTU Rating: 60000 Btu/hr, 2000 cfm Heating CFM Rating, 2000 cfm Cooling CFM Rating, 15 A Circuit Breaker, 3-Speed PSC Blower Motor, 1/2 hp Motor HP, 3/8 in Water Inlet, Aluminum/Copper Coil, Multi-Position, Steel Housing, Painted Housing, 26 in Length, 22 in Width, 53 in Height, Right Hand Horizontal Drain Pan, W6 Coil Slab, No Cooling Coil, Stripped Wire Line Voltage Connection, Without Electric Heat, R-32, R-454B Refrigerant Type, Taupe Color, 18 x 24 in Filter Size, 40 VA Transformer Rating

Additional Information      :      Right Hand Horizontal Drain Pan, W6 Coil Slab, No Cooling Coil, Stripped Wire Line Voltage Connection, Without Electric Heat, R-32, R-454B Refrigerant Type, Taupe Color, 18 x 24 in Filter Size, 40 VA Transformer Rating
Amperage Rating      :      3.9 A
Blower Motor Type      :      3-Speed PSC
Circuit Breaker Size      :      15 A
Coil Material      :      Aluminum/Copper
Configuration      :      Multi-Position
Cooling CFM Rating      :      2000 cfm
Frequency Rating      :      60 Hz
Heating CFM Rating      :      2000 cfm
Height      :      53 in
Housing Finish      :      Painted
Housing Material      :      Steel
Length      :      26 in
Minimum Circuit Amperage      :      109 A
Motor HP Rating      :      1/2 hp
Output BTU Rating      :      60000 Btu/hr
Phase      :      1 ph
Voltage Rating      :      208/240 V
Water Inlet Size      :      3/8 in
Width      :      22 in
  • Multi-position, hydronic for northern climates where heat can be supplied by electric or hot water
  • Plug and pay multi-function control board
  • Side return option available on 12-36 BTU/H models
  • Optional variable speed high-efficiency ECM motor for enhanced product performance
  • Optional easy-to-replace hot water kits, available factory or field installed
  • Field configurable for upflow and horizontal left and right
