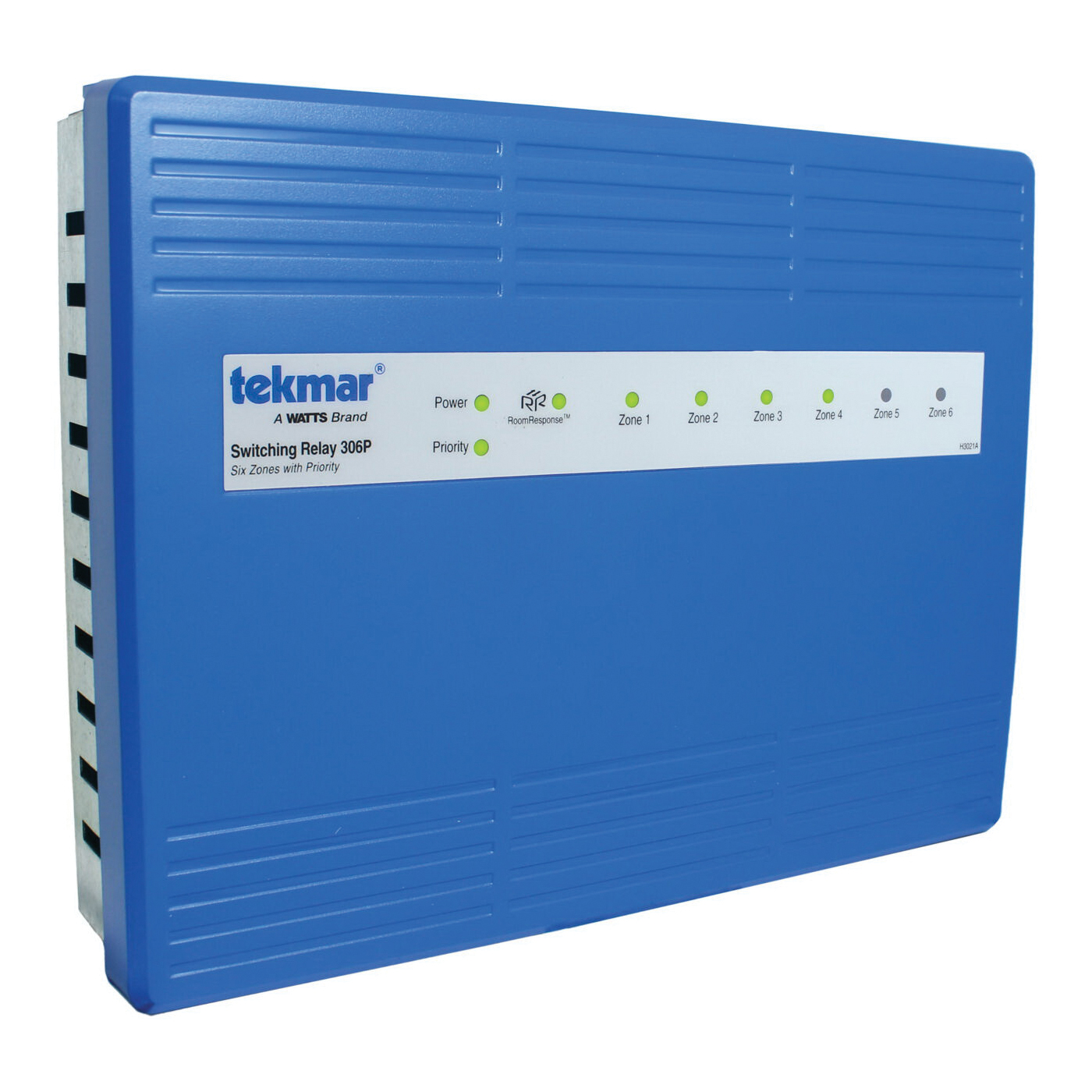

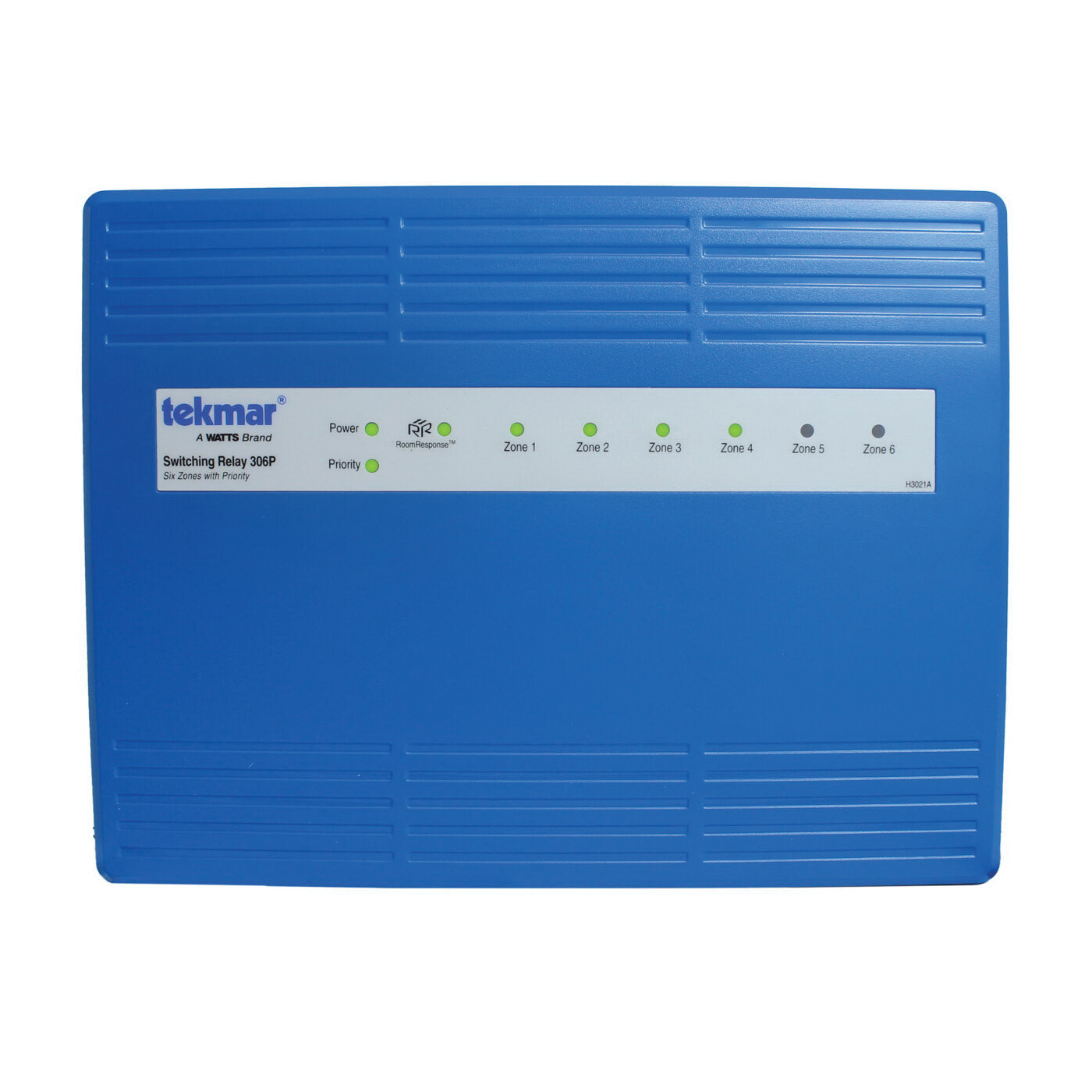

Tekmar® 306P Switching Relay, 115 V, 20 A
- Manufacturer: Watts Water Technologies
- Brand Name: Tekmar®
- Part#: TEK306P
- MPN: 306P
- UPC: 779655030600
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The switching relay 306P connects up to six thermostats and operates circulators to provide heating to a zoned hydronic heating system. Zone 1 has optional priority over zones 2 through 6 and can be used to provide heat to an indirect domestic hot water tank. The 306P includes optional exercising to prevent circulator seizure when not in use and optional post purge operation of the last operating zone to maximize energy savings. The 306P provides a RoomResponse™ signal to modulating condensing boilers to optimize comfort while improving boiler efficiency.
Tekmar® Switching Relay, 115 V, 20 A, 60 Hz, LED Display, NEMA 1 Enclosure, 32 to 122 deg F, 10-11/16 in Overall Width, 8-3/16 in Overall Height, For Use With: Low-Voltage Thermostat
| Amperage Rating | : | 20 A |
| Display Type | : | LED |
| Enclosure Type | : | NEMA 1 |
| Frequency Rating | : | 60 Hz |
| Overall Height | : | 8-3/16 in |
| Overall Width | : | 10-11/16 in |
| Plumbing and Flow Control | : | Plumbing and Flow Control |
| Suitable For Use With | : | Low-Voltage Thermostat |
| Temperature Rating | : | 32 to 122 deg F |
| Voltage Rating | : | 115 V |
- RoomResponse™ signal, compatible with all low voltage thermostats

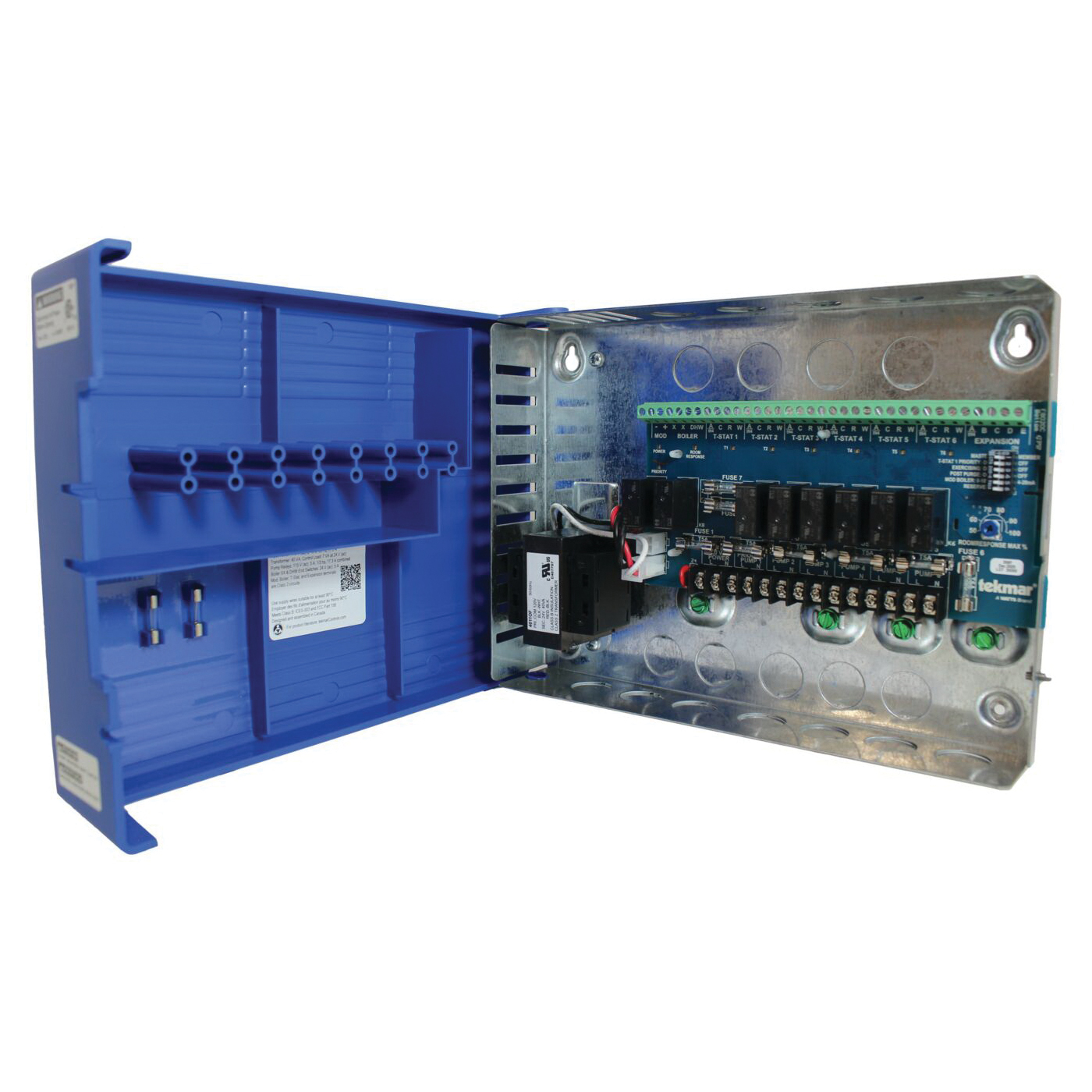

- Top, bottom and back conduit knockouts
- Away signal shared between Tekmar® thermostats, four ground screws
- Post purge, LED for each zone, priority, end switch and RoomResponse™
- Unlimited zone expansion, zone priority
- Priority override, pump exercising
- Fuses protect transformers and pumps
