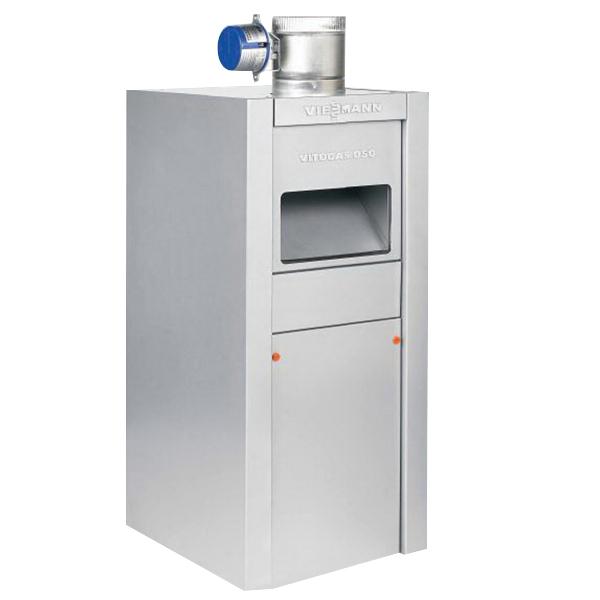

VIESSMANN® ECDS Series VITOGAS 050 GS00171 Gas Fired Water Boiler, 83.5 % AFUE, 80000 Btu/hr BTU, 2.6 gal Capacity
- Manufacturer: Viessmann Manufacturing Company
- Brand Name: VIESSMANN®
- Part#: VIEGS00171
- MPN: GS00171
- UPC: 663117567059
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
VIESSMANN® Gas Fired Water Boiler, ECDS Series, Model: VITOGAS 050, 120 VAC, <12 A, 19 kW Power, 60 Hz Frequency, 83.5 % AFUE, 80000 Btu/hr BTU, 2.6 gal Capacity, 1-1/4 in Male Thread Supply/Return, 1/2 in Male Thread Gas Connection, Liquid Propane Gas, Natural Gas Fuel, Atmospheric (Chimney) Vent, Chimney/Breeching/Vent Size: 5 in Vent Pipe Collar, Electronic Ignition, 14.32 sq-ft Heat Exchanger Area, Cast-Iron, Dimensions: 43 in H x 13-1/2 in W x 19-3/4 in D
| AFUE Rating | : | 83.5 % |
| Amperage Rating | : | <12 A |
| Area | : | 14.32 sq-ft Heat Exchanger |
| BTU Rating | : | 80000 Btu/hr |
| Capacity | : | 2.6 gal |
| Chimney/Breeching/Vent Size | : | 5 in Vent Pipe Collar |
| Connection Type | : | 1-1/4 in Male Thread Supply/Return, 1/2 in Male Thread Gas |
| Dimensions | : | 43 in H x 13-1/2 in W x 19-3/4 in D |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Liquid Propane Gas, Natural Gas |
| Ignition Type | : | Electronic |
| Material | : | Cast-Iron |
| Model | : | VITOGAS 050 |
| Power Rating | : | 19 kW |
| Series | : | ECDS Series |
| Vent Type | : | Atmospheric (Chimney) |
| Voltage Rating | : | 120 VAC |
- Extremely durable gray cast iron heat exchanger for maximum operational reliability and service life
- Efficient combustion and quiet operation with large diameter, stainless steel burners
- Integrated draft hood and vent damper for vertical chimney venting
- Integrated pump aquastat protects against corrosive flue gas condensation, extending service life of boiler
- Compact, lightweight design and minimal clearances allow installation in difficult-to-access boiler rooms, even alcoves or closets
- 1-1/2 in Thick insulation reduces stand-by heat losses
- Spacious, wet-base water walls prevent deposits, reduce stress and increase boiler life
- Boiler can be-mounted on top of a horizontal Vitocell hot water storage tank for increased versatility and space-efficiency
- More overall comfort, savings and reliability with added Viessmann vitocell indirect-fired DHW tank
- 14 in WC maximum gas supply pressure
- 50 lbf/sq-in maximum operating pressure
- Intermittent pilot electronic ignition system and vent damper
- 3-section, 2-burners
