VIESSMANN® B1HA Series B1HA 35, 125 B1HA-281 Condensing Boiler, 95 % AFUE, 21000 to 125000 Btu/hr BTU, 120/240 VAC
- Manufacturer: Viessmann Manufacturing Company
- Brand Name: VIESSMANN®
- Part#: VIEB1HA281
- MPN: B1HA-281
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

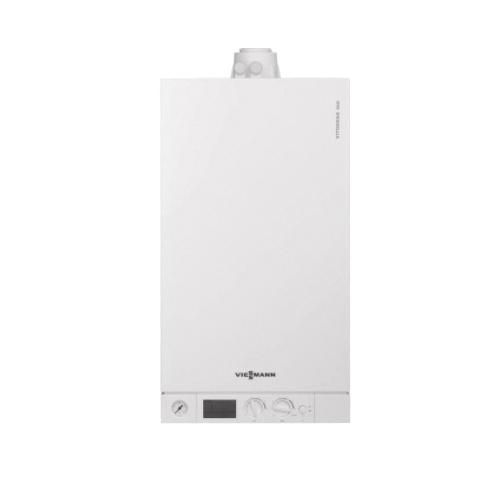

Vitodens 100-W is a gas fired, wall-mounted condensing boiler with Matrix cylinder burner and Inox-Radial heat exchanger made of stainless steel. Rated input 21 to 125 mbh.
VIESSMANN® Condensing Boiler, B1HA Series, Model: B1HA 35, 125, 120/240 VAC, 12 A, 6.2 to 36.6 kW Power, 60 Hz Frequency, 1 ph, 95 % AFUE, 21000 to 125000 Btu/hr BTU, 21 to 125 mbh Capacity, 6.2 gpm Flow Rate, 45 psig Pressure, MNPT x FNPT Connection, Liquid Propane Gas, Natural Gas Fuel, Direct Vent, Matrix Cylinder Burner, 2-3/8 in Diameter Flue, Noise Rating: 51.6 dB, Number of Boilers: 1, 12.96 sq-ft Area, Wall Mounting, Stainless Steel, 210 deg F, Dimensions: 30-1/4 in H x 15-3/4 in W x 15-3/4 in D
| AFUE Rating | : | 95 % |
| Amperage Rating | : | 12 A |
| Area | : | 12.96 sq-ft |
| BTU Rating | : | 21000 to 125000 Btu/hr |
| Burner Type | : | Matrix Cylinder |
| Capacity | : | 21 to 125 mbh |
| Connection Type | : | MNPT x FNPT |
| Dimensions | : | 30-1/4 in H x 15-3/4 in W x 15-3/4 in D |
| Flow Rate | : | 6.2 gpm |
| Flue Diameter | : | 2-3/8 in |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Liquid Propane Gas, Natural Gas |
| Material | : | Stainless Steel |
| Model | : | B1HA 35, 125 |
| Mounting Type | : | Wall |
| Noise Rating | : | 51.6 dB |
| Number of Boilers | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 6.2 to 36.6 kW |
| Pressure Rating | : | 45 psig |
| Series | : | B1HA Series |
| Temperature Rating | : | 210 deg F |
| Vent Type | : | Direct |
| Voltage Rating | : | 120/240 VAC |
- Fits any home and budget with high performance at an attractive price
- Lasting performance with proven VIESSMANN® titanium stabilized stainless steel Inox-Radial heat exchanger
- Built-in on demand domestic hot water with Vitodens 100 W, B1KA combi boiler
- Suitable for altitude levels of up to 10000 ft
- Outstanding efficiency of 95% AFUE on all models
- Low emission combustion for environmentally friendly operation
- Fully modulating input eliminates energy waste
- Extremely quiet operation, quieter than most refrigerators
- LCD touch screen
- Four pipe connection design
- Built-in pump and diverter valve
