NTI TFT285 TFT285
  1. pin-int

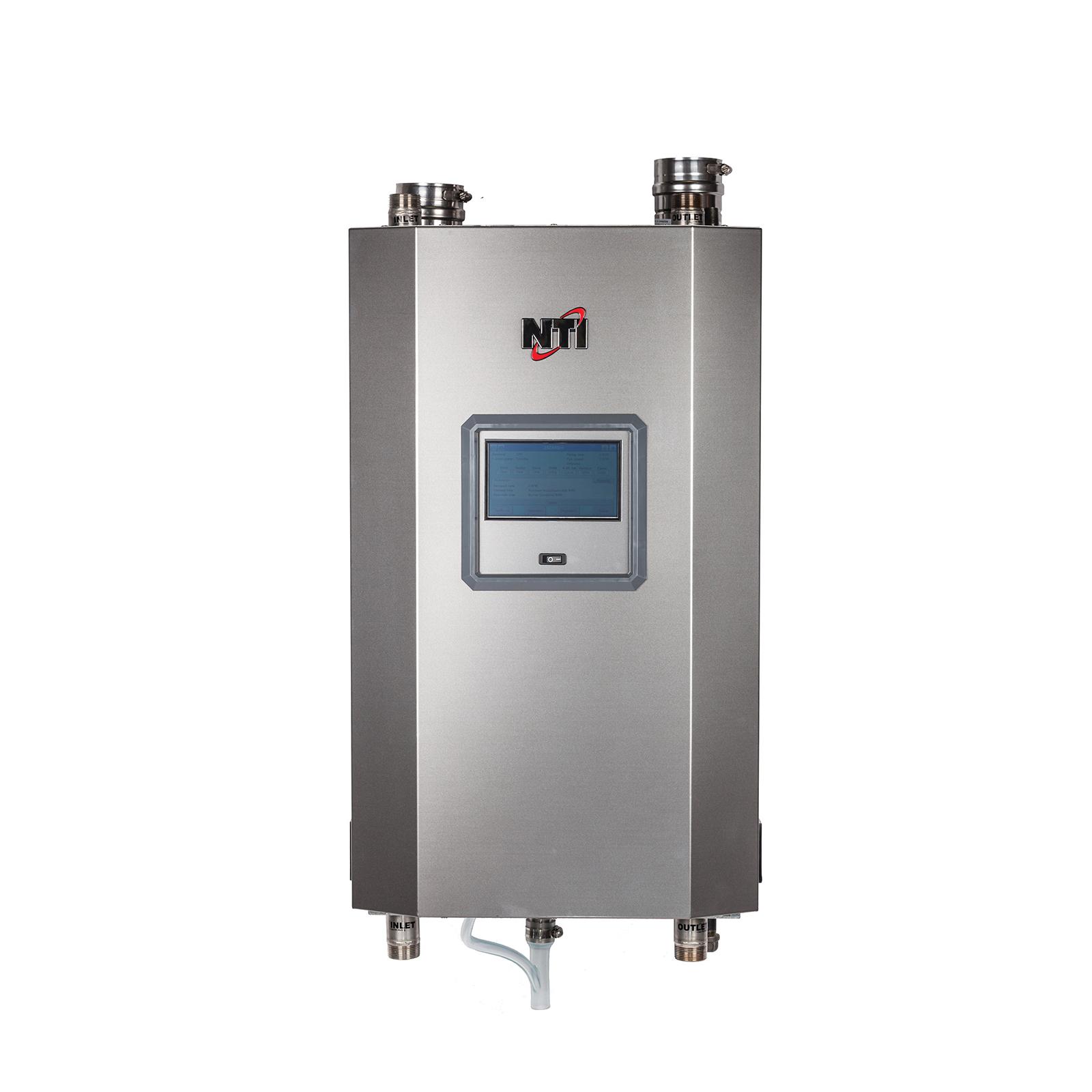

NTI TFT285 Condensing Boiler, 95 % AFUE, 28.5 to 285 MBtu/hr BTU, 263 mbh Capacity, 120 VAC, 1 ph Phase, MNPT

NTI TFT285 Condensing Boiler, 95 % AFUE, 28.5 to 285 MBtu/hr BTU, 263 mbh Capacity, 120 VAC, 1 ph Phase, MNPT

  • Manufacturer: NTI Boilers
  • Brand Name: NTI
  • Part#: TFT285
  • MPN: TFT285
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The TFT is the top quality choice for both residential or light commercial applications. The high-performance stainless steel down-fired fire tube heat exchanger and the top and bottom stainless steel piping connections, offer supreme durability and flexibility of installation. The TFT reigns supreme with its unique mix of outstanding performances and legendary reliability.

NTI Condensing Boiler, 120 VAC, 12 A, 60 Hz Frequency, 1 ph, 95 % AFUE, 28.5 to 285 MBtu/hr BTU, 263 mbh Capacity, 80 psi Pressure, MNPT Connection, Natural Gas Fuel, Direct Vent, Modulating Burner, Chimney/Breeching/Vent Size: 3 in, 263 mbh DOE Heating, 3 in Flue Outlet, Direct Spark Ignition, 228 mbh Net IBR, Floor, Wall Mounting, Stainless Steel, Dimensions: 33-3/8 in H x 21-1/4 in W x 18-7/8 in D

AFUE Rating      :      95 %
Amperage Rating      :      12 A
BTU Rating      :      28.5 to 285 MBtu/hr
Burner Type      :      Modulating
Capacity      :      263 mbh
Chimney/Breeching/Vent Size      :      3 in
Connection Type      :      MNPT
DOE Heating Capacity      :      263 mbh
Dimensions      :      33-3/8 in H x 21-1/4 in W x 18-7/8 in D
Flue Outlet Size      :      3 in
Frequency Rating      :      60 Hz
Fuel Type      :      Natural Gas
Ignition Type      :      Direct Spark
Material      :      Stainless Steel
Mounting Type      :      Floor, Wall
Net IBR Rating      :      228 mbh
Phase      :      1 ph
Pressure Rating      :      80 psi
Vent Type      :      Direct
Voltage Rating      :      120 VAC
  • Touch screen intuitive display

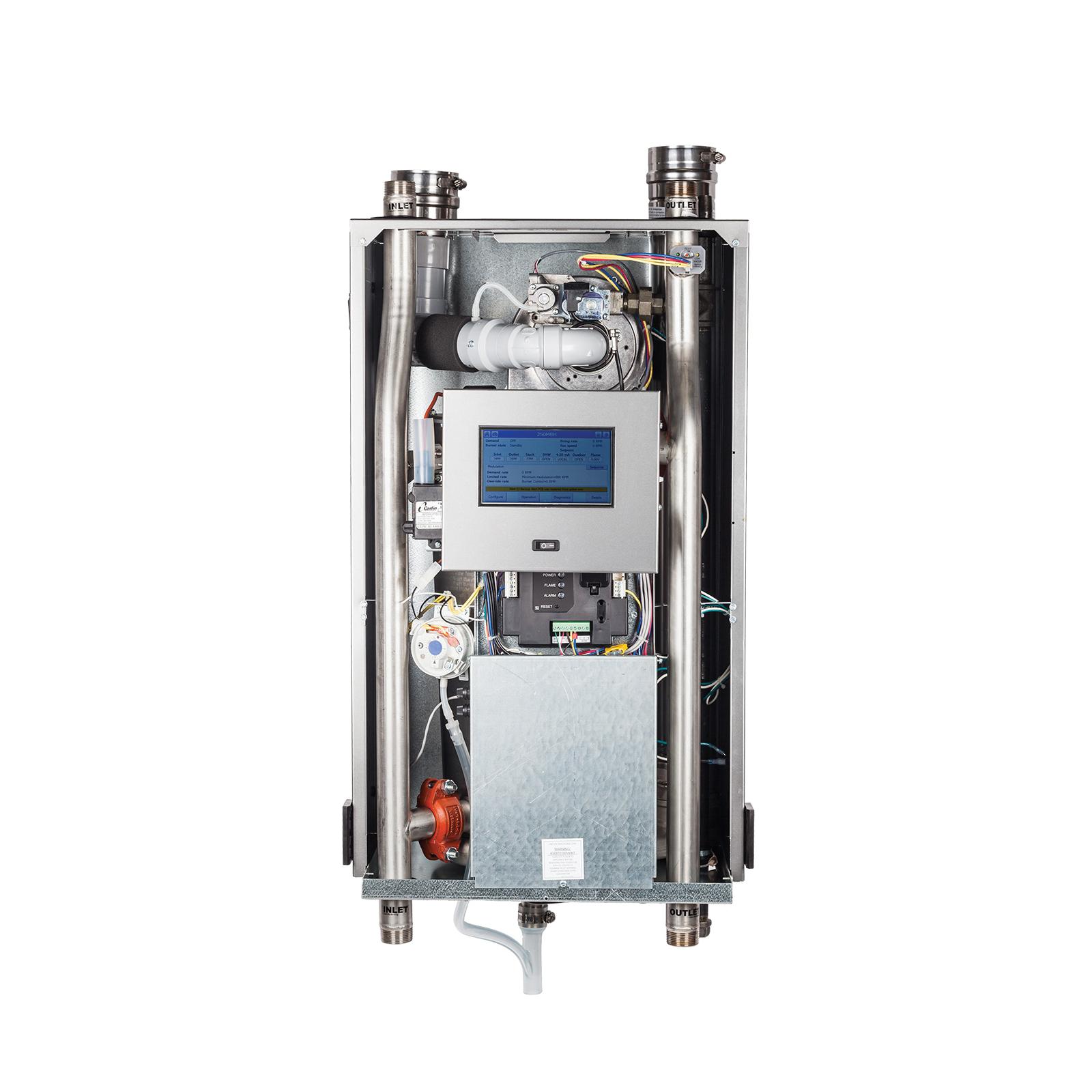

  • High-performance fire tube stainless steel heat exchanger
  • Integrated low water cut-off
  • Stainless steel internal piping and venting
  • Top and bottom water connections
  • Advanced cascade settings
  • Vents in PVC, CPVC or poly propylene
  • Field conversion from natural gas (factory) to propane
  • Modulating burner, 5:1 turndown
  • Zero clearance to combustibles
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/NTI_TFT85_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/NTI_TFT85_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/NTI_TFT285_Specification_Sheet.pdf
  • pdfWarranty Information https://assets.unilogcorp.com/267/ITEM/DOC/NTI_TFT85_Warranty_Information.pdf
