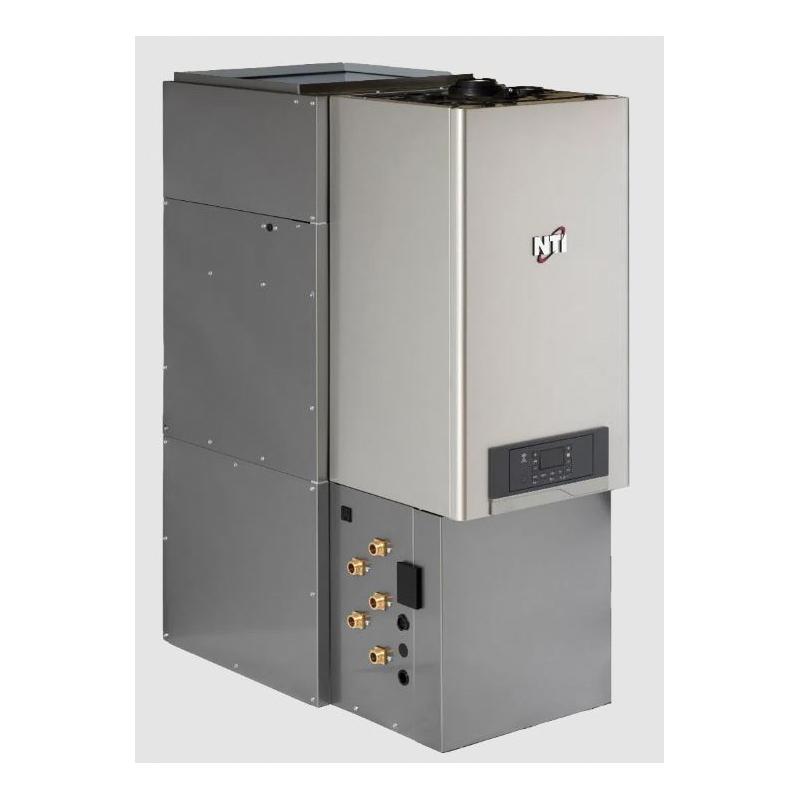

NTI GF150 Combination Boiler, 95 % AFUE, 13.2 to 150 mbh BTU, 120 V, 1 ph -Phase, Natural Gas, Liquid Propane Gas Fuel
- Manufacturer: NTI Boilers
- Brand Name: NTI
- Part#: NTIGF150
- MPN: GF150
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The GF150 is a merging of our TRX combi boiler with a high efficiency air handler to provide forced air heating, domestic hot water and hydronic capabilities. Thus, offering an All-in-One solution for the future of hot water, heating and comfort for your home.
NTI Combination Boiler, 120 V, 15 A, 60 Hz, 1 ph Phase, 95 % AFUE Rating, 13.2 to 150 mbh, 3.6 gpm Flow Rate, 55 psi, 125 psi, MNPT Connection, Natural Gas, Liquid Propane Gas Fuel, Direct Vent, Modulating Burner, 300 to 1200 cfm Heating, 360 to 1200 cfm Cooling, Chimney/Breeching/Vent Size: 2 in, 3 in, 13.2 to 120 mbh DOE Heating Capacity, Transformer Ignition System, Direct Electronic Spark Ignition, 97 mbh Net BTU Rating, Carbon Steel, 115 to 160 deg F, 46.64 in H x 17.86 in W x 35.69 in D, Additional Information: 3/4 in Gas Connection, 3/4 in Water Connection, 13.2 to 80 mbh Forced-Air Heating, 3 ton Cooling Capcity
| AFUE Rating | : | 95 % |
| Additional Information | : | 3/4 in Gas Connection, 3/4 in Water Connection, 13.2 to 80 mbh Forced-Air Heating, 3 ton Cooling Capcity |
| Amperage Rating | : | 15 A |
| BTU Rating | : | 13.2 to 150 mbh |
| Burner Type | : | Modulating |
| CFM Rating | : | 300 to 1200 cfm Heating, 360 to 1200 cfm Cooling |
| Chimney/Breeching/Vent Size | : | 2 in, 3 in |
| Connection Type | : | MNPT |
| DOE Heating Capacity | : | 13.2 to 120 mbh |
| Dimensions | : | 46.64 in H x 17.86 in W x 35.69 in D |
| Flow Rate | : | 3.6 gpm |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas, Liquid Propane Gas |
| Ignition System | : | Transformer |
| Ignition Type | : | Direct Electronic Spark |
| Material | : | Carbon Steel |
| Net BTU Rating | : | 97 mbh |
| Phase | : | 1 ph |
| Pressure Rating | : | 55 psi, 125 psi |
| Temperature Rating | : | 115 to 160 deg F |
| Vent Type | : | Direct |
| Voltage Rating | : | 120 V |
- Saves floor space - occupies 1/2 the space of a conventional system
- Built-in expansion tank (sufficient for installs without hydronic loops)
- Built-in manual fill valve
- Dual left/right side reversible DHW and gas connections for optimal installation flexibility
