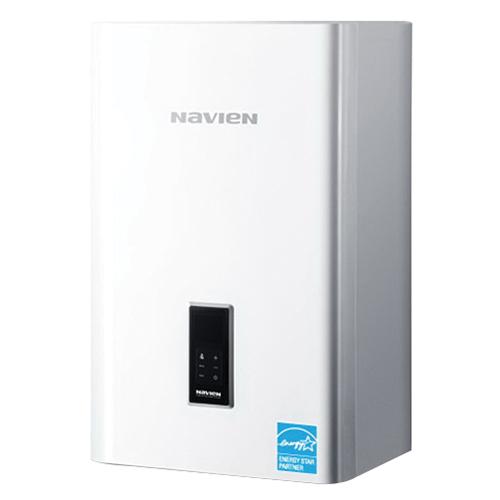

Navien NCB Series NCB-180 Gas Fired Water Boiler, 95 % AFUE, 120 VAC, Liquid Propane Gas, Natural Gas Fuel
- Manufacturer: NAVIEN INC
- Brand Name: Navien
- Part#: NAVNCB-180
- MPN: NCB-180
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Navien NCB is the first high efficiency tankless condensing combination boiler with the capacity to supply both heat and domestic hot water for larger homes - enough hydronic heat for a whole house, plus hot water to run 2 showers and a dishwasher all at the same time. The Navien NCB saves installation time and reduces call backs. In addition, the NCB takes up 80% less space than a traditional floor standing boiler and tank water heater.
Navien Gas Fired Water Boiler, NCB Series, 120 VAC, 200 W Power, 60 Hz Frequency, 95 % AFUE, 14000 to 80000 Btu/hr Space, 14000 to 150000 Btu/hr Domestic Hot Water BTU, 3.4 gpm Flow Rate, 12 to 30 psi, 15 to 150 psi (Hydronic/DHW) Water, 3.5 to 10.5 in-WC Natural Gas Supply, 8 to 13.5 in-WC Propane Gas Supply Pressure, 1 in NPT Supply/Return, 3/4 in NPT Gas Connection, Liquid Propane Gas, Natural Gas Fuel, Forced Draft Direct Vent, Chimney/Breeching/Vent Size: 2 in, Electronic Ignition, Net BTU Rating: 65 MBtu/hr, Wall Hung Mounting, Cold Rolled Carbon Steel, Dimensions: 28 in H x 17 in W x 12 in D
| AFUE Rating | : | 95 % |
| BTU Rating | : | 14000 to 80000 Btu/hr Space, 14000 to 150000 Btu/hr Domestic Hot Water |
| Chimney/Breeching/Vent Size | : | 2 in |
| Connection Type | : | 1 in NPT Supply/Return, 3/4 in NPT Gas |
| Dimensions | : | 28 in H x 17 in W x 12 in D |
| Flow Rate | : | 3.4 gpm |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Liquid Propane Gas, Natural Gas |
| Ignition Type | : | Electronic |
| Material | : | Cold Rolled Carbon Steel |
| Mounting Type | : | Wall Hung |
| Net BTU Rating | : | 65 MBtu/hr |
| Power Rating | : | 200 W |
| Pressure Rating | : | 12 to 30 psi, 15 to 150 psi (Hydronic/DHW) Water, 3.5 to 10.5 in-WC Natural Gas Supply, 8 to 13.5 in-WC Propane Gas Supply |
| Series | : | NCB Series |
| Vent Type | : | Forced Draft Direct |
| Voltage Rating | : | 120 VAC |
- Navien condensing technology offers the high efficiency
- Money and energy savings over tank type water heaters and traditional water heaters
- Provides longer life expectancy as they are highly-resistant to corrosion and erosion compared to copper heat exchangers
- Reduces minerals deposits
- New metal fiber burner is designed to deliver a consistent air/gas mixture improving combustion efficiency
- Result in less acid rain and less green house effect
- The negative pressure gas valve and fan with dual venturi operation allows for better adaptability to low gas pressure applications
- NCB models allow for easy convertibility from NG to LP
- Heats water when needed, making it environmentally sound as well as cost efficient
- Offers silent heating because no blowers are needed for forced circulation
- Radiant heat in the floors can transmit warmonths throughout the house hrs after turning off the heater
- Automatically fills water into space heating pipes when the unit senses a water shortage
- The Combi's built-in control system is designed to keep the unit's plumbing frost free in winter conditions
- Stainless steel heat exchanger
