LAARS® MFTHW199NA2XN LARMFTHW199NA2XN
  1. pin-int

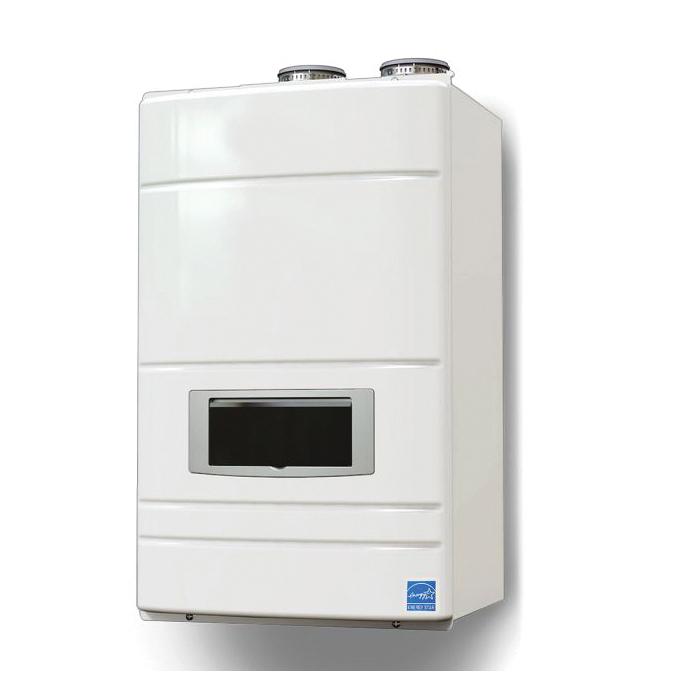

LAARS® MASCOT® FT MFTHW Series MFTHW199 MFTHW199NA2XN Hydronic Boiler, 95 % AFUE, 199000 Btu/hr BTU, 120 V, 1 ph-Phase

LAARS® MASCOT® FT MFTHW Series MFTHW199 MFTHW199NA2XN Hydronic Boiler, 95 % AFUE, 199000 Btu/hr BTU, 120 V, 1 ph-Phase

  • Manufacturer: Bradford White Corporation
  • Brand Name: LAARS®
  • Part#: LARMFTHW199NA2XN
  • MPN: MFTHW199NA2XN
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

LAARS® MASCOT® FT Hydronic Boiler, MFTHW Series, Model: MFTHW199, 120 V, 4 A, 58 kW, 1 ph Phase, 95 % AFUE Rating, 199000 Btu/hr, 30 psi, NPT Connection, Natural Gas Fuel, Direct Vent, Pre-Mixed Ceramic Fibre Burner, Chimney/Breeching/Vent Size: 3 in, 189050 Btu/hr DOE Heating Capacity, Direct Spark Ignition, Wall Mounting, 32 in H x 19.6 in W x 16.2 in D, Additional Information: 3/4 in Gas Connection Size, 1-1/4 in Heating Supply/Return Connection Size

AFUE Rating      :      95 %
Additional Information      :      3/4 in Gas Connection Size, 1-1/4 in Heating Supply/Return Connection Size
Amperage Rating      :      4 A
BTU Rating      :      199000 Btu/hr
Burner Type      :      Pre-Mixed Ceramic Fibre
Chimney/Breeching/Vent Size      :      3 in
Connection Type      :      NPT
DOE Heating Capacity      :      189050 Btu/hr
Dimensions      :      32 in H x 19.6 in W x 16.2 in D
Fuel Type      :      Natural Gas
Ignition Type      :      Direct Spark
Model      :      MFTHW199
Mounting Type      :      Wall
Phase      :      1 ph
Power Rating      :      58 kW
Pressure Rating      :      30 psi
Series      :      MFTHW Series
Vent Type      :      Direct
Voltage Rating      :      120 V
  • High condensing efficiency. 95% AFUE
  • Low pressure drop, fire tube heat exchanger design
  • Full modulation 199MBH: 100% down to 10% of full fire(10:1 turndown)
  • Sealed combustion chamber
  • Pre-mix ceramic fiber burner
  • Low NOx system exceeds the most stringent regulations for air quality - 17ppm NOx
  • Horizontal or vertical direct vent
  • Vent and air pipe lengths of up to 100 equivalent feet (each)
  • Stainless steel heat exchanger with finned aluminum core fire tubes, welded construction
  • ASME 30 psi (207kPa) working pressure heat exchanger Standard Equipment
  • ASME "H" stamp
  • Vent with PVC, CPVC or Polypropolene
  • Natural gas or propane
  • 30 psi (207kPa) ASME pressure relief valve
  • Gas leak detection
  • Boiler pump wired and mounted inside jacket
  • Built-in condensate trap and drain, priming not required
  • Automatic air vent
  • Pressure gauge
  • Boiler water pressure switch
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/LAARS_MFTHW199NA2XN_Specification_Sheet.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/LAARS_MFTHW199NA2XN_Specification_Sheet.pdf
