Caleffi NA545306 CFINA545306
  1. pin-int

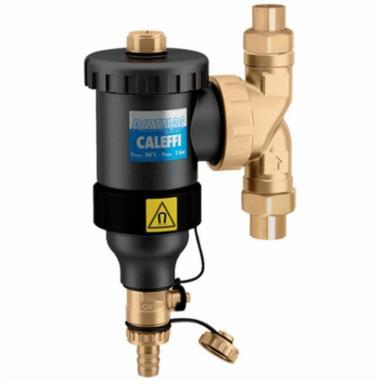

Caleffi DIRTMAG® NA545306 Dirt Separator, 1 in, MNPT Union, 30 % Max Percentage of Glycol, 5 um Particle Separation

Caleffi DIRTMAG® NA545306 Dirt Separator, 1 in, MNPT Union, 30 % Max Percentage of Glycol, 5 um Particle Separation

  • Manufacturer: Caleffi
  • Brand Name: Caleffi
  • Part#: CFINA545306
  • MPN: NA545306
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Caleffi DIRTMAG® Dirt Separator, 1 in Nominal, MNPT Union Connection, 45 psi, 32 to 195 deg F, Glycol Solution, Water Suitable Media, 30 % Maximum Percentage of Glycol, 5 um Particle Separation Capacity, Brass

Connection Type      :      MNPT Union
Material      :      Brass
Maximum Percentage of Glycol      :      30 %
Nominal Size      :      1 in
Particle Separation Capacity      :      5 um
Pressure Rating      :      45 psi
Suitable Media      :      Glycol Solution, Water
Temperature Rating      :      32 to 195 deg F
  • Brass mounting housing
  • Composite PA66G30 body
  • Can be rotated for installation to accommodate either vertical or horizontal pipes while maintaining the same operating performance
  • Ferrous impurities separation efficiency up to 100% removal
  • Drain valve with hose connection
  • Top dosing point port
  • 12 fl-oz dosing capacity
  • Manual screw air vent
  • The DIRTMAG® removes both ferrous and non-ferrous impurities continuously in a sealed hydronic heating and cooling system
  • A removable magnetic ring and large drain valve make the DIRTMAG® quick and easy to flush collected dirt and ferrous impurities, including magnetite
  • A large low velocity zone dirt collection chamber reduces the frequency of cleaning, which can also be done while the system is operating
  • A powerful removable external magnetic ring attracts ferrous impurities with 2.5X the removal performance of a standard dirt separator
  • DIRTMAG® will separate dirt particles down to 5 um and up to 100% of ferrous impurities, including magnetite, during multiple passes of system fluid
  • This multi-function device, with isolating valves, can also be used as a dosing point to inject chemical additives into the hydronic circuit
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Caleffi_NA545306_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Caleffi_NA545306_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/X22askTCsOw?list=PLuuV0ELkYb5WsW1KexVpvUzpgDEV15DBj
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Caleffi_NA545306_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Caleffi_NA545306_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/X22askTCsOw?list=PLuuV0ELkYb5WsW1KexVpvUzpgDEV15DBj
