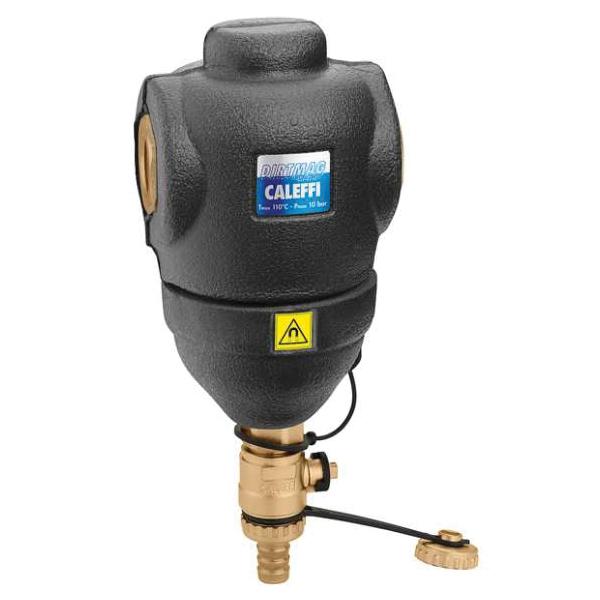

Caleffi 5463 Series 546354A DirtMag Dirt Separator With Magnet, 2 in, Sweat, Brass
- Manufacturer: Caleffi
- Brand Name: Caleffi
- Part#: CFI546354A
- MPN: 546354A
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Caleffi DirtMag Dirt Separator With Magnet, 5463 Series, 2 in Nominal, Sweat Connection, 150 psi, 32 to 250 deg F, Brass, 6-1/8 in Dia x 9-1/4 in H
| Connection Type | : | Sweat |
| Dimensions | : | 6-1/8 in Dia x 9-1/4 in H |
| Material | : | Brass |
| Nominal Size | : | 2 in |
| Pressure Rating | : | 150 psi |
| Series | : | 5463 Series |
| Temperature Rating | : | 32 to 250 deg F |
- The DIRTMAG® removes both ferrous and non-ferrous impurities continuously in a sealed hydronic heating and cooling system
- A large brass body low velocity chamber reduces the frequency of cleaning, which can also be done while the system is in operation
- A removable magnetic ring and large drain valve make the DIRTMAG® quick and easy to flush collected dirt and ferrous impurities, including magnetite
- A powerful removable external magnetic ring attracts ferrous impurities with 2-1/2 times the removal performance of a standard dirt separator
- DIRTMAG® will separate dirt particles down to 5 um (0.2 mil) and upto 100% of ferrous impurities during multiple passes of system fluid
- Low head losses reduces pumping demands compared to typical Y-strainers
Specification Sheet
