Tekmar® 563 TEK563
  1. pin-int

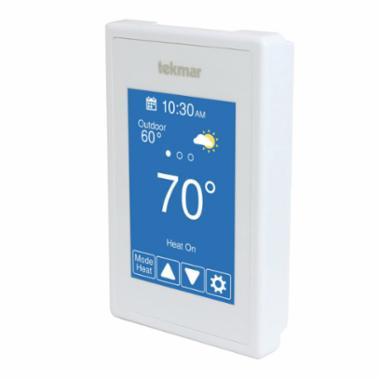

Tekmar® 563 Wi-Fi Thermostat, 15-30 VAC/VDC, 2 A, 2 VA, Color Touchscreen Display, Sensing Element: NTC Thermistor

Tekmar® 563 Wi-Fi Thermostat, 15-30 VAC/VDC, 2 A, 2 VA, Color Touchscreen Display, Sensing Element: NTC Thermistor

  • Manufacturer: Watts Water Technologies
  • Brand Name: Tekmar®
  • Part#: TEK563
  • MPN: 563
  • UPC: 779655056303
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The Wi-Fi Thermostat 563 operates either a multi-stage conventional or heat pump HVAC system, a fan and up to two accessories, including a humidifier, dehumidifier and ventilator. When connected to the Internet, the WATTS® Home mobile allows the thermostat to be controlled remotely. A 7-day, 4-event programmable schedule is available and the early start feature automatically learns to heat up the room by the scheduled time. An Away mode is quickly and easily accessed to provide energy savings when the space is unoccupied. An optional floor sensor can be installed to enhance comfort and protect floor coverings when operating Radiant™ floor systems.

Tekmar® Wi-Fi Thermostat, 15-30 VAC/VDC, 2 A, 2 VA, White, 0 to 90 % Humidity Rating, Color Touchscreen Display, 2.4 GHz, NTC Thermistor Sensing Element, 4 Stages, 7 days Programmability, 32 to 122 deg F, 4-5/8 in H x 3 in W x 15/16 in D

Amperage Rating      :      2 A
Color      :      White
Dimensions      :      4-5/8 in H x 3 in W x 15/16 in D
Display Type      :      Color Touchscreen
Frequency Rating      :      2.4 GHz
Humidity Rating      :      0 to 90 %
Plumbing and Flow Control      :      Plumbing and Flow Control
Power Rating      :      2 VA
Programmability      :      7 days
Sensing Element      :      NTC Thermistor
Stages      :      4
Temperature Rating      :      32 to 122 deg F
Voltage Rating      :      15-30 VAC/VDC
  • Supports dual fuel systems
  • Email error and warning notifications, automatic time clock
  • Accessory options: humidifier, dehumidifier, HRV/ERV ventilator, water-source heat pump loop valve
  • Energy monitoring, multiple background colors
  • Humidifier window frost protection, conventional systems - two-stage heating, two-stage cooling, fan and two accessories
  • 7 days programmable schedule, early start
  • Mobile and web app for remote control, away energy savings mode
  • Heat pump systems four-stage heating, two-stage cooling, fan, reversing valve and one accessory
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Tekmar_563_Instruction_Installation_Manual.pdf
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Tekmar_563_Owners_User_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Tekmar_563_Specification_Sheet.pdf
  • linkVideo Link https://wattsdev.azureedge.net/Dmm3BWSV3/assetstream.aspx?assetid=60002&mediaformatid=50040&destinationid=10010&accesskey=e2b94004-998e-4134-a957-fdfeeaff9d1b
