resideo Q340A1090/U HNWQ340A1090/U
  1. pin-int

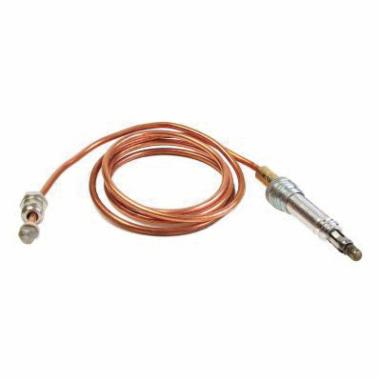

resideo Q340A1090/U Thermocouple, 1400 deg F

resideo Q340A1090/U Thermocouple, 1400 deg F

  • Manufacturer: Resideo Technologies Inc
  • Brand Name: resideo
  • Part#: HNWQ340A1090/U
  • MPN: Q340A1090/U
  • UPC: 085267067430
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The Q340A thermocouples sense the pilot flame on standing pilot gas fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base to generate 30 mV.

resideo Thermocouple, 11/32 in Connection, Male Nut Connection, 30 mV, 32 mV Open Circuit Output, 0.02 Ohm Resistance, 36 in Lead Length, 1400 deg F

Connection Size      :      11/32 in
Connection Type      :      Male Nut
Lead Length      :      36 in
Open Circuit Output      :      32 mV
Resistance      :      0.02 Ohm
Temperature Rating      :      1400 deg F
Voltage Rating      :      30 mV
  • Push-in clip, split nut or adapter assembly available for easy pilot burner installation
  • Male nut connector for Pilotstat® safety control power units
