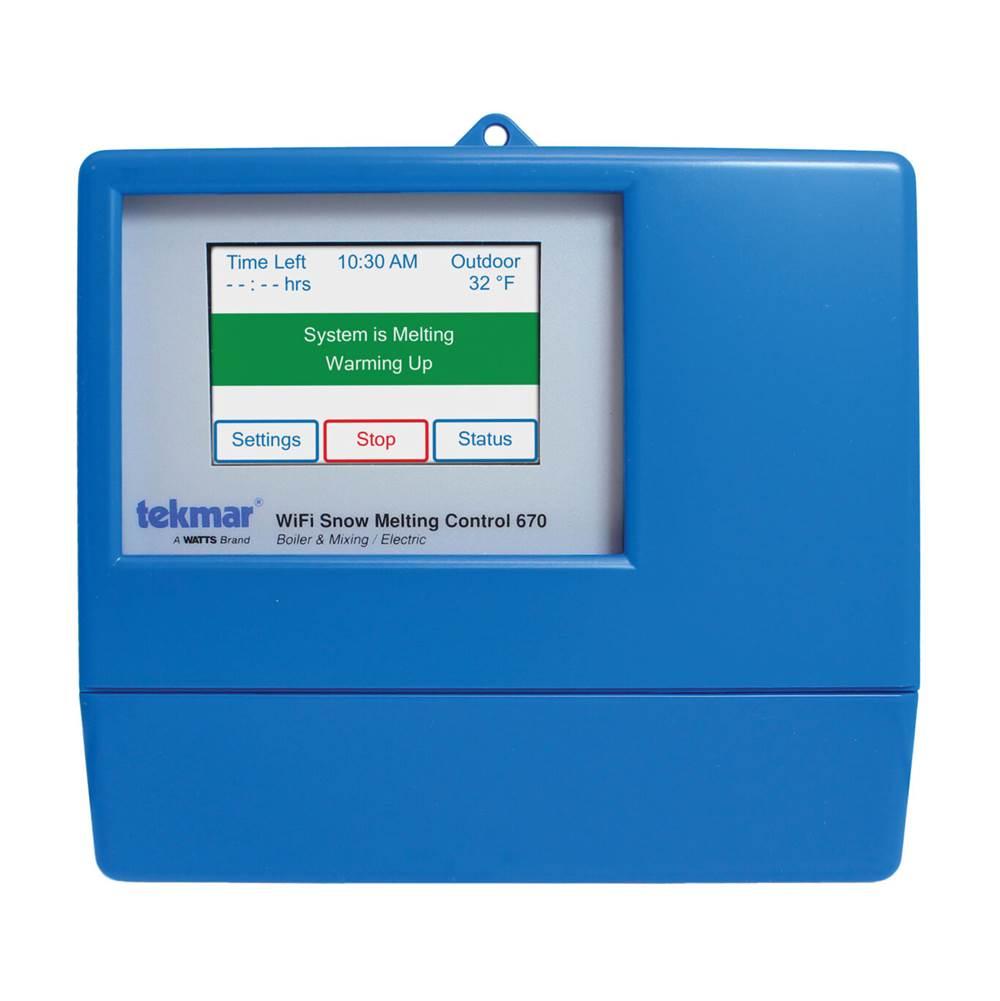

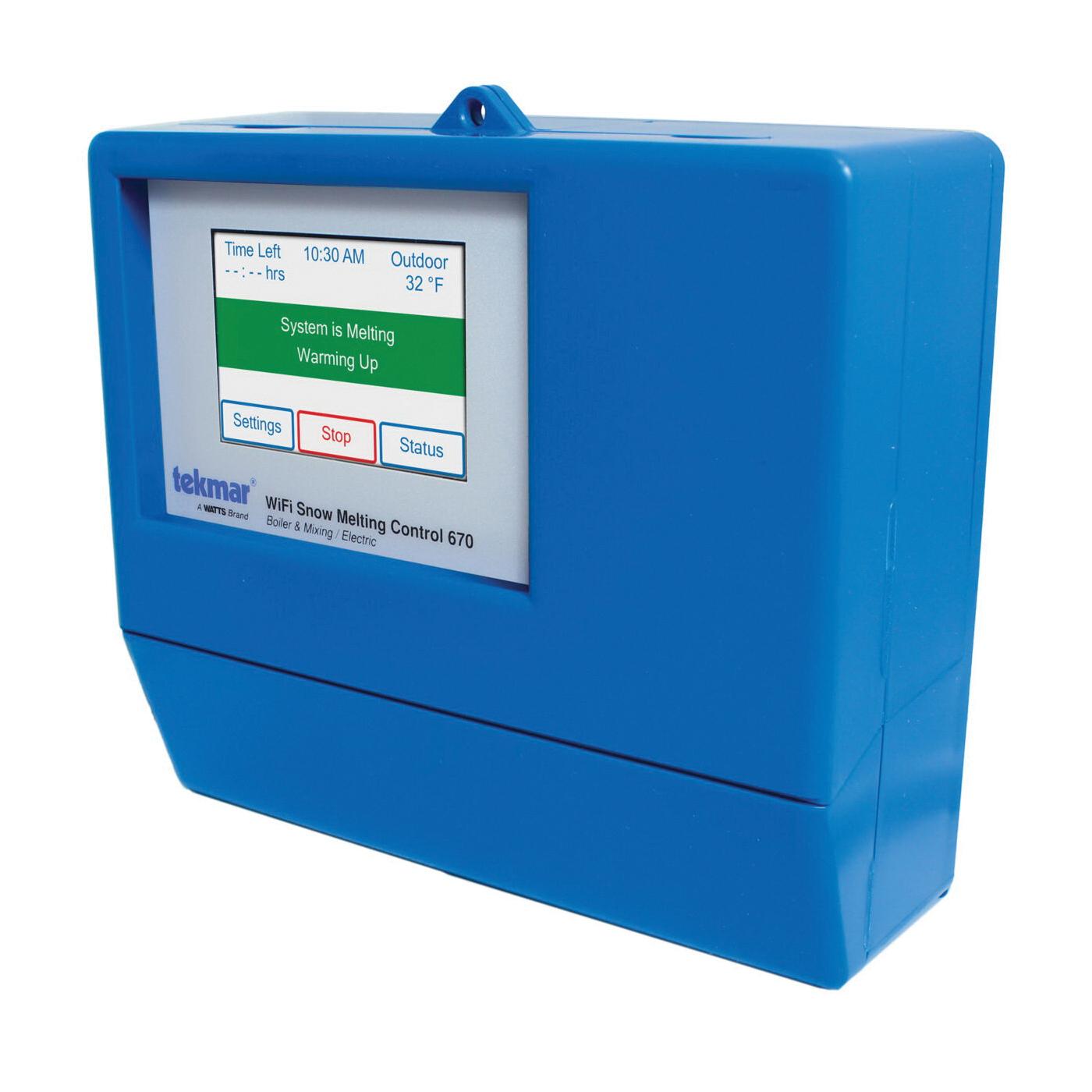

Tekmar® 670 Snow Melting Control, NTC Thermistor Sensor
- Manufacturer: Watts Water Technologies
- Brand Name: Tekmar®
- Part#: TEK670
- MPN: 670
- UPC: 779655067001
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The Wi-Fi snow melting control 670 operates hydronic and electric heating equipment designed to melt snow and/or ice from roads and walkway surfaces. The control works with the Tekmar® Snow/Ice sensor 090 or snow sensor 095 to automatically detect snow or ice and operates a single boiler, steam valve or electric cable to supply heat to the slab. Boiler return protection is provided to non-condensing boilers using a mixing valve or variable speed injection mixing pump. When connected to the Internet, the WATTS® home mobile app allows the 670 to be controlled remotely.
Tekmar® Snow Melting Control, 670, NTC Thermistor Sensor, -4 to 122 deg F, 115 V, 20 A, 60 Hz, NEMA 1 Enclosure, Color Touchscreen Display, 3-1/2 in Display, PVC Body, Blue Body, 2.81 in Overall Length, 7.56 in Overall Width, 6-5/8 in Overall Height
| Amperage Rating | : | 20 A |
| Body Color | : | Blue |
| Body Material | : | PVC |
| Display Size | : | 3-1/2 in |
| Display Type | : | Color Touchscreen |
| Enclosure Type | : | NEMA 1 |
| Frequency Rating | : | 60 Hz |
| Overall Height | : | 6-5/8 in |
| Overall Length | : | 2.81 in |
| Overall Width | : | 7.56 in |
| Plumbing and Flow Control | : | Plumbing and Flow Control |
| Sensor Type | : | NTC Thermistor |
| Series | : | 670 |
| Temperature Rating | : | -4 to 122 deg F |
| Voltage Rating | : | 115 V |
- Equipment exercising
- Mobile app for iOS and Android, automatic software updates
- Slab protection
- Tandem snow/ice detection
- Cold weather cut-out
- Automatic snow/ice detection, supports both inslab and retrofit aerial sensors
- Auto-storm, warm weather shut down
- Supports multiple zones with priority, idling
