resideo VR8345Q4563/U HNWVR8345Q4563
  1. pin-int

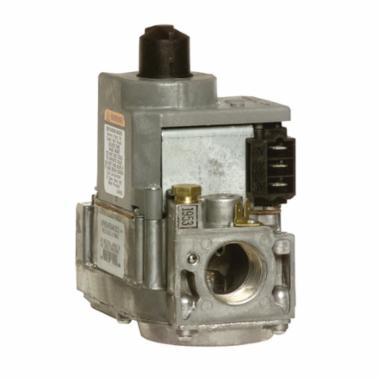

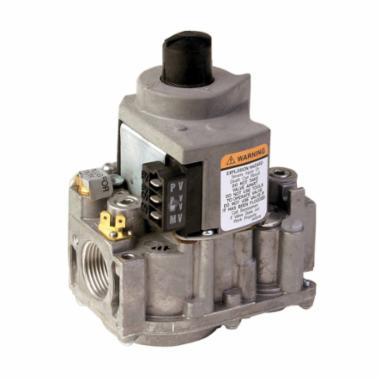

resideo VR8345 Series VR8345Q4563/U Gas Valve, 3/4 in Inlet, 3/4 in Outlet, NPT End, 30000 to 415000 Btu/hr Nominal

resideo VR8345 Series VR8345Q4563/U Gas Valve, 3/4 in Inlet, 3/4 in Outlet, NPT End, 30000 to 415000 Btu/hr Nominal

  • Manufacturer: Resideo Technologies Inc
  • Brand Name: resideo
  • Part#: HNWVR8345Q4563
  • MPN: VR8345Q4563/U
  • UPC: 085267797306
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 V, gas fired appliances, with capacities from 20 to 200 cfh (VR8245M) or 30 to 415 cfh (VR8345M).

resideo Gas Valve, VR8345 Series, 3/4 in Inlet, 3/4 in Outlet, NPT End, 30000 to 415000 Btu/hr Nominal Capacity, Natural Gas, Direct, Intermittent Pilot Ignition, 0.5 psi, -40 to 175 deg F, 24 V, 50/60 Hz, Male Quick-Connect Electrical Connection, 2-11/16 in Overall Length, 4-1/16 in Overall Width, 5-3/8 in Overall Height, Additional Information: Standard Opening

Additional Information      :      Standard Opening
Electrical Connection      :      Male Quick-Connect
End Type      :      NPT
Frequency Rating      :      50/60 Hz
Gas Type      :      Natural Gas
Ignition Type      :      Direct, Intermittent Pilot
Inlet Size      :      3/4 in
Nominal Capacity      :      30000 to 415000 Btu/hr
Outlet Size      :      3/4 in
Overall Height      :      5-3/8 in
Overall Length      :      2-11/16 in
Overall Width      :      4-1/16 in
Pressure Rating      :      0.5 psi
Series      :      VR8345 Series
Temperature Rating      :      -40 to 175 deg F
Voltage Rating      :      24 V
  • Replaces many IP, HSI or DSI gas control
  • For use with natural or manufactured gas or LP gas
  • Includes converter kit to adapt from natural to LP gas
  • Compact size
  • All adjustments and wiring connections accessible from top of control
  • 4 in swing radius allows easy rotation into position inside the tightest furnace vestibules
  • Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper
  • Internal inlet screen blocks contaminants in gas line from entering valve
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/resideo_VR8245M2530U_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/resideo_VR8245M2530U_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/resideo_VR8345K4809U_Specification_Sheet.pdf
