resideo VR8200A2132/U HNWVR8200A2132/U
  1. pin-int

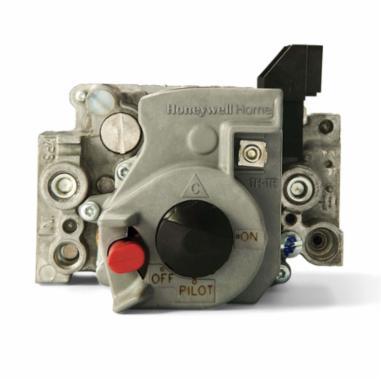

resideo VR8200 Series VR8200A2132/U Gas Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, 20000 to 200000 Btu/hr Nominal

resideo VR8200 Series VR8200A2132/U Gas Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, 20000 to 200000 Btu/hr Nominal

  • Manufacturer: Resideo Technologies Inc
  • Brand Name: resideo
  • Part#: HNWVR8200A2132/U
  • MPN: VR8200A2132/U
  • UPC: 085267112055
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Combination gas control for use in 24 V gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

resideo Gas Valve, VR8200 Series, 1/2 in Inlet, 1/2 in Outlet, NPT End, 20000 to 200000 Btu/hr Nominal Capacity, Natural Gas, Standing Pilot Ignition, 0.5 psi, 0 to 175 deg F, 24 V, 60 Hz, Male Quick-Connect Electrical Connection, 3-1/4 in Overall Length, 4-1/8 in Overall Width, 5-3/16 in Overall Height, Additional Information: Standard Opening

Additional Information      :      Standard Opening
Electrical Connection      :      Male Quick-Connect
End Type      :      NPT
Frequency Rating      :      60 Hz
Gas Type      :      Natural Gas
Ignition Type      :      Standing Pilot
Inlet Size      :      1/2 in
Nominal Capacity      :      20000 to 200000 Btu/hr
Outlet Size      :      1/2 in
Overall Height      :      5-3/16 in
Overall Length      :      3-1/4 in
Overall Width      :      4-1/8 in
Pressure Rating      :      0.5 psi
Series      :      VR8200 Series
Temperature Rating      :      0 to 175 deg F
Voltage Rating      :      24 V
  • Compact size
  • Provides two-automatic valves
  • Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
  • Diaphragm operated second automatic valve opens under control of the regulator, closes if gas or power supply is interrupted
  • Meets codes requiring dual safety shut-off
  • All adjustments, wiring connections and pilot outlet are accessible from top of control
  • Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
  • Compatible with ECO connector
  • Lite-rite (off-pilot-on) lighting sequence
