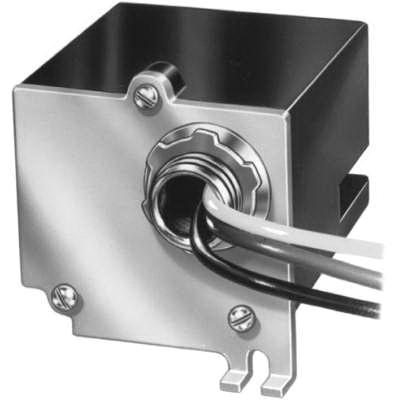

Honeywell Home R8225A1017/U Fan Relay, 24 V Coil, 1NO-1NC, SPDT
- Manufacturer: Resideo Technologies Inc
- Brand Name: Honeywell Home
- Part#: HNWR8225A1017/U
- MPN: R8225A1017/U
- UPC: 085267990059
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Honeywell Home Fan Relay, 120/240 V, 24 V Coil, 1NO-1NC, SPDT, Quick-Connect Terminal, Surface Mount, Plastic Housing, 2-1/2 in Overall Width, 3-7/16 in Overall Depth, 2-11/16 in Overall Height, For Use With: Air Conditioning Equipment's, Appliances, Vending Machines
| Coil Voltage | : | 24 V |
| Contact Form | : | 1NO-1NC, SPDT |
| Housing Material | : | Plastic |
| Mounting Type | : | Surface |
| Overall Depth | : | 3-7/16 in |
| Overall Height | : | 2-11/16 in |
| Overall Width | : | 2-1/2 in |
| Suitable For Use With | : | Air Conditioning Equipment's, Appliances, Vending Machines |
| Terminal Type | : | Quick-Connect |
| Voltage Rating | : | 120/240 V |
- Provide general purpose and heavy-duty switching for refrigeration and air conditioning equipment, appliances, vending machines and similar applications
- Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation
- Untaped coil assures cooler operation
- Laminated magnet construction for higher efficiency
- Base designed for easy replacement of competitive relays
- Plug compatible with Steveco 90-340 and Mars® 90340
