ICM™ ICM103 ALP24-ICM103
  1. pin-int

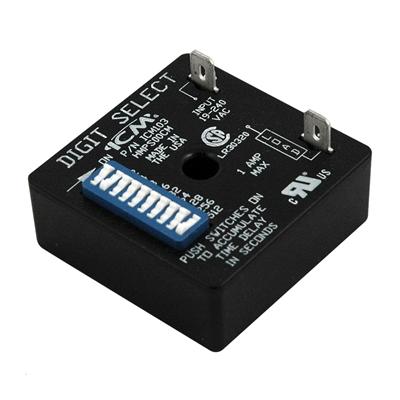

ICM™ ICM103 Delay On Make Relay, 1 A

ICM™ ICM103 Delay On Make Relay, 1 A

  • Manufacturer: ICM Controls
  • Brand Name: ICM™
  • Part#: ALP24-ICM103
  • MPN: ICM103
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes.

ICM™ Delay On Make Relay, 18-240 V, 1 A, 2 in Overall Width, 2 in Overall Depth, 1-1/4 in Overall Height, Additional Information: 10 A In-Rush Rating, 40 mA Holding Current, 1 to 1023 s Time Delay

Additional Information      :      10 A In-Rush Rating, 40 mA Holding Current, 1 to 1023 s Time Delay
Amperage Rating      :      1 A
Overall Depth      :      2 in
Overall Height      :      1-1/4 in
Overall Width      :      2 in
Voltage Rating      :      18-240 V
  • Highly precise digital timing
  • Switch-settable time delays
  • Ideal for ice machine applications
  • Universal voltage operation
  • Repeat accuracy .5% over voltage and temperature range
