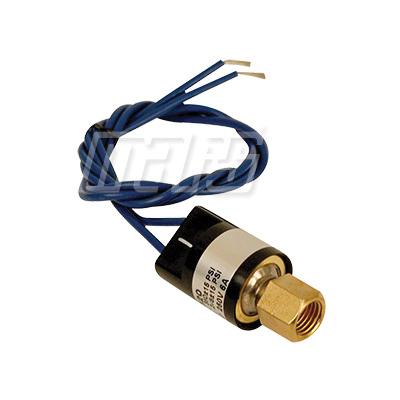

Mars® 43320 High Pressure Switch, 20-250 V, 6 A, 10 psi, 1/4 in, Female Flared
- Manufacturer: Mars
- Brand Name: Mars®
- Part#: MRR43320
- MPN: 43320
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
MARS pressure switches deliver the reliability and performance that makes them the most trusted electromechanical sensor. The MARS line of pressure switches cover many new R410A applications along with traditional pressure setting switches.
Mars® High Pressure Switch, 20-250 V, 6 A, 10 psi, 350 psi Open Pressure, 245 psi Close Pressure, SPST Switch, 1/4 in Connection, Female Flared Connection, 18 in Lead Length, Automatic Reset, 20 to 176 deg F, Screw-On Mounting
| Amperage Rating | : | 6 A |
| Close Pressure | : | 245 psi |
| Connection Size | : | 1/4 in |
| Connection Type | : | Female Flared |
| Lead Length | : | 18 in |
| Mounting Type | : | Screw-On |
| Open Pressure | : | 350 psi |
| Pressure Rating | : | 10 psi |
| Reset Type | : | Automatic |
| Switch Type | : | SPST |
| Temperature Rating | : | 20 to 176 deg F |
| Voltage Rating | : | 20-250 V |
- Tamper-proof construction
- Compact size and lightweight for direct mounting
- Hermetically sealed sensor
Specification Sheet
