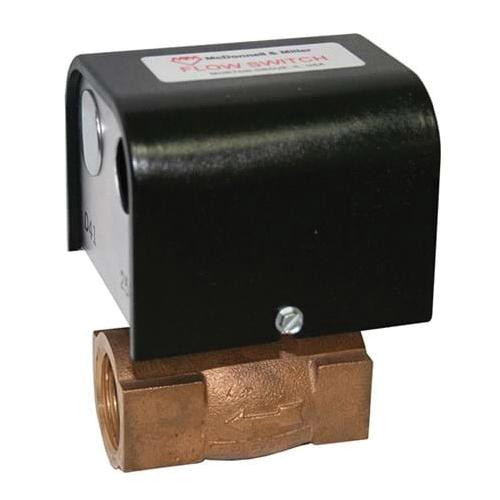

McDonnell & Miller FS5 Series 114783 Liquid Flow Switch With (2) SPDT Switches, 16.62 to 27 gpm, 120/240 V, 1 in NPT
- Manufacturer: Xylem
- Brand Name: McDonnell & Miller
- Part#: MCMFS5-D-1
- MPN: 114783
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
McDonnell & Miller Liquid Flow Switch With (2) SPDT Switches, FS5 Series, 16.62 to 27 gpm Flow Rate, 120/240 V, 44.4 A, 50/60 Hz, 1 in Connection, NPT Connection, SPDT Switch, 150 psi, 10 fps Maximum Velocity, NEMA 1 Enclosure, 32 to 250 deg F, Brass Body, 3-7/16 in L x 3-3/16 in W x 5-1/16 in H
| Amperage Rating | : | 44.4 A |
| Body Material | : | Brass |
| Connection Size | : | 1 in |
| Connection Type | : | NPT |
| Dimensions | : | 3-7/16 in L x 3-3/16 in W x 5-1/16 in H |
| Enclosure Type | : | NEMA 1 |
| Flow Rate | : | 16.62 to 27 gpm |
| Frequency Rating | : | 50/60 Hz |
| Maximum Velocity | : | 10 fps |
| Pressure Rating | : | 150 psi |
| Series | : | FS5 Series |
| Switch Type | : | SPDT |
| Temperature Rating | : | 32 to 250 deg F |
| Voltage Rating | : | 120/240 V |
- Inline configuration eliminates need for a pipe tee
- Brass, carbon and EPDM elastomer (for water) models FS5 and FS5-D
- Single pole, double throw snap switch
- Sensitivity adjusting screw makes flow adjustment easy
