McDonnell & Miller 114400 Liquid Flow Switch, 6 to 166 gpm, 120/240 V, 1 in NPT, SPDT
- Manufacturer: Xylem
- Brand Name: McDonnell & Miller
- Part#: MCMFS4-3
- MPN: 114400
- UPC: 751875000274
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

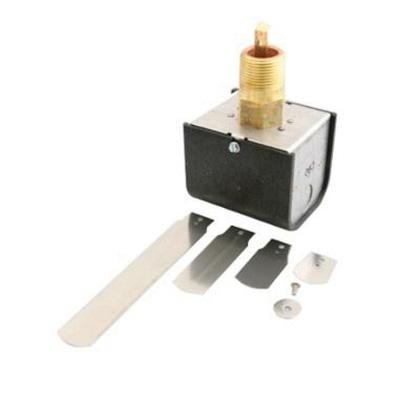

McDonnell & Miller Liquid Flow Switch, 6 to 166 gpm Flow Rate, 120/240 V, 7.7 A, 50/60 Hz, 125 VA, 1 in Connection, NPT Connection, SPDT Switch, 160 psi, NEMA 1 Enclosure, 32 to 300 deg F, 8-7/16 in H x 3-3/8 in W x 3 in D
| Amperage Rating | : | 7.7 A |
| Connection Size | : | 1 in |
| Connection Type | : | NPT |
| Dimensions | : | 8-7/16 in H x 3-3/8 in W x 3 in D |
| Enclosure Type | : | NEMA 1 |
| Flow Rate | : | 6 to 166 gpm |
| Frequency Rating | : | 50/60 Hz |
| Power Rating | : | 125 VA |
| Pressure Rating | : | 160 psi |
| Switch Type | : | SPDT |
| Temperature Rating | : | 32 to 300 deg F |
| Voltage Rating | : | 120/240 V |
- Two electrical knock outs allows connection from either end
- Sensitivity adjusting screw makes flow adjustment easy
- Single pole, double throw snap switch
- Hardened stainless steel bearings minimize friction
- Sealed monel bellows
- (4) 1 in, 2 in, 3 in and 6 in stainless steel paddles included
- 1 number of poles
