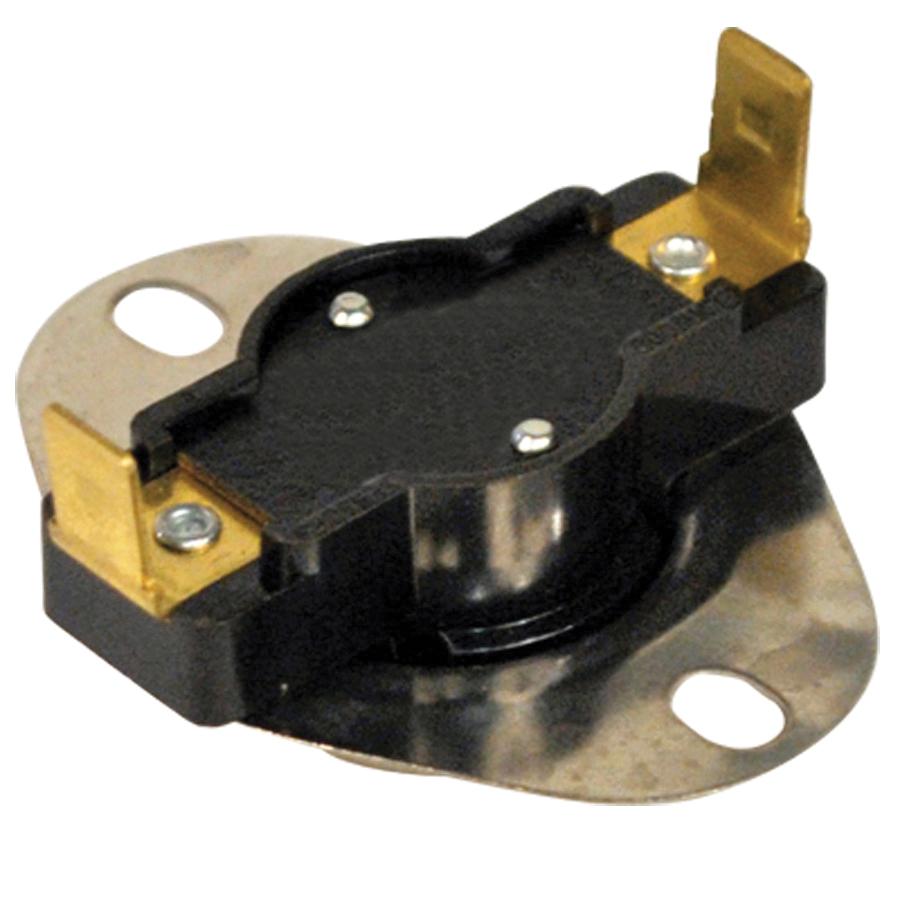

Mars® 39009 Fan Switch, 120/240/277 V
- Manufacturer: Mars
- Brand Name: Mars®
- Part#: MRR39009
- MPN: 39009
- UPC: 685744390091
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Mars® series 390 thermostats are designed for quick on-the-job replacements. One thermostat, when used in conjunction with only one listed, can solve almost any mounting problems you encounter. Our thermostats have been carefully selected to cover the widest temperature ranges with the fewest models.
Mars® Fan Switch, Series: 390, 120/240/277 V, 10 A at 120 V/5 A at 240 V Full Load (Terminal 1 to 3)/25 A at 120/240/277 V Resistive (Terminal 1 to 3), 120 deg F Open, 140 deg F Close, 1/4 in Quick Connect Connection, 125 VA Pilot Duty Rating
| Amperage Rating | : | 10 A at 120 V/5 A at 240 V Full Load (Terminal 1 to 3)/25 A at 120/240/277 V Resistive (Terminal 1 to 3) |
| Connection Type | : | 1/4 in Quick Connect |
| Pilot Duty Rating | : | 125 VA |
| Series | : | 390 |
| Temperature Rating | : | 120 deg F Open, 140 deg F Close |
| Voltage Rating | : | 120/240/277 V |
- Close on temperature rise
- F140-2 klixon code
- Each 3/4 in thermostat has an integral oval flange to match the most commonly used mounting option
- Widest range of replacements in the industry
