resideo ST9103A1002/U HNWST9103A1002/U
  1. pin-int

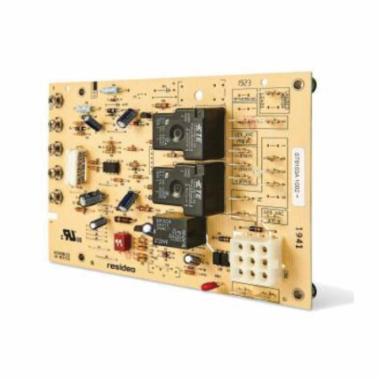

resideo ST9103A1002/U Electronic Fan Timer, 18 - 30 V

resideo ST9103A1002/U Electronic Fan Timer, 18 - 30 V

  • Manufacturer: Resideo Technologies Inc
  • Brand Name: resideo
  • Part#: HNWST9103A1002/U
  • MPN: ST9103A1002/U
  • UPC: 085267087377
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

resideo Electronic Fan Timer, 18- 30 V, 50/60 Hz, -40 to 150 deg F, 15 A Full Load, 30 A Locked Rotor at 115 VAC Contact Rating

Contact Rating      :      15 A Full Load, 30 A Locked Rotor at 115 VAC
Frequency Rating      :      50/60 Hz
Temperature Rating      :      -40 to 150 deg F
Voltage Rating      :      18 - 30 V
  • ST9103A integrates control of burner and circulating fan operations in an oil furnace
  • Central appliance wiring point simplifies service
  • Oil burner primary control
  • Fixed or field adjustable heat fan on delay
  • Field adjustable heat fan off delay
  • Controls two-speed circulating fan
