resideo R8184M1051/U HNWR8184M1051/U
  1. pin-int

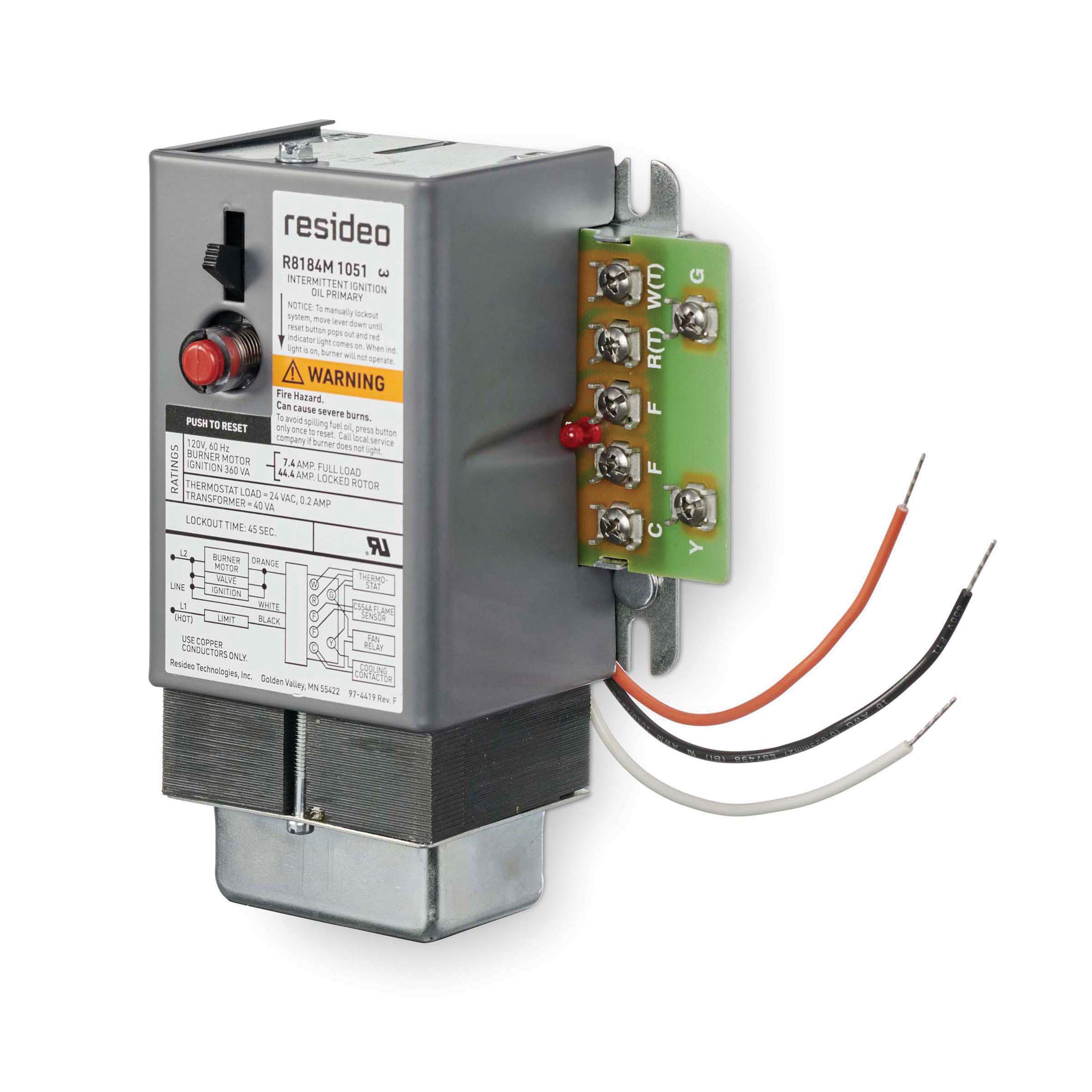

resideo Protectorelay® 80 Series R8184M1051/U Oil Burner Control With Transformer, 22.2 A

resideo Protectorelay® 80 Series R8184M1051/U Oil Burner Control With Transformer, 22.2 A

  • Manufacturer: Resideo Technologies Inc
  • Brand Name: resideo
  • Part#: HNWR8184M1051/U
  • MPN: R8184M1051/U
  • UPC: 085267078733
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

resideo Protectorelay® Oil Burner Control, Series: 80 Series, 22.2 A, 4-3/8 in H x 4-1/8 in W x 2-1/2 in D

Amperage Rating      :      22.2 A
Dimensions      :      4-3/8 in H x 4-1/8 in W x 2-1/2 in D
Series      :      80 Series
  • Intermittent ignition is on while the burner is on
  • Solid state flame sensing circuit
  • External button to manually reset safety switch after lockout
  • Enclosed safety switch must be manually reset after safety shutdown
  • R8184M includes 40 VA transformer and Y and G terminals for connection of cooling equipment
  • Mounts on standard 4 x 4 in junction box
  • C554A cadmium sulfide flame detector and 24 V thermostat required
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/resideo_R8184M1051U_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/resideo_R8184G4009U_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/resideo_R8184M1051U_Specification_Sheet.pdf
