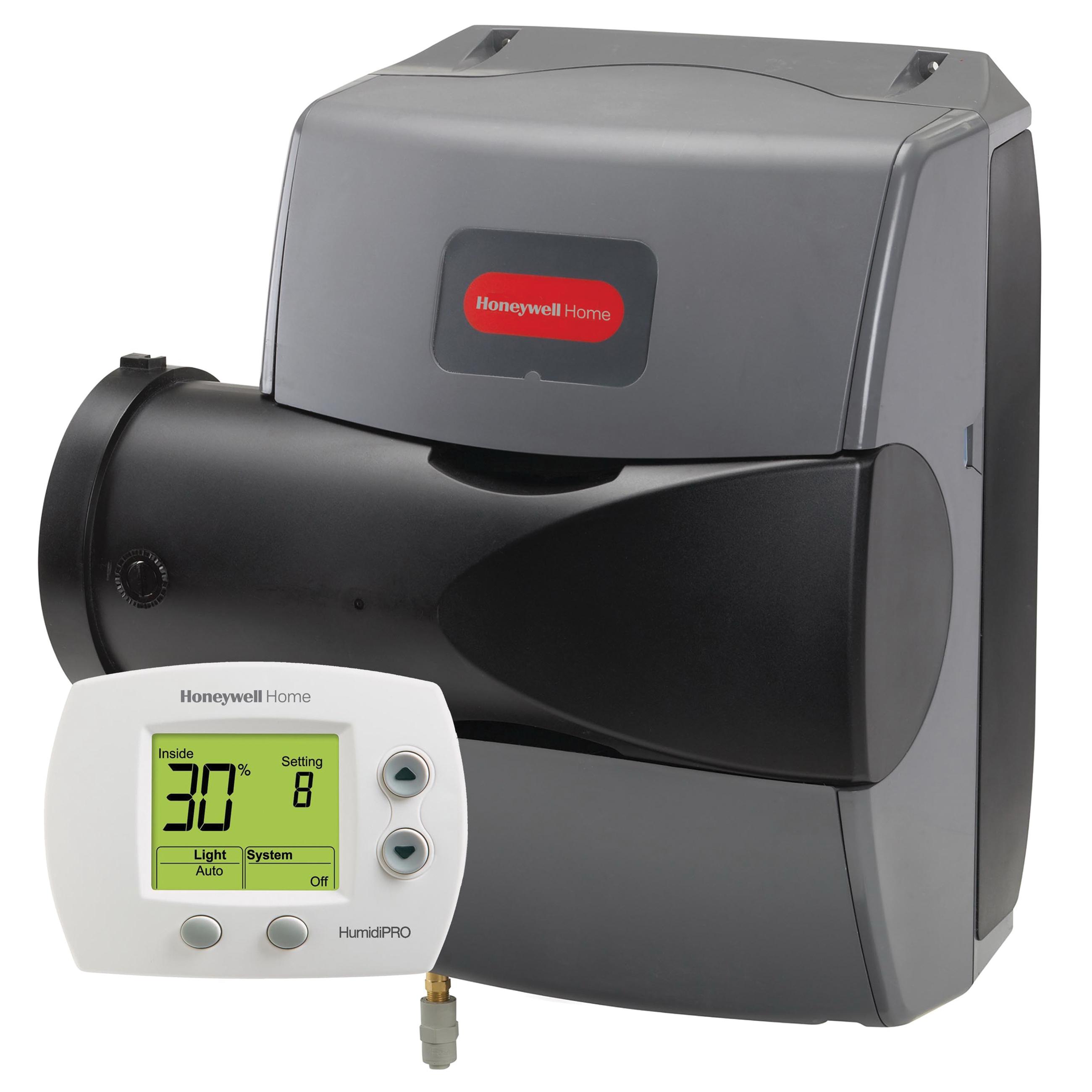

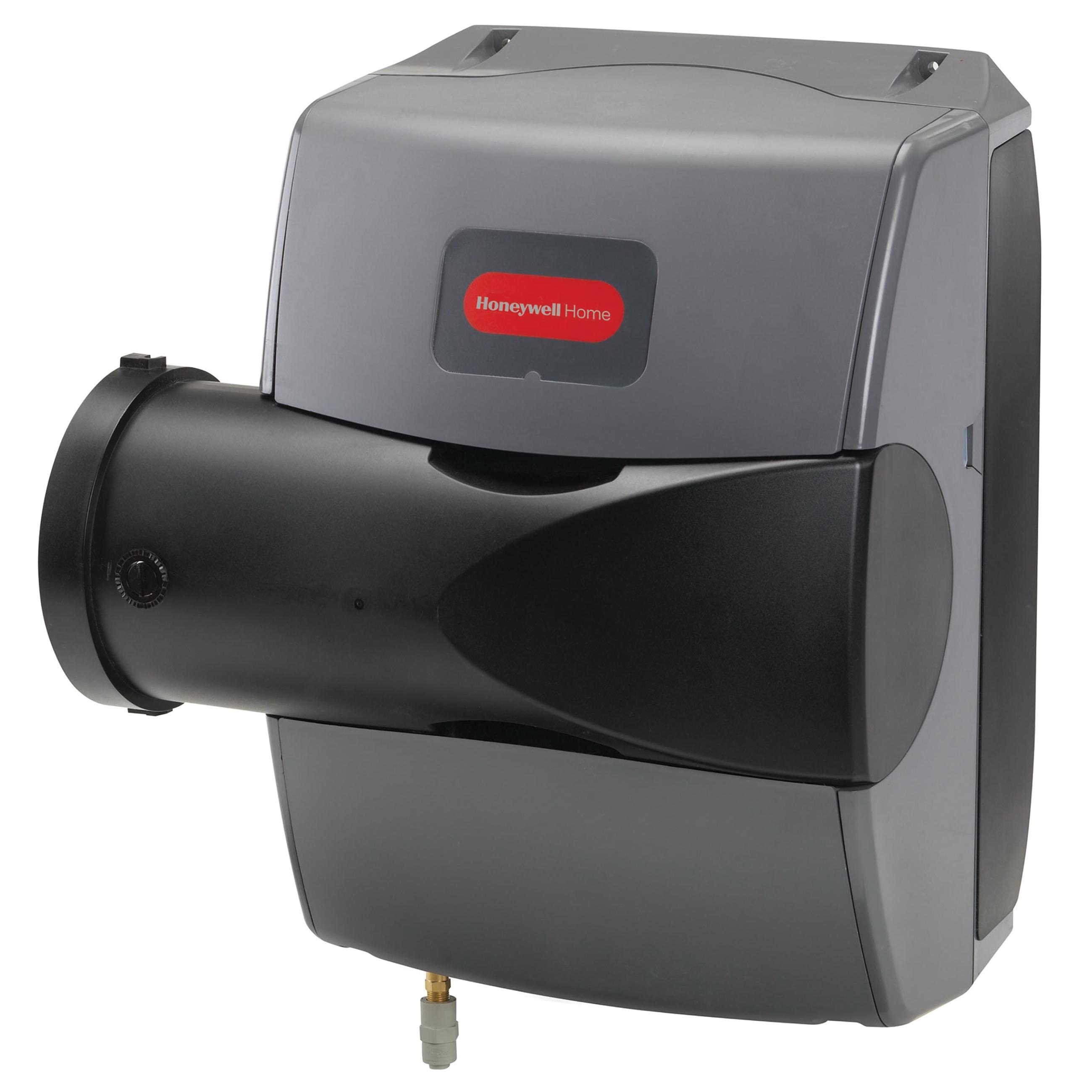

Honeywell Home HE200C1001/U Large Bypass Humidifier With Hardware, 24 VAC, 0.417 A, Mechanical Control, 64 gal Capacity
- Manufacturer: Resideo Technologies Inc
- Brand Name: Honeywell Home
- Part#: HNWHE200C1001
- MPN: HE200C1001/U
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The Honeywell Home bypass humidifier is installed directly onto the supply or return air duct of your customer's HVAC system. Air flows through the humidifier pad then into the duct for distribution throughout the home.
Honeywell Home Large Bypass Humidifier, 24 VAC, 0.417 A, 60 Hz, 9-3/4 in W x 12-1/2 in H Plenum Opening, Control Type: Mechanical, 64 gal Capacity, 20000 cu-ft Coverage Area, 1.1 to 32 deg C, Gray, 15 in W x 17-1/4 in H x 10-1/4 in D
| Amperage Rating | : | 0.417 A |
| Capacity | : | 64 gal |
| Color | : | Gray |
| Control Type | : | Mechanical |
| Coverage Area | : | 20000 cu-ft |
| Dimensions | : | 15 in W x 17-1/4 in H x 10-1/4 in D |
| Frequency Rating | : | 60 Hz |
| Plenum Opening | : | 9-3/4 in W x 12-1/2 in H |
| Temperature Rating | : | 1.1 to 32 deg C |
| Voltage Rating | : | 24 VAC |
- Convenient slide-out pad design for easy replacements
- Quick connect gasket for single step plumbing
- Interchangeable bypass to easily change bypass direction (no disassembly required)
- Delivers up to 17 gal of humidification per day
- 10 years recommended service life
