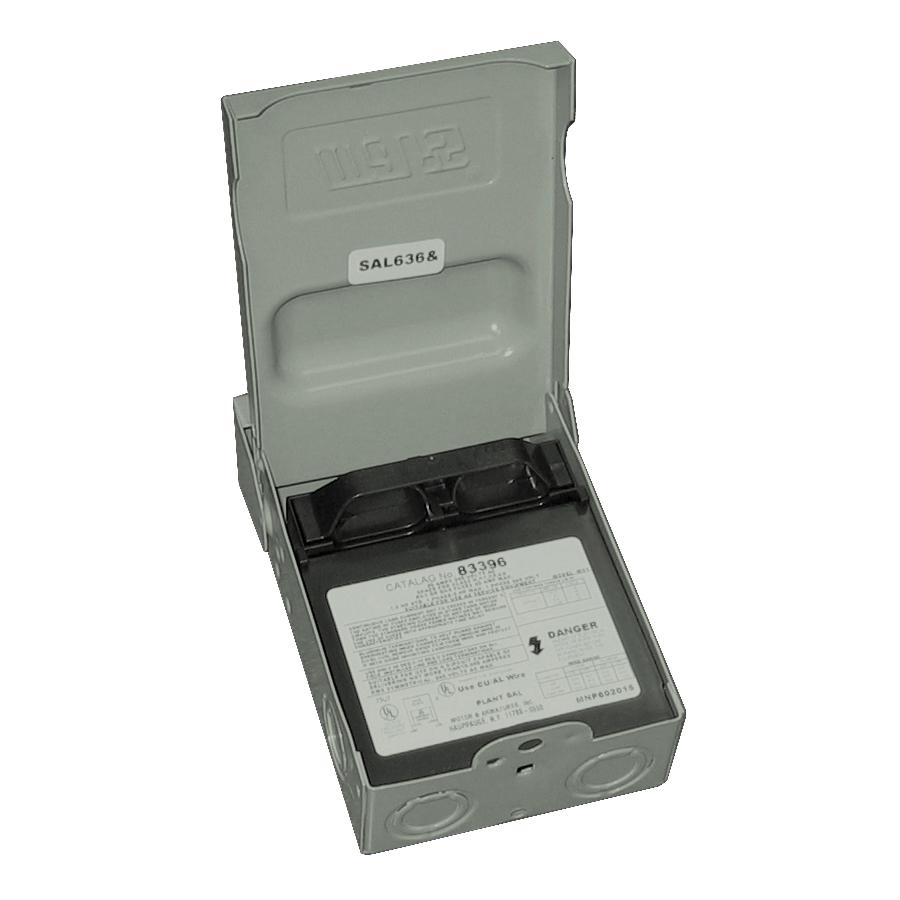

Mars® 83396 Top Open A/C Disconnect Switch, Fusible, 240 V, 30 A, NEMA 3R Enclosure, Steel Housing
- Manufacturer: Mars
- Brand Name: Mars®
- Part#: MRR83396
- MPN: 83396
- UPC: 685744833963
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
MARS offers both fusible and non-fusible single phase air conditioner disconnects. These units provide a disconnecting means which should be located within sight from and readily accessible from the air conditioning or refrigerating equipment. UL listed. MARS #83315 is also CUL listed
Mars® Top Open A/C Disconnect Switch, Fusible, 240 V, 30 A, NEMA 3R Enclosure, Steel Housing, Gray Housing, 7-1/4 in Overall Width, 5 in Overall Depth, Additional Information: 2-Pole, 1 ph Phase, 2.13 in H Dimensions
| Additional Information | : | 2-Pole, 1 ph Phase, 2.13 in H Dimensions |
| Amp Rating | : | 30 Amp |
| Amperage Rating | : | 30 A |
| Color | : | Gray |
| Depth (in.) | : | 2.13 |
| Enclosure Material | : | Steel |
| Enclosure Type | : | NEMA 3R |
| Fused or Non-Fused | : | Fused |
| Fusible/Non-Fusible | : | Fusible |
| Housing Color | : | Gray |
| Housing Material | : | Steel |
| NEMA Enclosure | : | NEMA 3R |
| No. of Poles | : | 2 |
| Outlet - GFI | : | No |
| Overall Depth | : | 5 in |
| Overall Width | : | 7-1/4 in |
| Phase | : | Single |
| Side or Top Open | : | Top |
| Standards | : | UL/CUL |
| Type | : | Top Open A/C Disconnect |
| Voltage Rating | : | 240 V |
| Width (in.) | : | 5 |
- Compact Design
- Contractor Friendly
- Top Open Door
- Easy Access
- Front Open Pull Out
