Mars® 83321 MRR83321
  1. pin-int

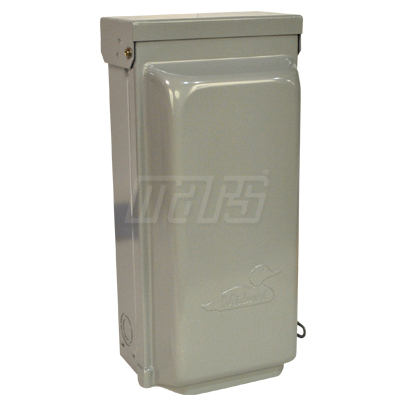

Mars® 83321 Top Open A/C Disconnect Switch, Non-Fusible, 240 V, 60 A, NEMA 3R Enclosure, Steel Housing

Mars® 83321 Top Open A/C Disconnect Switch, Non-Fusible, 240 V, 60 A, NEMA 3R Enclosure, Steel Housing

  • Manufacturer: Mars
  • Brand Name: Mars®
  • Part#: MRR83321
  • MPN: 83321
  • UPC: 685744833215
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Midwest Electric three phase pull out disconnects and single phase non-automatic switches are manufactured of heavy zinc coated steel with highest quality electro-deposition paint finish for maximum corrosion resistance. The three phase disconnects are available with and without fuse protection. Fusible units require three fuses. NEMA 3R.

Mars® Top Open A/C Disconnect Switch, Non-Fusible, 240 V, 60 A, NEMA 3R Enclosure, Steel Housing, Gray Housing, 14.38 in Overall Length, 7-1/4 in Overall Width, 5.19 in Overall Depth, Additional Information: 3-Pole, 3 ph Phase

Additional Information      :      3-Pole, 3 ph Phase
Amp Rating      :      60 Amp
Amperage Rating      :      60 A
Color      :      Gray
Depth (in.)      :      5.19
Enclosure Material      :      Steel
Enclosure Type      :      NEMA 3R
Fused or Non-Fused      :      Non-Fused
Fusible/Non-Fusible      :      Non-Fusible
Housing Color      :      Gray
Housing Material      :      Steel
NEMA Enclosure      :      NEMA 3R
No. of Poles      :      3
Outlet - GFI      :      No
Overall Depth      :      5.19 in
Overall Length      :      14.38 in
Overall Width      :      7-1/4 in
Phase      :      Three
Side or Top Open      :      Top
Standards      :      UL/CUL
Type      :      Top Open A/C Disconnect
Voltage Rating      :      240 V
Width (in.)      :      7.25
  • Three Phase Metallic Disconnect
  • Top Open Door
  • Easy Access
  • Front Open Pull Out
