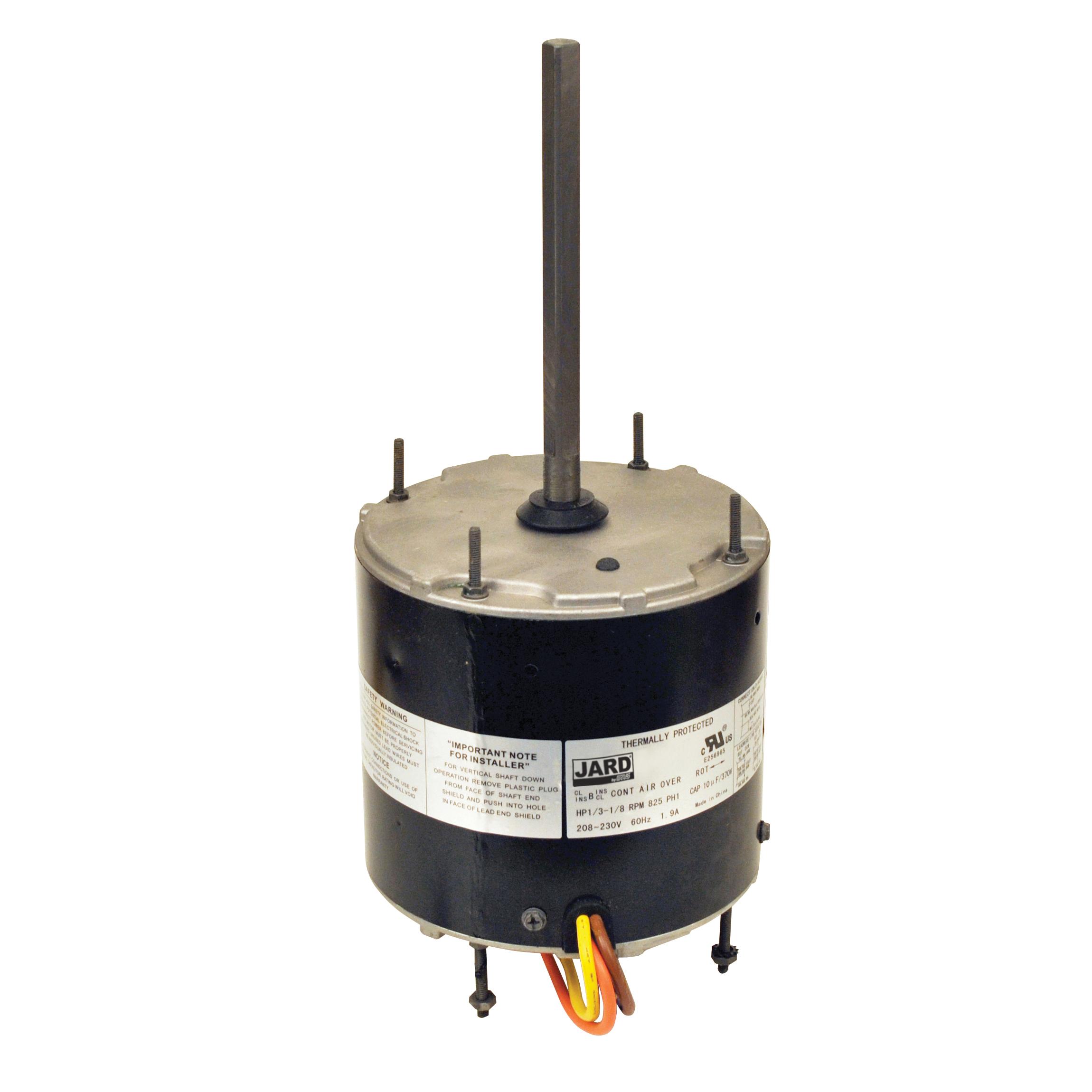

Jard® by Mars® 22459 Condenser Fan Motor, 1/3 to 1/8 hp, 208-230 V, 60 Hz, 1 ph, 48 Frame, 825 rpm Speed
- Manufacturer: Mars
- Brand Name: Jard® by Mars®
- Part#: MRR22459
- MPN: 22459
- UPC: 685744224594
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
JARD multi-horsepower condenser fan motors are designed for either shaft up or shaft down applications. All motors are suitable for air conditioning or heat pump applications. These motors need to be mounted within the airflow of the fan for proper cooling.
Jard® by Mars® Condenser Fan Motor, 1/3 to 1/8 hp Rating, 208-230 V, 1.9 A, 60 Hz, 1 ph, 825 rpm Speed Rating, 1 Speed, Totally Enclosed Air Over, 48 Frame, 1/2 in Dia x 6-1/2 in L Shaft, Service Factor: 1, Ball Bearing, Belly Band, Extended Clamp Bolt Mount, 60 deg C, Insulation Class: B, Additional Information: 370 V 10 uF Capacitor, 5.48 in L Motor Body, Continuous-Duty, PSC Type, Reversible Rotation
| Additional Information | : | 370 V 10 uF Capacitor, 5.48 in L Motor Body, Continuous-Duty, PSC Type, Reversible Rotation |
| Amperage Rating | : | 1.9 A |
| Bearing Type | : | Ball |
| Enclosure Type | : | Totally Enclosed Air Over |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/3 to 1/8 hp |
| Insulation Class | : | B |
| Mounting Type | : | Belly Band, Extended Clamp Bolt |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Service Factor | : | 1 |
| Shaft Size | : | 1/2 in Dia x 6-1/2 in L |
| Speed Rating | : | 825 rpm |
| Temperature Rating | : | 60 deg C |
| Voltage Rating | : | 208-230 V |
- Rheem mounting holes with screws installed
- Water slinger on shaft
- A/C or Heat Pump duty
- Thru bolt or band mounting
- 36 in. Leads
