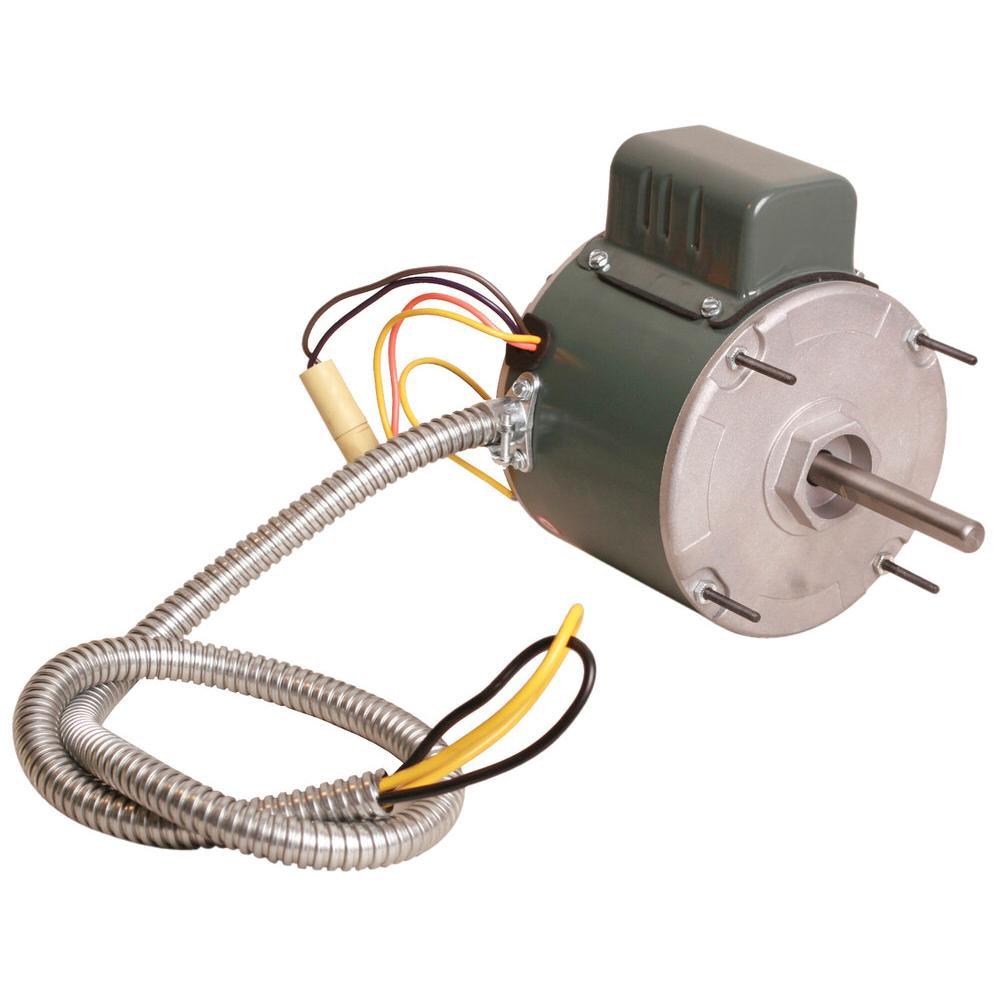

ALLTEMP UH-9035 Unit Heater Motor, 1/4 hp, 115 V, 60 Hz, 48 Frame, 1075 rpm Speed
- Manufacturer: DiversiTech Corporation
- Brand Name: ALLTEMP
- Part#: ALPUH-9035
- MPN: UH-9035
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
ALLTEMP Unit Heater Motor, 1/4 hp, 115 V, 4.1 A, 60 Hz, 1075 rpm, 1 Speed, 48 Frame, 1/2 x 3/4 in Shaft, Ball Bearing, 4-Stud Mounting, 40 deg C, Insulation Class: B, Additional Information: 4.52 in L Dimensions
| Additional Information | : | 4.52 in L Dimensions |
| Amperage Rating | : | 4.1 A |
| Bearing Type | : | Ball |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/4 hp |
| Insulation Class | : | B |
| Mounting Type | : | 4-Stud |
| Number of Speeds | : | 1 |
| Shaft Size | : | 1/2 x 3/4 in |
| Speed Rating | : | 1075 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115 V |
- 48 Frame
- Totally Enclosed
- Mounting: 4 Stud Pattern
- 60 Hz
- Shaft: 1/2" x 3.4"
- Reversible
- Permanent Split Capacitor
- 60degC Ambient
- Insulation Class B
- Thermally Protected
