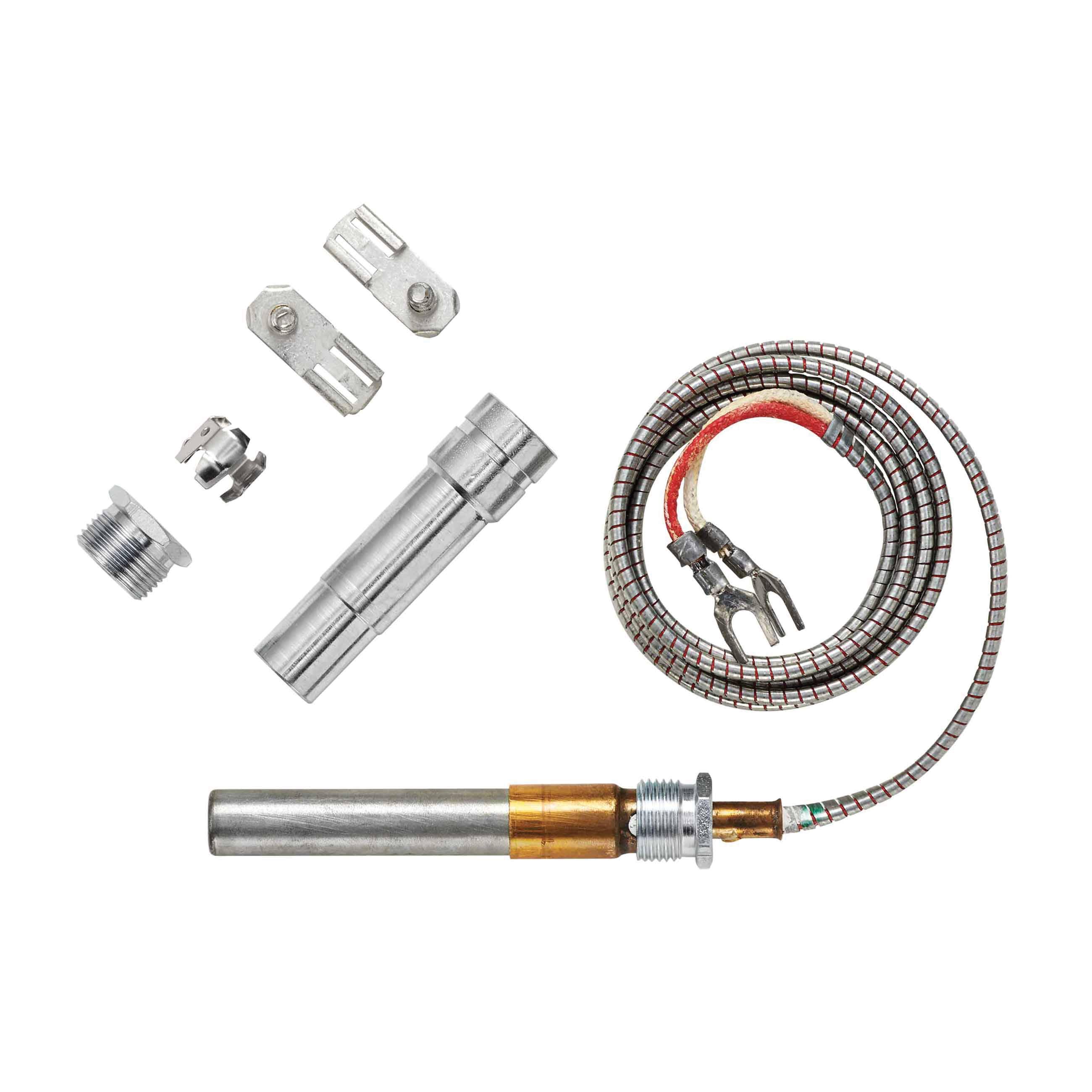

Honeywell Home Q313 Series Q313A1170/U Thermopile Generator With PG9 Adapter and Attaching Nut, Spade Terminal, 2.89 Ohm
- Manufacturer: Resideo Technologies Inc
- Brand Name: Honeywell Home
- Part#: HNWQ313A1170/U
- MPN: Q313A1170/U
- UPC: 085267000338
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Q313 thermopile generator contains multiple thermocouples connected in series to provide 750 mV. The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.
Honeywell Home Thermopile Generator With PG9 Adapter and Attaching Nut, Q313 Series, Spade Terminal Connection, 600-750 mV, 2.89 Ohm Resistance, 35 in Probe Length, 1400 deg F Hot Junction, 780 deg F Cold Junction
| Connection Type | : | Spade Terminal |
| Probe Length | : | 35 in |
| Resistance | : | 2.89 Ohm |
| Series | : | Q313 Series |
| Temperature Rating | : | 1400 deg F Hot Junction, 780 deg F Cold Junction |
| Voltage Rating | : | 600-750 mV |
- Push-in clip, split nut or adapter assembly available for easy pilot burner installation
- Spade or quick-connect terminals available for mV gas control connections
