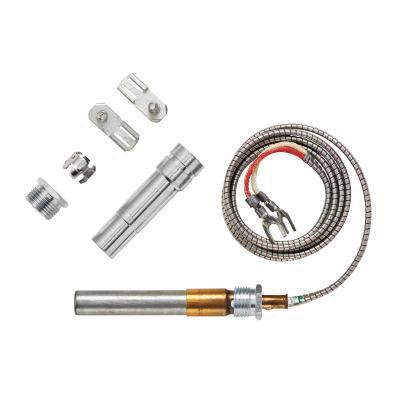

Honeywell Home Rsd-q313a Q313A1055/U Thermopile, Spade Terminal, 750 mV, 47 in L Lead, 2.9 Ohm
- Manufacturer: Resideo Technologies Inc
- Brand Name: Honeywell Home
- Part#: HNWQ313A1055/U
- MPN: Q313A1055/U
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Q313 Thermopile Generator contains multiple thermocouples connected in series to provide 750mV. The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.
Honeywell Home Thermopile, Model: Rsd-q313a, Spade Terminal Connection, 750 mV, 2.9 Ohm Resistance, 47 in Lead Length, 780 deg F Cold, 1400 deg F Hot, Domestic/Import: Import, Additional Information: 600 to 750 mV Open Circuit Output, For Use With Q314, Q324, Q327, Q377, Q379, Q382 Pilot Burners
| Additional Information | : | 600 to 750 mV Open Circuit Output, For Use With Q314, Q324, Q327, Q377, Q379, Q382 Pilot Burners |
| Connection Type | : | Spade Terminal |
| Domestic/Import | : | Import |
| Lead Length | : | 47 in |
| Model | : | Rsd-q313a |
| Resistance | : | 2.9 Ohm |
| Temperature Rating | : | 780 deg F Cold, 1400 deg F Hot |
| Voltage Rating | : | 750 mV |
- Push-in clip, split nut, or adapter assembly
- Spade or quick-connect terminals
