resideo S8910U1000/U HNWS8910U1000/U
  1. pin-int

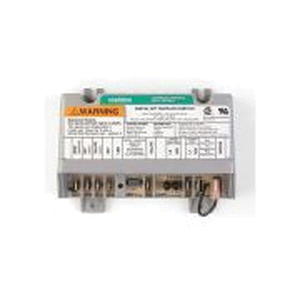

resideo S8910U Series S8910U1000/U Universal Hot Surface Ignition Module, 24 V

resideo S8910U Series S8910U1000/U Universal Hot Surface Ignition Module, 24 V

  • Manufacturer: Resideo Technologies Inc
  • Brand Name: resideo
  • Part#: HNWS8910U1000/U
  • MPN: S8910U1000/U
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Universal hot surface ignition module replaces multiple field installed hot surface ignition modules supplied by Resideo, White-Rodgers, Robertshaw and Johnson. Uses a 120 VAC igniter. Includes cross reference, instructions, and accessories for easy replacement.

resideo Universal Hot Surface Ignition Module, S8910U Series, 24 V, 2 A, Liquid Propane, Natural Gas, 7 to 45 s Igniter Warm-Up, Pre Purge Time: 32 s, 7 s Lockout, 4-1/16 in Width, 1-15/16 in Depth, 5-1/4 in Height

Amperage Rating      :      2 A
Depth      :      1-15/16 in
Gas Type      :      Liquid Propane, Natural Gas
Height      :      5-1/4 in
Igniter Warm-Up Time      :      7 to 45 s
Lockout Time      :      7 s
Pre Purge Time      :      32 s
Series      :      S8910U Series
Voltage Rating      :      24 V
Width      :      4-1/16 in
  • Replaces over 800 White-Rodgers, Robertshaw and Resideo hot surface ignition models
  • For 120 Vac (up to 5.0A) surface igniter (Norton 201/271 or equivalent)
  • S8910U 3000 Series has LED status indicator and microammeter ports for easy trouble shooting
  • For local (single rod) or remote (dual rod) rectification type flame sensing
  • Contains easy-to-use cross reference and instructions plus the accessories required to replace the existing hot surface ignition module
  • Provides one or three ignition trials (four-second or seven-second trials) per call for heat
  • Field selectable number of ignition trials and trial time based on unit being replaced
  • Igniter warm up time: 7 (12 seconds second and third trial), 17 (27 seconds second and third trial), 34, or 45 seconds
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/resideo_S8910U1000_U_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/resideo_S8910U1000_U_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/resideo_S8910U1000_U_Specification_Sheet.pdf
