resideo C554A1463/U HNWC554A1463/U
  1. pin-int

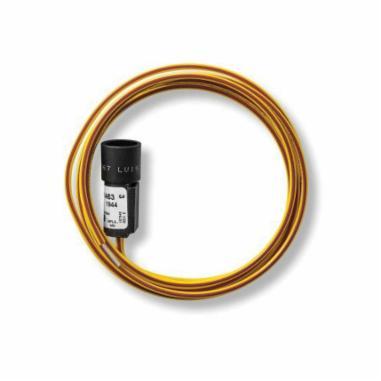

resideo C554A1463/U Photoconductive Flame Detector, 60 VAC/VDC, 1/4 in, 60 in L Wire Lead

resideo C554A1463/U Photoconductive Flame Detector, 60 VAC/VDC, 1/4 in, 60 in L Wire Lead

  • Manufacturer: Resideo Technologies Inc
  • Brand Name: resideo
  • Part#: HNWC554A1463/U
  • MPN: C554A1463/U
  • UPC: 085267990141
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

resideo Photoconductive Flame Detector, 60 VAC/VDC, 1/4 in Connection, 60 in Wire Lead Length, Quick-Connect Electrical Connection, 140 deg F Operating, For Use With: R-4166, R-4184, R-8182, R-8184, R-8185, R-8404, R-8991, R-7997, R-7184 and R-7284 Refrigerants

Connection Size      :      1/4 in
Electrical Connection Type      :      Quick-Connect
Operating Temperature      :      140 deg F
Suitable For Use With      :      R-4166, R-4184, R-8182, R-8184, R-8185, R-8404, R-8991, R-7997, R-7184 and R-7284 Refrigerants
Voltage Rating      :      60 VAC/VDC
Wire Lead Length      :      60 in
  • On flame failure, the light sensitive cadmium sulfide cell, in conjunction with flame sensing circuitry, causes the Protectorelay® control to shutdown the main oil burner
  • Glass-to-metal hermetic seal in plug-in cell prevents deterioration by humidity, soot or oil fumes
  • Replaceable CAD cell
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/resideo_C554A1463U_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/resideo_C554A1463U_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/resideo_C554A1463U_Specification_Sheet.pdf
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/resideo_C554A1463U_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/resideo_C554A1463U_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/resideo_C554A1463U_Specification_Sheet.pdf
