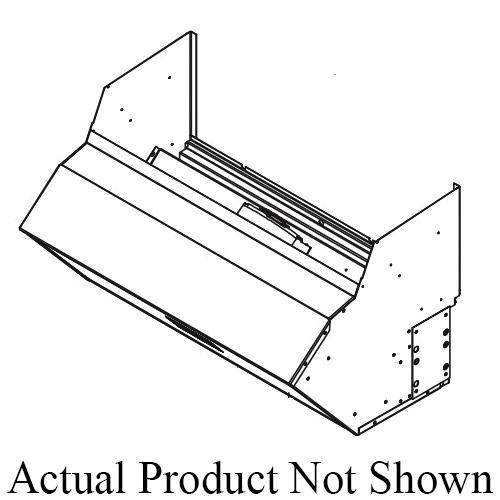

Rheem® RXRX-RCF02 RXRX-RCF03C Power Exhaust Kit, For Use With: Renaissance™ RHPC Series Line Packaged Heat Pumps
- Manufacturer: Rheem Manufacturing
- Brand Name: Rheem®
- Part#: USRRXRX-RCF03C
- MPN: RXRX-RCF03C
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Power Exhaust is easily field-installed. The power exhaust is housed in the barometric relief opening and is easily slipped in with a plugin assembly. The wire harness to the economizer also has accommodations for a smoke detector.
Rheem® Power Exhaust Kit, Model: RXRX-RCF02, 208/230 V, 2.7 A, 60 Hz, 1/2 hp, 1 ph, 2013 cfm, 1625 rpm Speed Rating, For Use With: Renaissance™ RHPC Series Line Packaged Heat Pumps, 23-1/8 in L x 20 in H
| Amperage Rating | : | 2.7 A |
| Dimensions | : | 23-1/8 in L x 20 in H |
| Flow Rate | : | 2013 cfm |
| Frequency Rating | : | 60 Hz |
| Model | : | RXRX-RCF02 |
| Phase | : | 1 ph |
| Power Rating | : | 1/2 hp |
| Speed Rating | : | 1625 rpm |
| Suitable For Use With | : | Renaissance™ RHPC Series Line Packaged Heat Pumps |
| Voltage Rating | : | 208/230 V |
- Shipped completely assembled
- All wiring from control box to economizer is supplied
- Color coordinated with the unit
- Fully insulated with 1" 1.5 lb. fiberglass insulation
- Motors are factory wired and tested
- Economizer with Relief Hood Sold Separately
