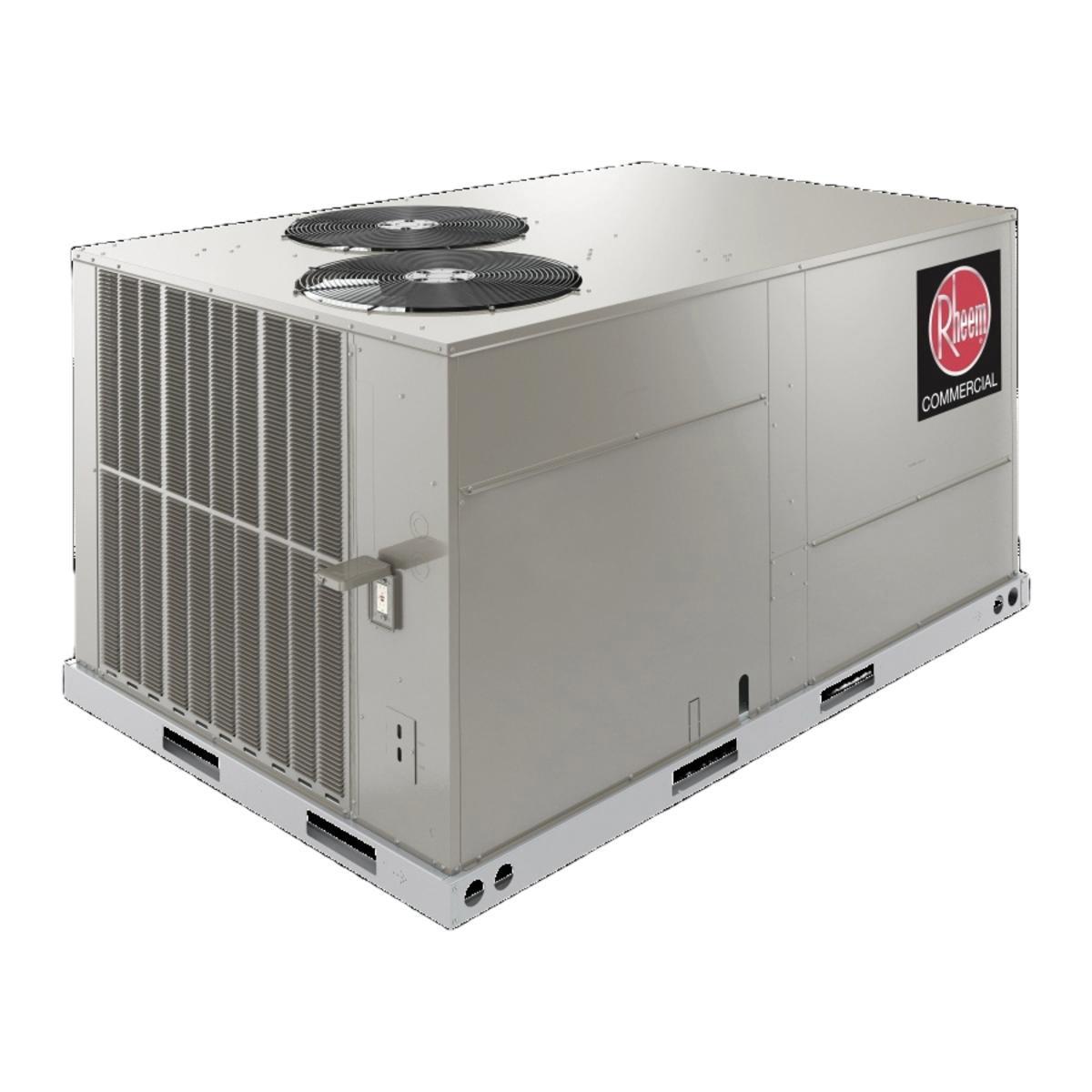

Rheem® Renaissance™ Classic® Series RHPCYB060ACT000AAAA0 Packaged Heat Pump, 5 ton Nominal, 57017 Btu/hr Heating BTU

Renaissance products are designed with a flexible footprint, thoughtfully engineered for easy, direct replacement of most other manufacturer's products without a roofcurb adapter. These units also boast industry-leading serviceability features, including the slide out, qwik-clean drain pan, the qwik-slide blower assembly, tool-less access to the patented flex-fit filter rack, and lockable external gauge ports. Units meet or exceed ASHRAE 90.1 energy efficiency levels and are rigorously SEET tested to perform reliably in extreme environments, delivering powerful cooling operation up to 125degF.

Rheem® Renaissance™ Packaged Heat Pump, Series: Classic® Series, 5 ton Nominal Capacity, 60000 Btu/hr Cooling BTU Rating, 57017 Btu/hr Heating BTU Rating, 208-230 V, 33 A, 1 hp Indoor, 1/2 hp Outdoor HP Rating, 60 Hz, 3 ph, 1050 rpm Indoor, 1075 rpm Outdoor Rotational Speed, Scroll Compressor, 2000 cfm Rating, 13.4 SEER, HSPF: 6.7, 10.6 EER, Horizontal Sideflow, Vertical Downflow Configuration, NPT Connection Type, 3/4 in Connection, R-454B, 1 Stage, 40 to 45 A Fuse, 84 dB, Direct Drive, 1-Row 7.13 sq-ft Indoor, 1-Row 15.52 sq-ft Outdoor Coil Rating, 20 FPI Indoor, 16 FPI Outdoor Fins per Inch, (4) 2 x 16 x 16 in Filter, Steel, Galvanized, 41-3/8 in H x 79-1/4 in W x 46-3/4 in D, Additional Information: Standard Static Constant Torque Drive, Small Commercial Cabinet, Standard Efficiency, CoreCommand™ (Non-Communicating) Control

• Patented flex-fit filter rack and qwik-clean drain pain for quick, easy service and maintenance
• PlusOne® SmartShield™ with patented microchannel defrost system
• Field convertible airflow (downflow and horizontal)
• PlusOne® Diagnostics come standard through CoreCommand™ with easy-to-read and understand fault codes, history, and input/output options to meet building compliance needs
• Optional ClearControl™ includes factory-installed Direct Digital Control (DDC) and sensors for easy connectivity through Modbus®, LonWorks®, or BACnet®
• Available power options: 208-230V / 1 phase / 60 Hz, 208-230V / 3 phase / 60 Hz, 460V / 3 phase / 60 Hz
• Limited Warranty (Commercial Applications): Parts - 1 Year, Compressor - 5 Years. Additional extended warranty packages available through ProtectionPlus®
• All units are factory run tested and shipped with R-454B refrigerant charge
