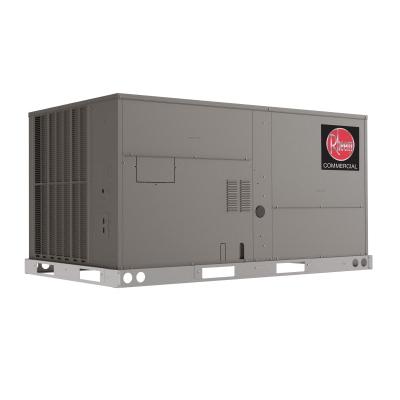

Rheem® Renaissance™ Line Classic® Series RHPCYB RHPCYB036ACT000AAAA0 Packaged Heat Pump, 3 ton Nominal, 208-230 V
- Manufacturer: Rheem Manufacturing
- Brand Name: Rheem®
- Part#: USRRHPCYB036ACT000AAAA0
- MPN: RHPCYB036ACT000AAAA0
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Renaissance products are designed with a flexible footprint, thoughtfully engineered for easy, direct replacement of most other manufacturer's products without a roofcurb adapter. These units also boast industry-leading serviceability features, including the slide out, qwik-clean drain pan, the qwik-slide blower assembly, tool-less access to the patented flex-fit filter rack, and lockable external gauge ports. Units meet or exceed ASHRAE 90.1 energy efficiency levels and are rigorously SEET tested to perform reliably in extreme environments, delivering powerful cooling operation up to 125degF.
Rheem® Packaged Heat Pump, Series: Classic® Series, Model: RHPCYB, 3 ton Nominal Capacity, 36000 Btu/hr Cooling BTU Rating, 34200 Btu/hr Heating BTU Rating, 208-230 V, 23/26 A, 3.2 kW, 3/4 hp Rating, 60 Hz, 3 ph, 1050 rpm Rotational Speed, Scroll Compressor, 1200 cfm Rating, 13.4 SEER, HSPF: 6.7, 10.6 EER, Downflow, Horizontal, Vertical Configuration, NPT Connection Type, 3/4 in Connection, R-454B, 1 Stage, 30/35 A Fuse, 78 dBA, Direct Drive, 7.48 sq-ft Face Area, 1-Row Coil Rating, 20 FPI Fins per Inch, 16 x 16 x 2 in Filter, Steel, Galvanized, 125 deg F, 41.38 in H x 79.25 in W x 46.75 in D, Additional Information: Standard Static Constant Torque Drive, Small Commercial Cabinet, Standard Efficiency, CoreCommand™ (Non-Communicating) Control
| Additional Information | : | Standard Static Constant Torque Drive, Small Commercial Cabinet, Standard Efficiency, CoreCommand™ (Non-Communicating) Control |
| Amperage Rating | : | 23/26 A |
| CFM Rating | : | 1200 cfm |
| Coil Rating | : | 7.48 sq-ft Face Area, 1-Row |
| Compressor Type | : | Scroll |
| Configuration | : | Downflow, Horizontal, Vertical |
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Cooling BTU Rating | : | 36000 Btu/hr |
| Dimensions | : | 41.38 in H x 79.25 in W x 46.75 in D |
| Drive Type | : | Direct |
| EER Rating | : | 10.6 |
| Filter Size | : | 16 x 16 x 2 in |
| Finish | : | Galvanized |
| Fins per Inch | : | 20 FPI |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 30/35 A |
| HP Rating | : | 3/4 hp |
| HSPF Rating | : | 6.7 |
| Heating BTU Rating | : | 34200 Btu/hr |
| Material | : | Steel |
| Model | : | RHPCYB |
| Nominal Capacity | : | 3 ton |
| Number of Stages | : | 1 |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-454B |
| Rotational Speed | : | 1050 rpm |
| SEER Rating | : | 13.4 |
| Series | : | Classic® Series |
| Sound Level | : | 78 dBA |
| Temperature Rating | : | 125 deg F |
| Voltage Rating | : | 208-230 V |
| Wattage | : | 3.2 kW |
- Patented flex-fit filter rack and qwik-clean drain pain for quick, easy service and maintenance
- PlusOne® SmartShield™ with patented microchannel defrost system
- Field convertible airflow (downflow and horizontal)
- PlusOne® Diagnostics come standard through CoreCommand™ with easy-to-read and understand fault codes, history, and input/output options to meet building compliance needs
- Optional ClearControl™ includes factory-installed Direct Digital Control (DDC) and sensors for easy connectivity through Modbus®, LonWorks®, or BACnet®
- Available power options: 208-230V / 1 phase / 60 Hz - 208-230V / 3 phase / 60 Hz - 460V / 3 phase / 60 Hz - 575V / 3 phase / 60 Hz
- Limited Warranty (Commercial Applications): Parts - 1 Year Compressor - 5 Years. Additional extended warranty packages available through ProtectionPlus®.
- All units are factory run tested and shipped with R-454B refrigerant charge.
