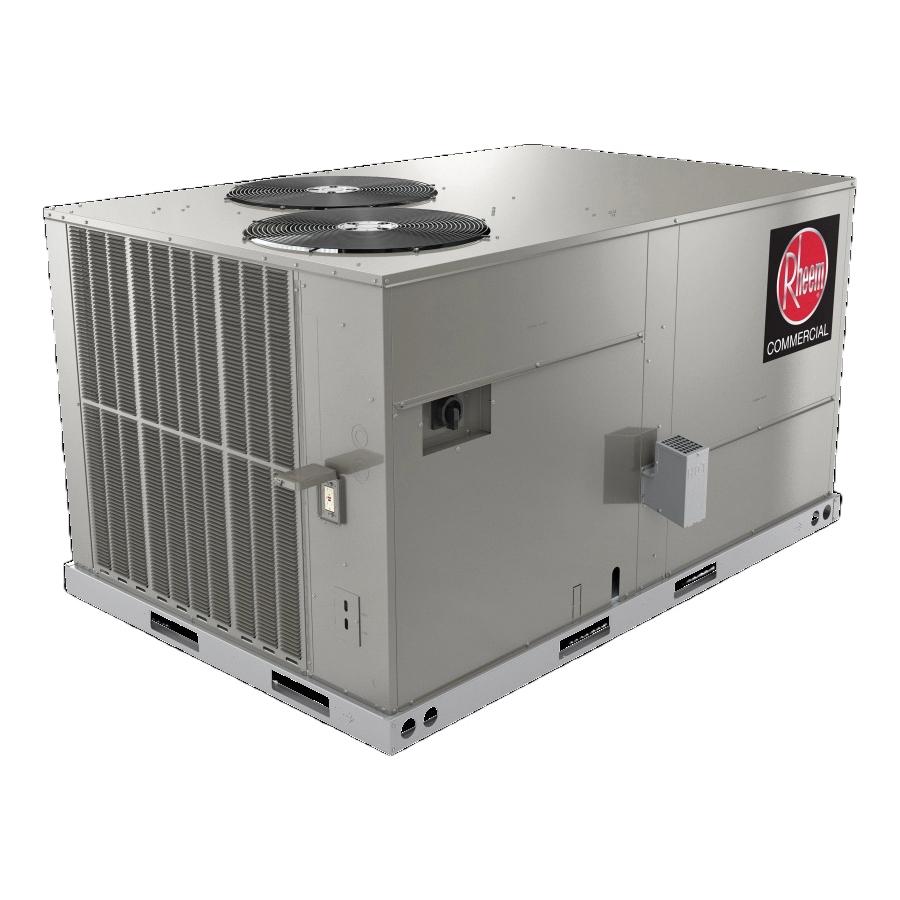

Rheem® Renaissance™ Classic® Series RGEDYB120ACG152AAAA0 Gas/Electric Package Unit, 4000 cfm
- Manufacturer: Rheem Manufacturing
- Brand Name: Rheem®
- Part#: USRRGEDYB120ACG152AAAA0
- MPN: RGEDYB120ACG152AAAA0
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Renaissance products are designed with a flexible footprint, thoughtfully engineered for easy, direct replacement of most other manufacturer's products without a roofcurb adapter. These units also boast industry-leading serviceability features, including the slide out, qwik-clean drain pan, the qwik-slide blower assembly, tool-less access to the patented flex-fit filter rack, and easy-access external gauge ports. Units meet or exceed ASHRAE 90.1 energy efficiency levels and are rigorously SEET tested to perform reliably in extreme environments, delivering powerful cooling operation up to 125degF.
Rheem® Renaissance™ Gas/Electric Package Unit, Series: Classic® Series, 118000 Btu/hr Output BTU Rating, 10.36 kW, 1/3 hp Rating, 1725 rpm Indoor, 1075 rpm Outdoor Rotational Speed, 60 Hz, 3 ph, Scroll Compressor, 4000 cfm Rating, 14.6 IEER Rating, 11 EER, 2 Stage, R-454B, 88 dB Decibel Rating, Belt/Direct Drive, 2-Row 20 FPI 13.8 sq-ft Face Area Indoor, 1-Row 23 FPI 31.5 sq-ft Face Area Outdoor Coil Rating, 3/4 in Drain, (4) 2 x 20 x 20 in Filter, 60 in H x 90-1/8 in W x 59-1/2 in D
| CFM Rating | : | 4000 cfm |
| Coil Rating | : | 2-Row 20 FPI 13.8 sq-ft Face Area Indoor, 1-Row 23 FPI 31.5 sq-ft Face Area Outdoor |
| Compressor Type | : | Scroll |
| Decibel Rating | : | 88 dB |
| Dimensions | : | 60 in H x 90-1/8 in W x 59-1/2 in D |
| Drain Connection | : | 3/4 in |
| Drive Type | : | Belt/Direct |
| EER Rating | : | 11 |
| Filter Size | : | (4) 2 x 20 x 20 in |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/3 hp |
| IEER Rating | : | 14.6 |
| Number of Stages | : | 2 |
| Output BTU Rating | : | 118000 Btu/hr |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-454B |
| Rotational Speed | : | 1725 rpm Indoor, 1075 rpm Outdoor |
| Series | : | Classic® Series |
| Wattage | : | 10.36 kW |
- Optional hot gas reheat (HumidiDry®) available on all models for tighter humidity control and better comfort
- Patented flex-fit filter rack and qwik-clean drain pain for quick, easy service and maintenance
- PlusOne® Diagnostics come standard through CoreCommand™ with easy-to-read and understand fault codes, history, and input/output options to meet building compliance needs
- Optional ClearControl™ includes factory-installed Direct Digital Control (DDC) and sensors for easy connectivity through Modbus®, LonWorks®, or BACnet®
- Available power options: 208-230V / 3 phase / 60 Hz, 460V / 3 phase / 60 Hz, 575V / 3 phase / 60 Hz
- Limited Warranty (Commercial Applications): Parts - 1 Year, Compressor - 5 Years, Standard Heat Exchanger - 10 Years, Stainless Steel Heat Exchanger - 20 Years, Additional extended warranty packages available through ProtectionPlus®
- All units are factory run tested and shipped with R-454B refrigerant charge
