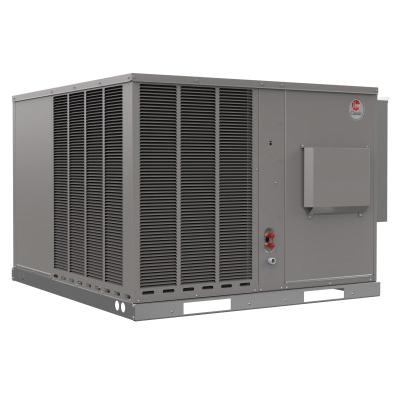

Rheem® Endeavor® Line RGEAYB Classic® Series 024AJT041/X RGEAYB024AJT041NA Packaged Gas Electric Unit, 208/230 V, 19 A

The Rheem Endeavor Line Classic Series RGEAYB Residential Packaged Gas Electric Unit frees up valuable space inside the home by providing both heating and cooling in one outdoor unit - providing convenient, year-round comfort.

Rheem® Packaged Gas Electric Unit, Series: RGEAYB Classic® Series, Model: 024AJT041/X, 24000 Btu/hr Input BTU Rating, 32000 Btu/hr Output BTU Rating, 208/230 V, 19 A, 2.01 kW, 1/3 hp Rating, 1050 rpm Rotational Speed, 60 Hz, 1 ph, Scroll Compressor, 800/810 cfm Rating, 10.6 EER, 13.4 SEER, 81 % AFUE, 1.975 ton Tonnage, 2 Burners, 1 Stage, R-454B, 77 dB Decibel Rating, Ducted Vent, Ducted or Ductless, Direct Spark Ignition, Direct Drive, 3.54 sq-ft Face Area, 1-Row, 20 FPI Coil Rating, 1/2 in Connection, 3/4 in Drain, 24 x 24 x 1 in Filter, 25 A Fuse, 82 % Steady State Efficiency, 25 to 55 deg F, 35.94 in H x 47.5 in W x 52.44 in D

• Scroll Compressors on all models: Provides maximum efficiency and quiet operation.
• MicroChannel Evaporator and Condenser Coil: Delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils. All aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential. It is easier to clean and has a more robust surface.
• Thermal Expansion Valves: Standard on all models for precise superheat control, reliability, and energy efficiency at all operating conditions.
• High Pressure Control: Standard on all models for refrigerant component protection and reliability.
• Filter Drier: Standard on all models
• 100% Factory Run Tested.
• PlusOne® Ignition System: Proven Direct Spark Ignition System (DSI) for reliability and longevity.
• PlusOne® Refrigerant Detection System™1: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected.
• Rugged Base Rail: For improved installation and handling.
• Easily Accessible Control Box, Furnace Compartment and Blower Section with Slide-Out Blower.
• Slide and Down Discharge Options Available: All models are shipped ready for horizontal applications.
• Double Sloped Evaporator Coil Drain Pan: Assures all water is removed from the unit to improve indoor air quality.
• Louvered Condenser Compartment: Protects the coil against yard hazards and/or weather extremes.
• Supply and Return Air Openings: Feature a one-inch-tall flange to prevent water migration into the ductwork.
• Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants with only minimal changes to system installation. For us, this is another step toward our continued sustain - ability goal of reducing greenhouse gas emissions, while still delivering an exceptional level if energy efficient, dependable comfort.
