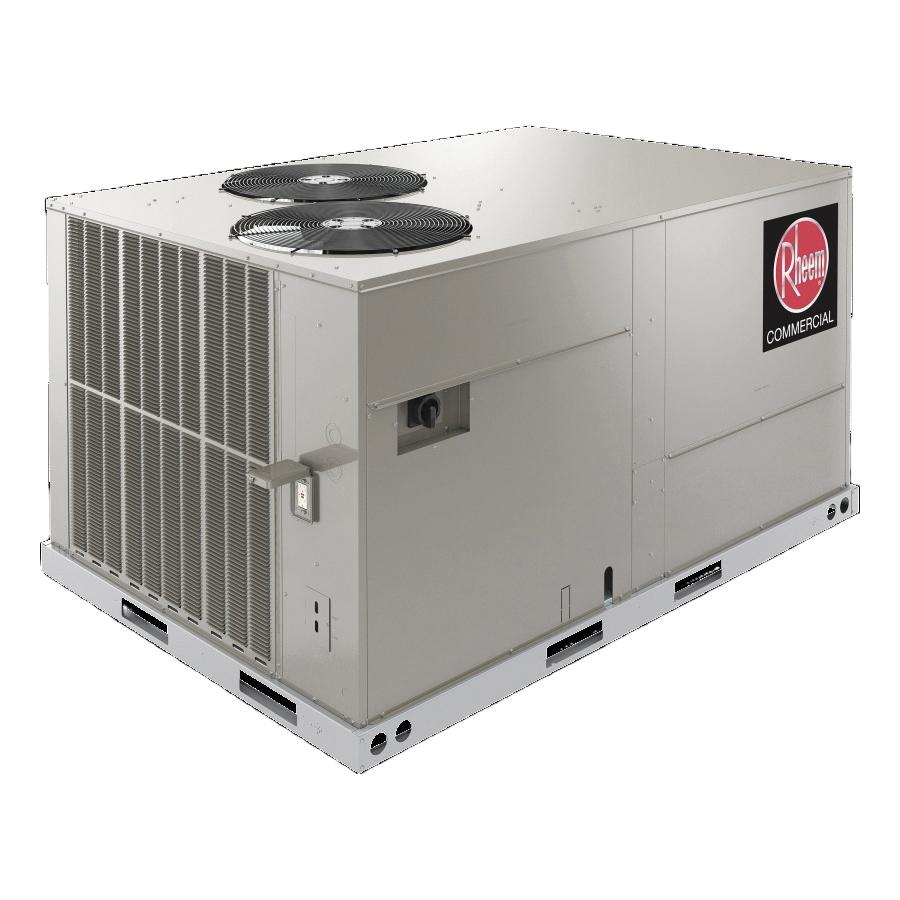

Rheem® Renaissance™ Classic® Series RACDYB150ACG000AAAA0 Packaged Air Conditioner, 148000 Btu/hr Cooling BTU, 5000 cfm
- Manufacturer: Rheem Manufacturing
- Brand Name: Rheem®
- Part#: USRRACDYB150ACG000AAAA0
- MPN: RACDYB150ACG000AAAA0
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Renaissance products are designed with a flexible footprint, thoughtfully engineered for easy, direct replacement of most other manufacturer's products without a roofcurb adapter. These units also boast industry-leading serviceability features, including the slide out, qwik-clean drain pan, the qwik-slide blower assembly, tool-less access to the patented flex-fit filter rack, and lockable external gauge ports. Units meet or exceed ASHRAE 90.1 energy efficiency levels and are rigorously SEET tested to perform reliably in extreme environments, delivering powerful cooling operation up to 125degF.
Rheem® Renaissance™ Packaged Air Conditioner, Series: Classic® Series, 148000 Btu/hr Cooling BTU Rating, 13.15 kW, 3/4 hp Rating, 1725 rpm Indoor, 1100 rpm Outdoor Rotational Speed, 60 Hz, 3 ph, Tandern Scroll Compressor, 5000 cfm Rating, 14 IEER Rating, 10.8 EER, 2 Indoor, 1 Outdoor Speed, 2 Stage, R-454B, 88 dB, Belt/Direct Drive, 2-Row 18 FPI 13.8 sq-ft Face Area Indoor, 1-Row 23 FPI 31.5 sq-ft Face Area Outdoor Coil Rating, (4) 2 x 20 x 25 in Filter, 60 in H x 90-1/8 in W x 59-1/2 in D
| CFM Rating | : | 5000 cfm |
| Coil Rating | : | 2-Row 18 FPI 13.8 sq-ft Face Area Indoor, 1-Row 23 FPI 31.5 sq-ft Face Area Outdoor |
| Compressor Type | : | Tandern Scroll |
| Cooling BTU Rating | : | 148000 Btu/hr |
| Dimensions | : | 60 in H x 90-1/8 in W x 59-1/2 in D |
| Drive Type | : | Belt/Direct |
| EER Rating | : | 10.8 |
| Filter Size | : | (4) 2 x 20 x 25 in |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3/4 hp |
| IEER Rating | : | 14 |
| Number of Speeds | : | 2 Indoor, 1 Outdoor |
| Number of Stages | : | 2 |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-454B |
| Rotational Speed | : | 1725 rpm Indoor, 1100 rpm Outdoor |
| Series | : | Classic® Series |
| Sound Level | : | 88 dB |
| Wattage | : | 13.15 kW |
- Optional hot gas reheat (HumidiDry®) available on all models for tighter humidity control and better comfort
- Patented flex-fit filter rack and qwik-clean drain pain for quick, easy service and maintenance
- PlusOne® Diagnostics come standard through CoreCommand™ with easy-to-read and understand fault codes, history, and input/output options to meet building compliance needs
- Optional ClearControl™ includes factory-installed Direct Digital Control (DDC) and sensors for easy connectivity through Modbus®, LonWorks®, or BACnet®
- Available power options: 208-230V / 3 phase / 60 Hz, 460V / 3 phase / 60 Hz, 575V / 3 phase / 60 Hz
- Limited Warranty (Commercial Applications): Parts - 1 Year, Compressor -5 Years, Additional extended warranty packages available through ProtectionPlus®
- All units are factory run tested and shipped with R-454B refrigerant charge
