Panasonic CS-Z12AKUAW PSNCS-Z12AKUAW
  1. pin-int

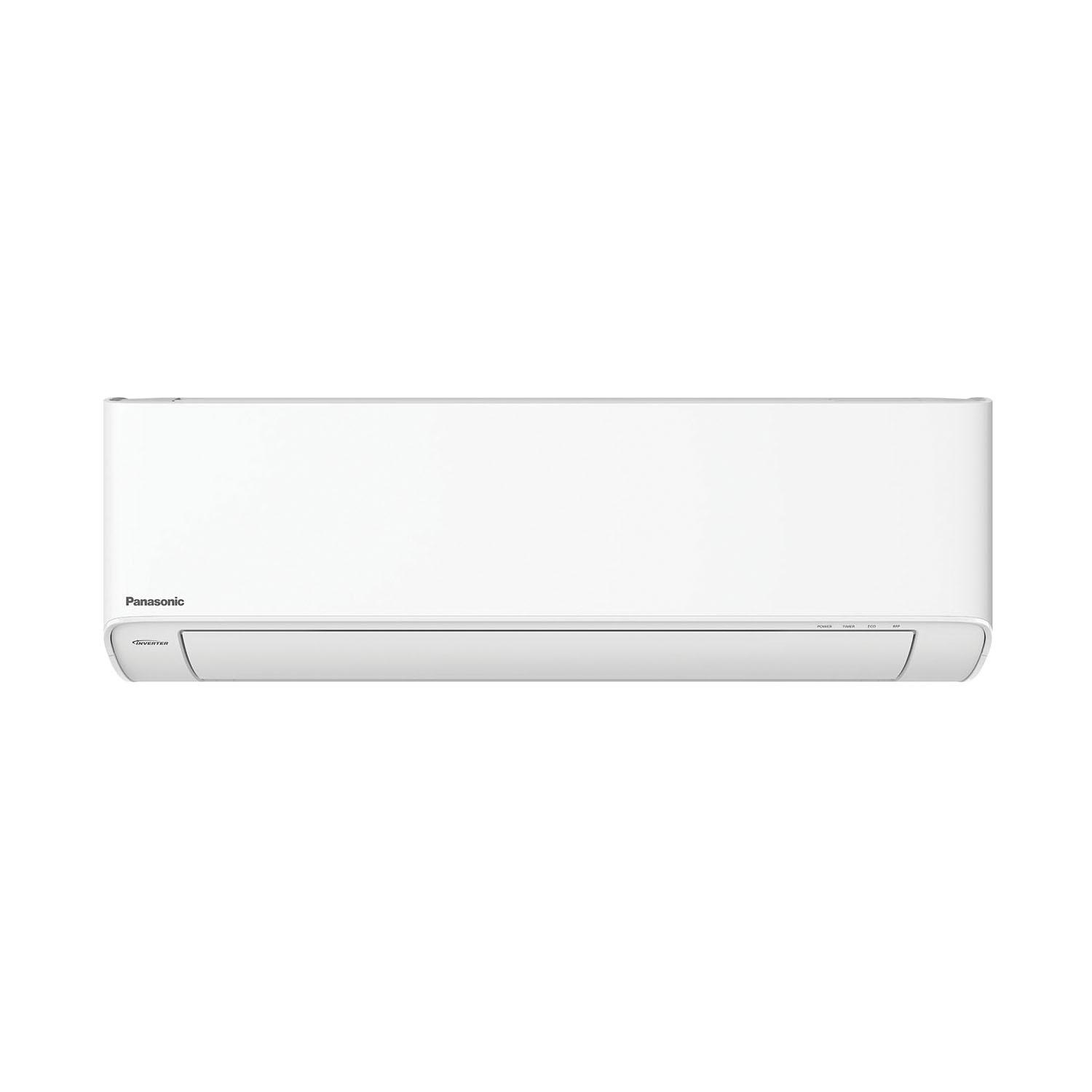

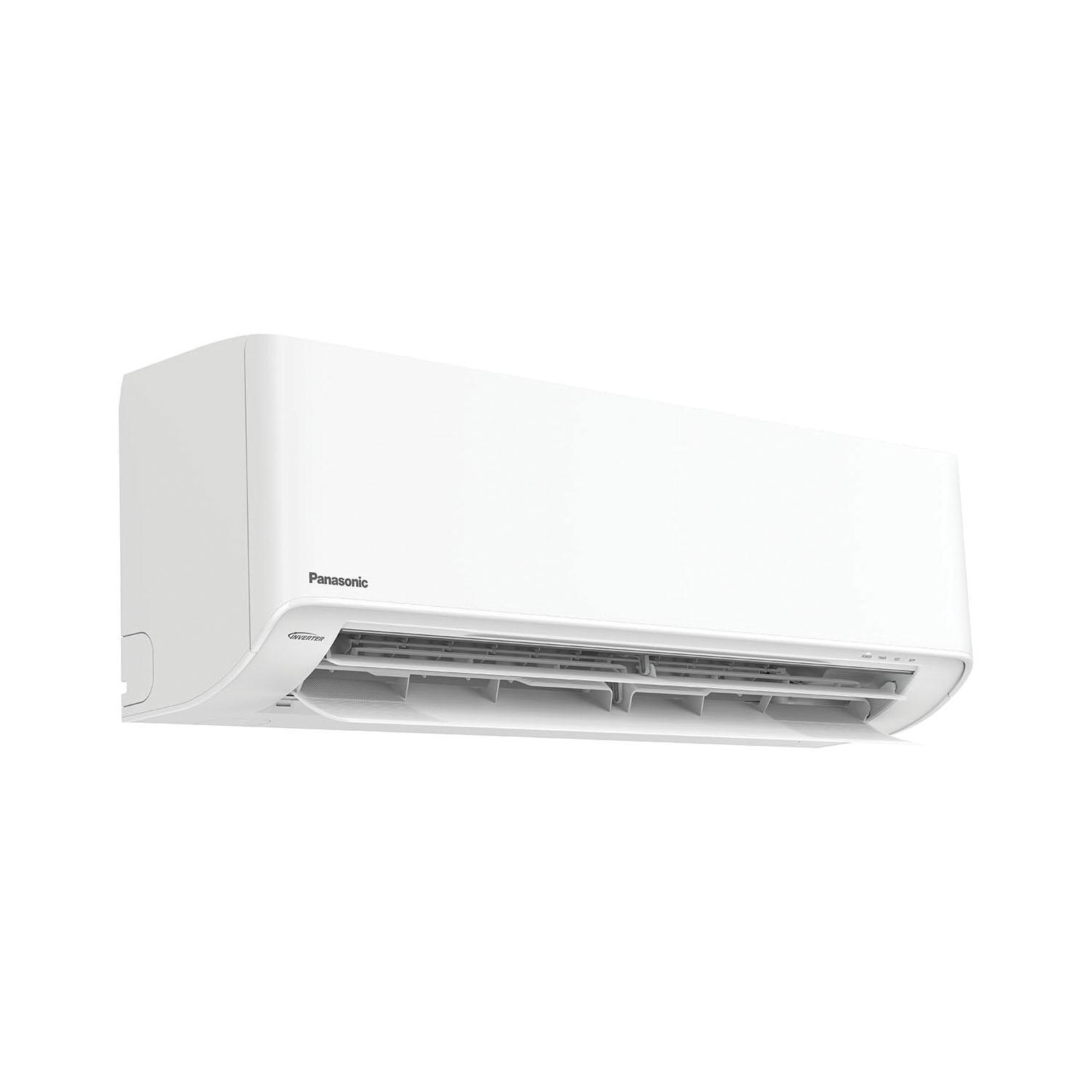

Panasonic EXTERIOS® CS-Z12AKUAW Multi-Split Indoor Unit, 208/230 V, 8.9 A, 1 ph

Panasonic EXTERIOS® CS-Z12AKUAW Multi-Split Indoor Unit, 208/230 V, 8.9 A, 1 ph

  • Manufacturer: Panasonic Corporation
  • Brand Name: Panasonic
  • Part#: PSNCS-Z12AKUAW
  • MPN: CS-Z12AKUAW
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The Panasonic EXTERIOS® Z series is a wall mounted heating and cooling mini-split heat pump. AI ECO intelligently balances energy savings and comfort. With great energy efficiency and -26degC (-15degF) heating operation, this model is often selected for rebate programs and cold climate solutions.

Panasonic Multi-Split Indoor Unit, Z Series, Model: Z12AKUA, 208/230 V, 8.9 A, 800 W Cooling, 790 W Heating, 60 Hz, 1 ph, 11500 Btu/hr Cooling, 12000 Btu/hr Heating, 430 cfm Cool, 460 cfm Heat, 14.35 EER Rating, 25 SEER, 8.9/11.7 HSPF, Flared Connection Type, 20 A Fuse Rating, 2-Row, 21 FPI Coil, 44 dBA Sound Level, Wall Mounting, Powder-Coated, -0.04 to 114.8 deg F Cooling, -14.8 to 75.2 deg F Heating, 9-1/32 in Overall Length, 34-9/32 in Overall Width, 11-5/8 in Overall Height, Additional Information: R-32 Refrigerant Type

Additional Information      :      R-32 Refrigerant Type
Amperage Rating      :      8.9 A
BTU Rating      :      11500 Btu/hr Cooling, 12000 Btu/hr Heating
CFM Rating      :      430 cfm Cool, 460 cfm Heat
Coil Rating      :      2-Row, 21 FPI
Connection Type      :      Flared
EER Rating      :      14.35
Finish      :      Powder-Coated
Frequency Rating      :      60 Hz
Fuse Rating      :      20 A
HSPF Rating      :      8.9/11.7
Model      :      Z12AKUA
Mounting Type      :      Wall
Overall Height      :      11-5/8 in
Overall Length      :      9-1/32 in
Overall Width      :      34-9/32 in
Phase      :      1 ph
Power Rating      :      800 W Cooling, 790 W Heating
SEER Rating      :      25
Series      :      Z Series
Sound Level      :      44 dBA
Temperature Rating      :      -0.04 to 114.8 deg F Cooling, -14.8 to 75.2 deg F Heating
Voltage Rating      :      208/230 V
  • Indoor unit: CS-Z12AKUAW / Outdoor unit: CU-XZ12AKUAC
  • The indoor unit CS-Z12AKUAW can also be used for Multi-Zone Installations
  • -26 degC (-15 degF) Cold climate heating operation
  • R32 Refrigerant for zero impact on the ozone layer
  • Wireless remote control included (New modern design)
  • AI ECO intelligently balances energy savings and comfort
  • Fireplace function
  • Base pan heater included
  • ENERGY STAR® Cold Climate Certified
