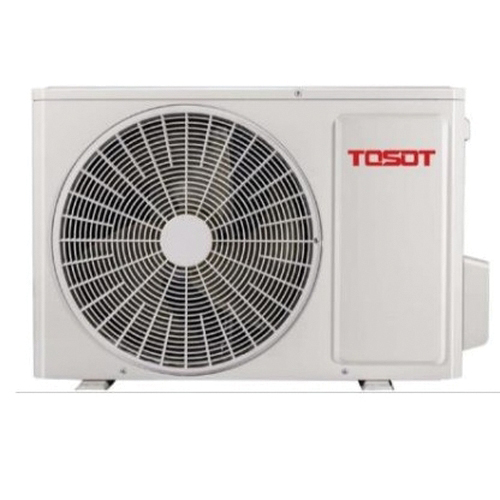

TOSOT TW12HXCA5DO Outdoor Unit, 208/230 V, 6.7 A Cooling, 7.4 A Heating, 12000 Btu/hr Cooling, 1 ph
- Manufacturer: Gree Electric Appliances
- Brand Name: TOSOT
- Part#: TOSTW12HXCA5DO
- MPN: TW12HXCA5DO
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
TOSOT Outdoor Unit, 208/230 V, 6.7 A Cooling, 7.4 A Heating, 30 W, 60 Hz, 1 ph Phase, 12000 Btu/hr Heating, 12000 Btu/hr Cooling, 10.05 EER Rating, 17.5 SEER, 10 HSPF, Connection Type: Flared, DC Inverter, Rotary Compressor, R-410A Refrigerant, 1/4 in Liquid Line, 3/8 in Suction Line, 15 A Fuse Rating, 48 dBA Heating Sound Level, 48 dBA Cooling Sound Level, Wall Mounting, -13 to 75 deg F Heating Operating Temperature, 0 to 115 deg F Cooling Operating Temperature, 26-37/64 in Overall Length, 11-7/32 in Overall Width, 21-27/32 in Overall Height, Additional Information: 17.5 SEER2, 10.05 EER2
| Additional Information | : | 17.5 SEER2, 10.05 EER2 |
| Amperage Rating | : | 6.7 A Cooling, 7.4 A Heating |
| Compressor Type | : | DC Inverter, Rotary |
| Connection Type | : | Flared |
| Cooling BTU Rating | : | 12000 Btu/hr |
| Cooling Operating Temperature | : | 0 to 115 deg F |
| Cooling Sound Level | : | 48 dBA |
| EER Rating | : | 10.05 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HSPF Rating | : | 10 |
| Heating BTU Rating | : | 12000 Btu/hr |
| Heating Operating Temperature | : | -13 to 75 deg F |
| Heating Sound Level | : | 48 dBA |
| Liquid Line Size | : | 1/4 in |
| Mounting Type | : | Wall |
| Overall Height | : | 21-27/32 in |
| Overall Length | : | 26-37/64 in |
| Overall Width | : | 11-7/32 in |
| Phase | : | 1 ph |
| Power Rating | : | 30 W |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 17.5 |
| Suction Line Size | : | 3/8 in |
| Voltage Rating | : | 208/230 V |
Specification Sheet
