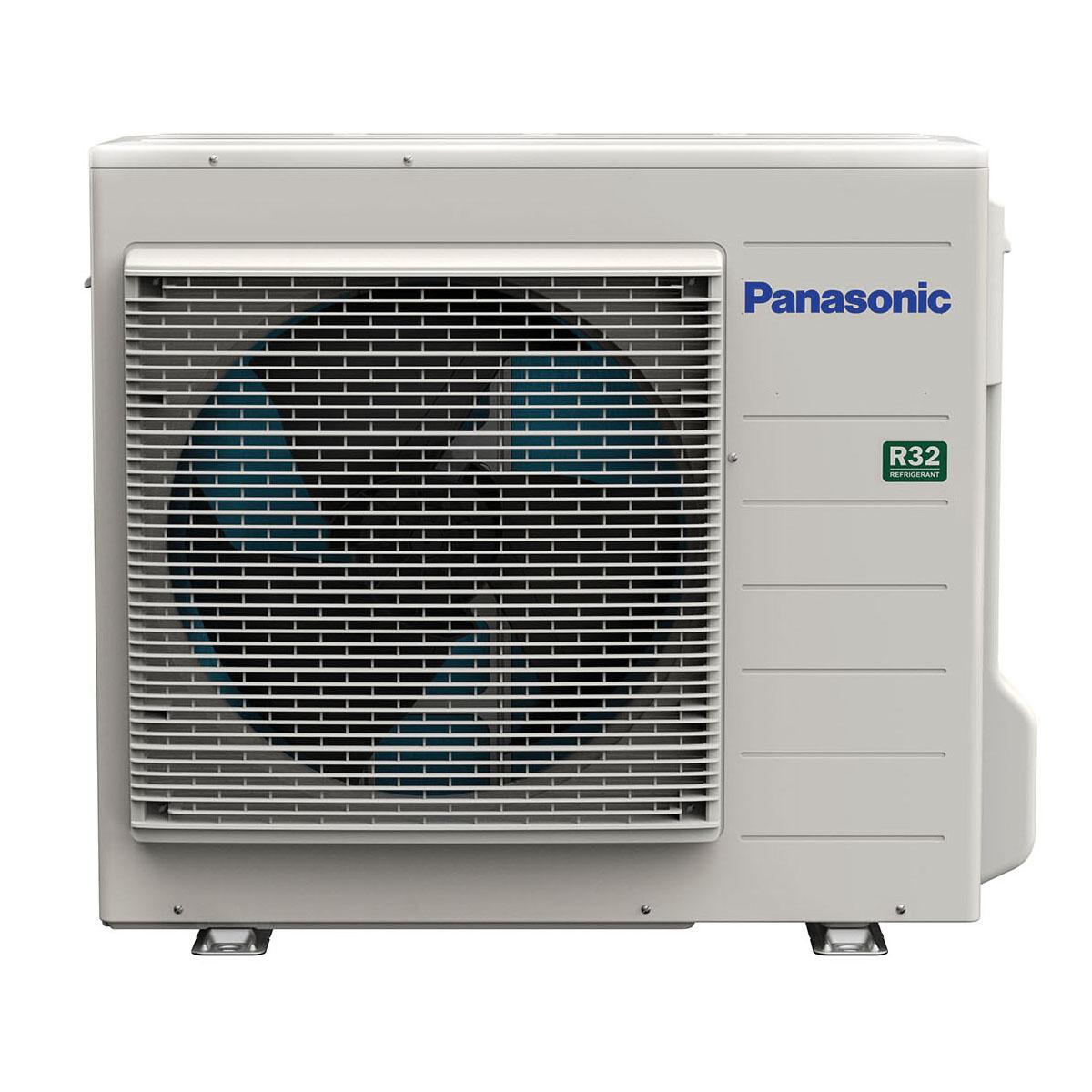

Panasonic ClimaPure™ CU-XZ24AKUAC Single-Split Outdoor Unit, 208/230 V, 13.6 A, 24000 Btu/hr Cooling, 1 ph
- Manufacturer: Panasonic Corporation
- Brand Name: Panasonic
- Part#: PSNCU-XZ24AKUAC
- MPN: CU-XZ24AKUAC
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Ductless heating and air conditioning systems provide optimal comfort along with the reduced energy consumption that comes with zoned temperature control. The new XZ ductless system features an improved nanoe™ X - a built-in air and surface purification technology that provides a comfortable environment for everyone.
Panasonic Single-Split Outdoor Unit, XZ Series, Model: XZ24AKUA, 208/230 V, 13.6 A, 2040 W Cooling, 2500 W Heating, 60 Hz, 1 ph, 28800 Btu/hr Heating, 24000 Btu/hr Cooling, 1855 cfm Heating CFM Rating, 2030 cfm Cooling CFM Rating, 11.75 EER Rating, 20.5 SEER, 8.3/11 HSPF, Flared Connection Type, Inverter Driven Hermetic Rotary Compressor, R-32 Refrigerant, 1/4 in Liquid Line, 5/8 in Suction Line, 30 A Fuse Rating, 2-Row, 19 FPI Coil, 54 dBA Heating Sound Level, 53 dBA Cooling Sound Level, Powder-Coated, -14.8 to 75.2 deg F Heating Operating Temperature, -0.04 to 114.8 deg F Cooling Operating Temperature, 12-5/8 in Overall Length, 34-15/32 in Overall Width, 31-5/16 in Overall Height
| Amperage Rating | : | 13.6 A |
| Coil Rating | : | 2-Row, 19 FPI |
| Compressor Type | : | Inverter Driven Hermetic Rotary |
| Connection Type | : | Flared |
| Cooling BTU Rating | : | 24000 Btu/hr |
| Cooling CFM Rating | : | 2030 cfm |
| Cooling Operating Temperature | : | -0.04 to 114.8 deg F |
| Cooling Sound Level | : | 53 dBA |
| EER Rating | : | 11.75 |
| Finish | : | Powder-Coated |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 30 A |
| HSPF Rating | : | 8.3/11 |
| Heating BTU Rating | : | 28800 Btu/hr |
| Heating CFM Rating | : | 1855 cfm |
| Heating Operating Temperature | : | -14.8 to 75.2 deg F |
| Heating Sound Level | : | 54 dBA |
| Liquid Line Size | : | 1/4 in |
| Model | : | XZ24AKUA |
| Overall Height | : | 31-5/16 in |
| Overall Length | : | 12-5/8 in |
| Overall Width | : | 34-15/32 in |
| Phase | : | 1 ph |
| Power Rating | : | 2040 W Cooling, 2500 W Heating |
| Refrigerant Type | : | R-32 |
| SEER Rating | : | 20.5 |
| Series | : | XZ Series |
| Suction Line Size | : | 5/8 in |
| Voltage Rating | : | 208/230 V |
- Indoor unit: CS-XZ24AKUAW / Outdoor unit: CU-XZ24AKUAC
- -26 degC (-15 degF) Cold climate heating operation
- R32 Refrigerant for zero impact on the ozone layer
- Improved nanoe™ X - air and surface purification
- AI ECO intelligently balances energy savings and comfort
- Wireless remote control included (New modern design)
- Improved comfort cloud app
- Built-in Wi-Fi (easy to connect)
- Fireplace function
- Base pan heater included
- ENERGY STAR® Cold Climate Certified
