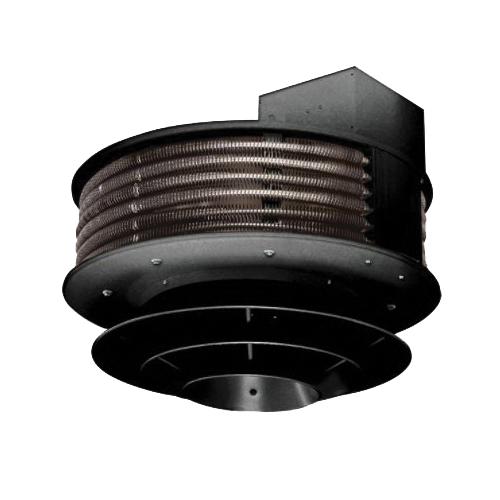

STELPRO OXFORD™ VUH Series VUH5063CCHAR Vertical Unit Heater, 600 V, 50 kW, 3 ph-Phase, Steel
- Manufacturer: Stelpro, Inc
- Brand Name: STELPRO
- Part#: SPOVUH5063C
- MPN: VUH5063CCHAR
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

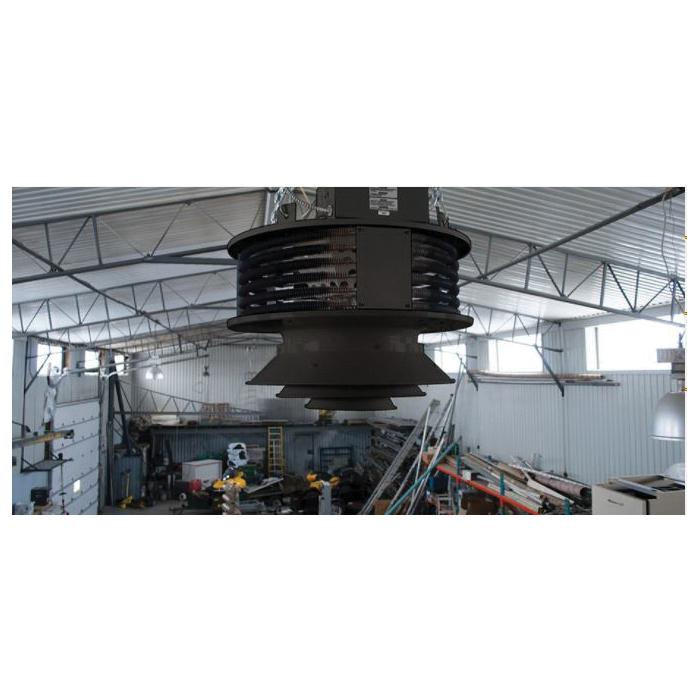

The unit heater that likes to fly high, the VUH stands out for its all out, uncompromising power. Its best feature is that it continuously circulates air by drawing in the hot air mass trapped high up and redirecting it straight down in all directions. This is the ultimate unit heater for large, high ceilinged spaces.
STELPRO OXFORD™ Vertical Unit Heater, Series: VUH Series, 600 V, 4000 cfm CFM Rating, 3 hp, 4 hp HP Rating, 50 kW, 3 ph, Ceiling Mount, 8 ft Mounting Height, Steel, Charcoal, Epoxy Polyester Powder-Coated, 23-3/16 in H x 42 in W
| CFM Rating | : | 4000 cfm |
| Color | : | Charcoal |
| Dimensions | : | 23-3/16 in H x 42 in W |
| Finish | : | Epoxy Polyester Powder-Coated |
| HP Rating | : | 3 hp, 4 hp |
| Material | : | Steel |
| Mounting Height | : | 8 ft |
| Mounting Type | : | Ceiling |
| Phase | : | 3 ph |
| Power Rating | : | 50 kW |
| Series | : | VUH Series |
| Voltage Rating | : | 600 V |
- Accumulated heat recovery system draws in residual hot air and blows it to where it is needed thanks to its side openings
- Fully sealed bearing motor
- Ideal for large areas with high ceilings
- Heavy-duty, 16 ga steel cabinet
- Three sizes of cone diffusers available for better air distribution
- Thermal protection with automatic reset
- Totally enclosed with ball bearings
- Tubular element sheathed with spiral wound fins for improved heat dissipation
- Terminal block for remote fan control
- All units have factory installed contactors
- Four eyebolts for chain suspension
- 240 V control unit
Instruction/Installation Manual
