STELPRO ACWS1000 Series ACWS100018603A Sloped Architectural Cabinet Heater, 347 V, 6000 W, 20476 Btu/hr BTU, Steel
- Manufacturer: Stelpro, Inc
- Brand Name: STELPRO
- Part#: SPOCWS100018603A
- MPN: ACWS100018603A
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

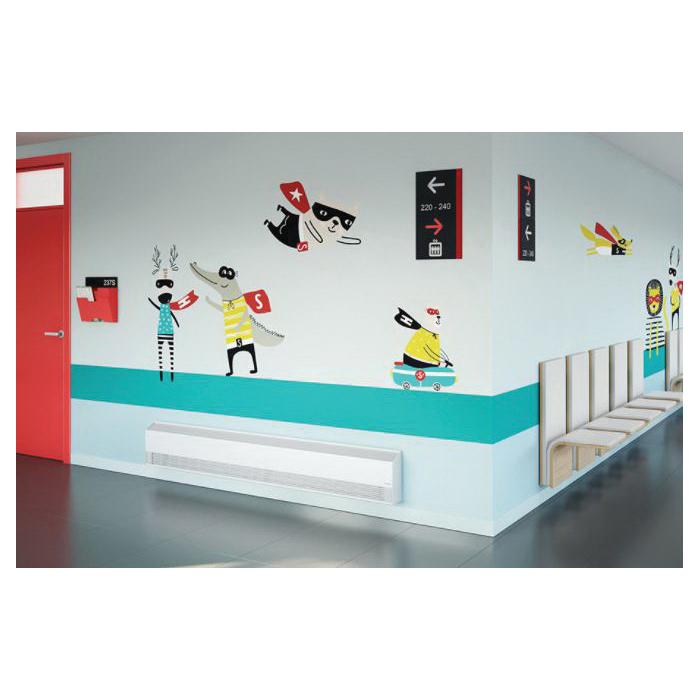

The CWS architectural cabinet is a preferred unit for public institutions or any other commercial location requiring a large heating capacity. Its forward sloping top prevents people from depositing objects on it that could interfere with its efficiency. Finally, its sturdiness, including extruded aluminum grills and high performance have made its reputation. The CWS is often the first choice for exhibition halls, conference centers, libraries and museums.
STELPRO Sloped Architectural Cabinet Heater, Series: ACWS1000 Series, 20476 Btu/hr, 347 V, 6000 W, Surface Mount, 8 ft Mounting Height, Steel, Almond, Epoxy Polyester Powder-Coated, 20 in H x 70-7/8 in L x 5-1/4 in D, Domestic
| BTU Rating | : | 20476 Btu/hr |
| Color | : | Almond |
| Dimensions | : | 20 in H x 70-7/8 in L x 5-1/4 in D |
| Domestic/Import | : | Domestic |
| Finish | : | Epoxy Polyester Powder-Coated |
| Material | : | Steel |
| Mounting Height | : | 8 ft |
| Mounting Type | : | Surface |
| Power Rating | : | 6000 W |
| Series | : | ACWS1000 Series |
| Voltage Rating | : | 347 V |
- Sloped top - keeps the unit from being used as a shelf or bench
- Outstanding heat density
- Extruded aluminum grille serves to enhance the unit's appearance
- 18 ga steel cabinet, 16 ga steel front panel and extruded aluminum grilles with a thickness equivalent to 13 ga
- Front air intake and top air discharge
- Thermal protection with automatic reset
- Full length wireway
- Wiring compartments at both ends of unit
Instruction/Installation Manual
