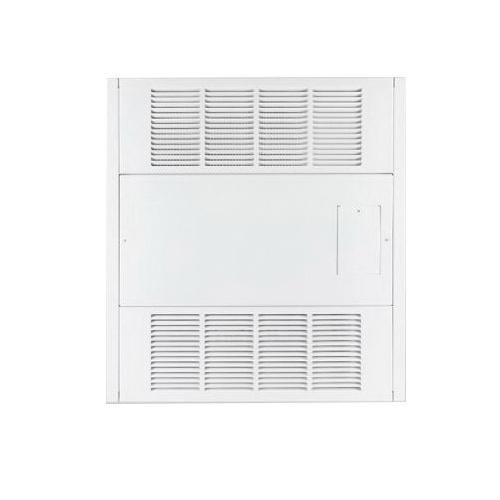

STELPRO ACBH Series ACBH0331CW Cabinet Heater, 347 V, 3 kW, 10238 Btu/hr BTU, 1 ph-Phase, Steel
- Manufacturer: Stelpro, Inc
- Brand Name: STELPRO
- Part#: SPOCBH0331CW
- MPN: ACBH0331CW
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

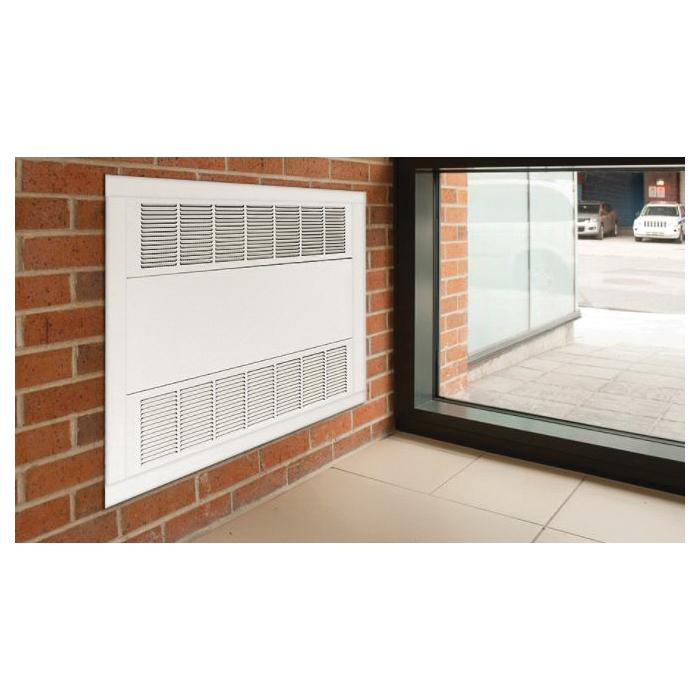

This very reliable and sturdy cabinet heater delivers efficient and plentiful heat, making it suitable for commercial lobbies and other high traffic areas. Its fan generates a powerful and uniform airflow. The unit can be recessed at various depths in the wall or surface-mounted. Finally, if wall installation is not possible, the ACBH cabinet can also be ceiling-mounted.
STELPRO Cabinet Heater, Series: ACBH Series, 10238 Btu/hr, 347 V, 300 cfm CFM Rating, 1 hp, 15 hp HP Rating, 3 kW, 1 ph, 12 ft Mounting Height, Steel, White, Epoxy Polyester Powder-Coated, 26 in H x 24 in L x 10 in D, Domestic
| BTU Rating | : | 10238 Btu/hr |
| CFM Rating | : | 300 cfm |
| Color | : | White |
| Dimensions | : | 26 in H x 24 in L x 10 in D |
| Domestic/Import | : | Domestic |
| Finish | : | Epoxy Polyester Powder-Coated |
| HP Rating | : | 1 hp, 15 hp |
| Material | : | Steel |
| Mounting Height | : | 12 ft |
| Phase | : | 1 ph |
| Power Rating | : | 3 kW |
| Series | : | ACBH Series |
| Voltage Rating | : | 347 V |
- Powerful with big airflow
- Sturdy and durable
- Various adaptable air inlet and outlet configurations
- 18 ga steel cabinet and 16 ga steel front panel
- Powerful motor with squirrel cage blower and time delay relay
- Large variety of airflow configurations which are adaptable on the construction site
- Thermal protection with automatic reset
- High intensity (factory setting)
- Nichrome element produces instant heat
- 240 V control unit
Instruction/Installation Manual
