Ouellet OCA Series OCA18034AMD1 Cabinet Unit Heater, 480 V, 12000 to 18000 W, 40982 to 61473 Btu/hr BTU, 3 ph-Phase

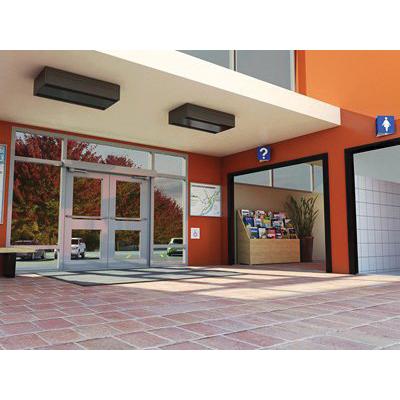

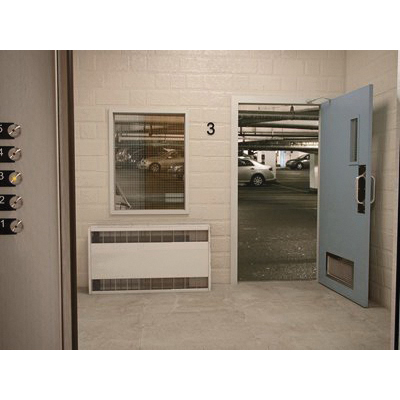

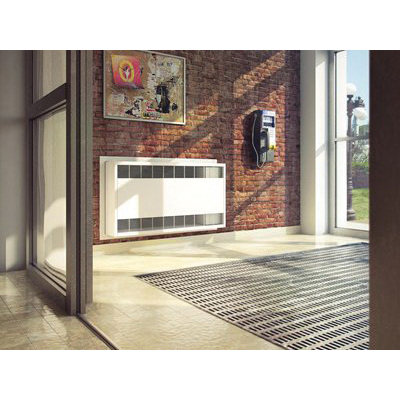

The OCA Series cabinet unit heater offers a wide range of power ratings, voltage and control options. Most installations benefit from the heater's custom advantages. The cabinet unit heater can be mounted on the floor, wall or ceiling. It can also be recessed (wall or ceiling) as required. The fans are powered by two-speed motors (high/low option) with permanently lubricated sleeve bearings for many years of trouble-free service. The blower wheel is mounted directly on the motor shafts, which reduces the noise level. No belts or bearing blocks are required for the blowers. Four cabinet sizes are available.

Ouellet Cabinet Unit Heater, Series: OCA Series, 40982 to 61473 Btu/hr, 480 V, 600 to 750 cfm CFM Rating, 1/15 hp HP Rating, 12000 to 18000 W, 3 ph, 10 ft Mounting Height, Steel, Almond, Epoxy Polyester Powder-Coated, 26 in H x 66 in L x 10 in D

• Insulated casing for noise reduction
• Extruded aluminum bar grilles prevent insertion of foreign objects
• Field adaptable air inlet and outlet
• High limit temperature control with automatic reset
• Durable tubular heating element with fins
• Universal mounting

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Ouellet_KIT_OCA_CR_28AM_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Ouellet_KIT_OCA_CR_28AM_Specification_Sheet.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Ouellet_KIT_OCA_CR_28AM_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Ouellet_KIT_OCA_CR_28AM_Specification_Sheet.pdf
