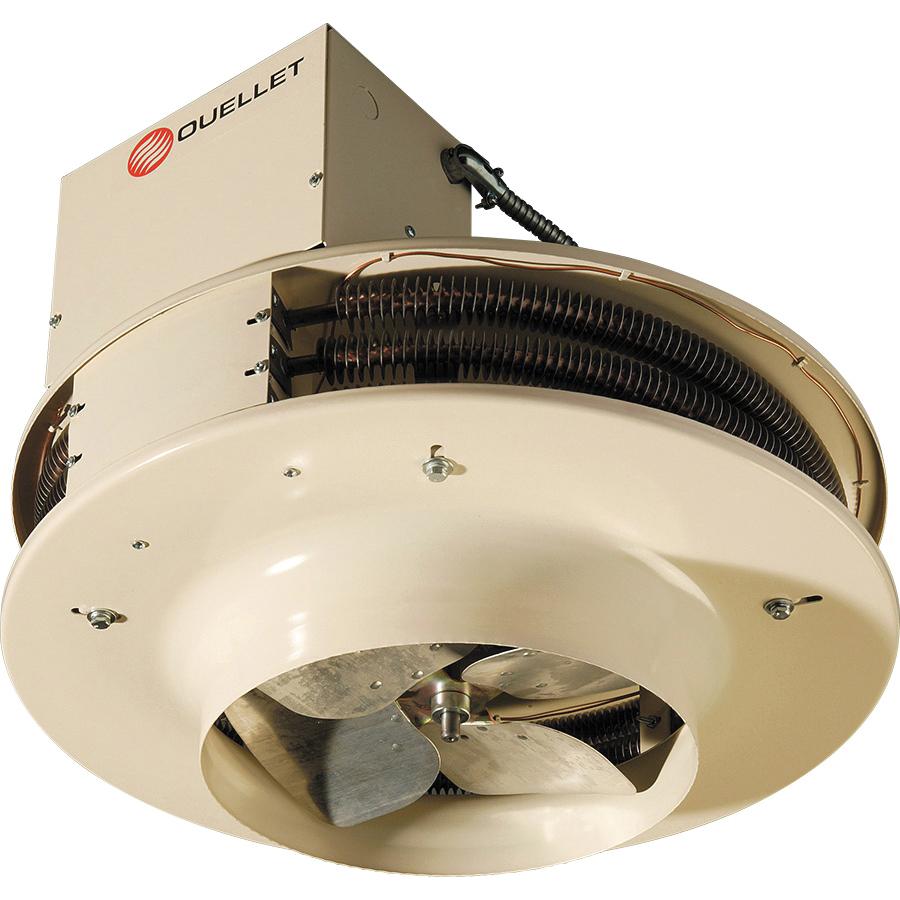

Ouellet OAV Series OAV05007AM Vertical Unit Heater, 347 V, 5 kW, 17060 Btu/hr BTU, 1 ph-Phase, Steel
- Manufacturer: Ouellet
- Brand Name: Ouellet
- Part#: OULOAV05007AM
- MPN: OAV05007AM
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

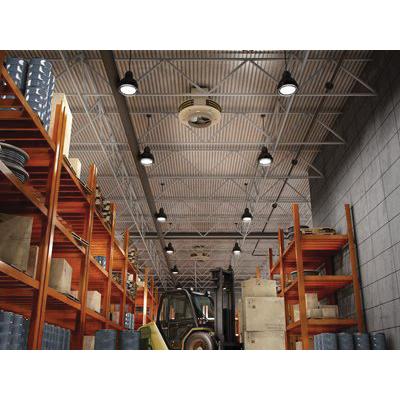

The OAV vertical unit heater is designed to heat buildings with high ceilings. This vertical unit heater can be used to recirculate the warm air accumulated near ceilings. Three optional air diffusers are available to produce various air distribution patterns. The OAV is available from 5 to 60 kW at the usual voltage supplies.
Ouellet Vertical Unit Heater, Series: OAV Series, 17060 Btu/hr, 347 V, 450 cfm CFM Rating, 1/25 hp HP Rating, 5 kW, 1 ph, NPT, 1/2-13, 1050 rpm Rotational Speed, Steel, Almond, Epoxy Polyester Powder-Coated, 85 deg F, 23-1/8 in L x 8 in D
| BTU Rating | : | 17060 Btu/hr |
| CFM Rating | : | 450 cfm |
| Color | : | Almond |
| Connection Size | : | 1/2-13 |
| Connection Type | : | NPT |
| Dimensions | : | 23-1/8 in L x 8 in D |
| Finish | : | Epoxy Polyester Powder-Coated |
| HP Rating | : | 1/25 hp |
| Material | : | Steel |
| Phase | : | 1 ph |
| Power Rating | : | 5 kW |
| Rotational Speed | : | 1050 rpm |
| Series | : | OAV Series |
| Temperature Rating | : | 85 deg F |
| Voltage Rating | : | 347 V |
- Linear high limit temperature control with automatic reset
- Terminal block for remote fan control
- Fan delay - keeps the fan stopped at the beginning to let the heating elements warm-up and keeps the fan going when the heater is stopped to purge heater of residual heat
- Finned tubular heating elements grounded for extra safety
- For high ceilings
Instruction/Installation Manual
