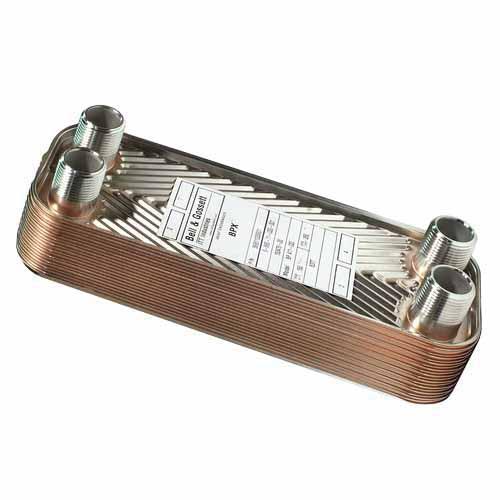

Bell & Gossett BP411-20MT 5-694-11-020-003 Heat Exchanger, 350000 Btu/hr Btu, 316L Stainless Steel, Copper Braze-Plated
- Manufacturer: Xylem
- Brand Name: Bell & Gossett
- Part#: B&G5-694-11-020-003
- MPN: 5-694-11-020-003
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Bell & Gossett Heat Exchanger, Model: BP411-20MT, 350000 Btu/hr, 20 Plates, 1 in, MNPT, 435 psi, 316L Stainless Steel, Copper Braze-Plated, -310 to 450 deg F, 12-1/5 in L x 5-2/5 in W x 3-7/25 in D
| BTU Rating | : | 350000 Btu/hr |
| Connection Size | : | 1 in |
| Connection Type | : | MNPT |
| Dimensions | : | 12-1/5 in L x 5-2/5 in W x 3-7/25 in D |
| Finish | : | Copper Braze-Plated |
| Material | : | 316L Stainless Steel |
| Model | : | BP411-20MT |
| Number of Plates | : | 20 |
| Pressure Rating | : | 435 psi |
| Temperature Rating | : | -310 to 450 deg F |
- B and G type Hydronic BPX brazed plate heat exchangers offer a unique mounting system and the highest level of thermal efficiency and durability in a compact, low cost unit
- The unique integral mounting tabs and connection locations allow for easy installation to any hydronic heating panel without the need or cost of a separate mounting bracket
- The corrugated plate design provides very high heat transfer coefficients, resulting in a more compact design
- The unit's stainless steel plates are vacuum brazed together to form a durable, integral piece that can withstand high pressure and temperature
- High performance
- Compact design
- Solid self-contained unit
- Numerous applications
- 0.0159 gal/Chnl volume
- 0.281 sq-ft surface area
